🔋🚲 250W Cassette Hub Motor Conversion Kit – Plug & Play, Road-Legal Mode

👋 Hello, Welcome to E Bike Power UK.

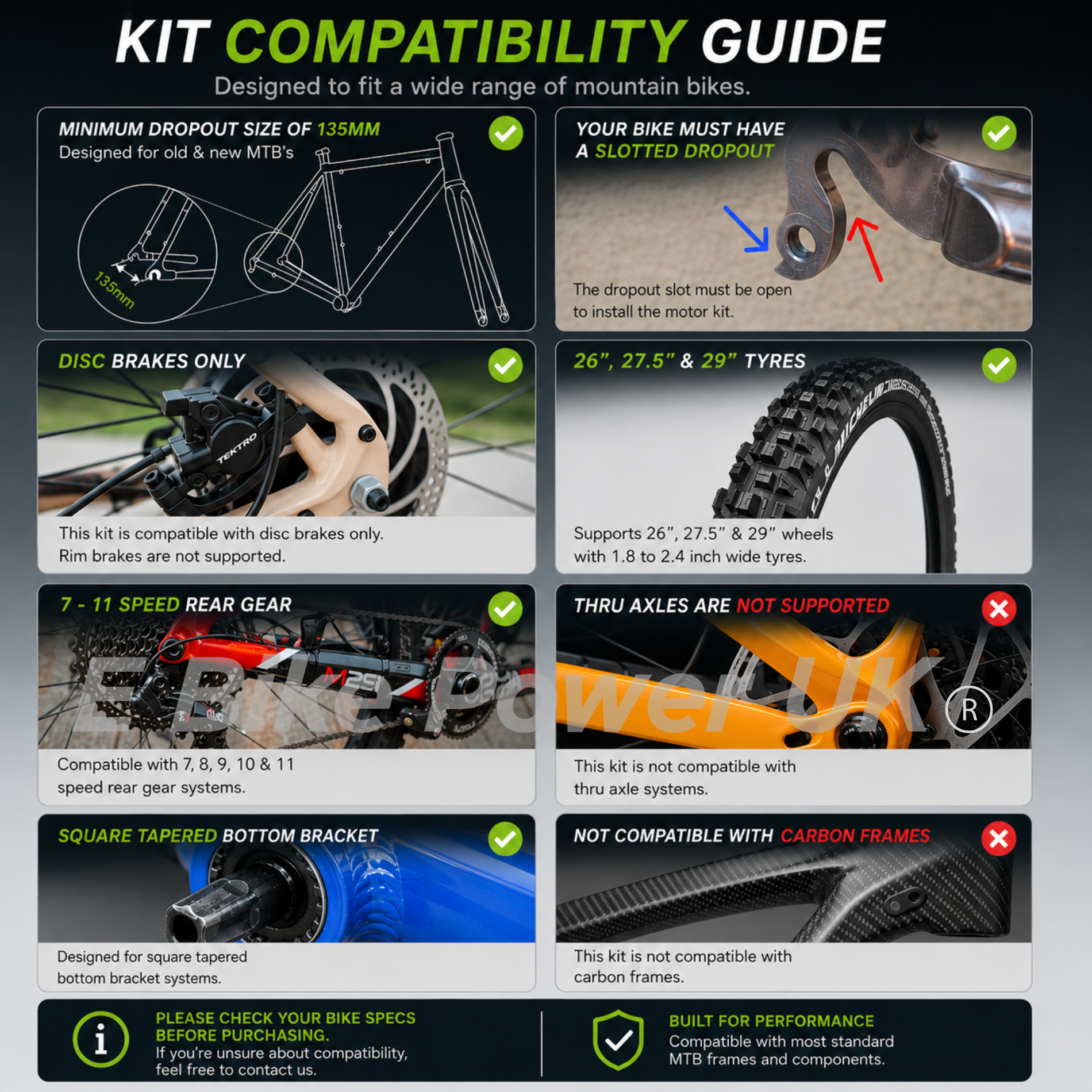

We offer one of the best 250W cassette hub motor conversion kits available for bikes with rear dropouts of ≥135 mm and HG cassette drivetrains (1–11 speed). This kit is designed to be lightweight, compact, strong, and easy to install, while still delivering excellent performance for its class. ⚡ Actual performance depends on rider weight, terrain, and weather.
Typical performance (private land): ~20–25 mph top speed (depends on rider weight/terrain) and ~15–30 miles per charge. For more torque and higher top speed, use a 48V or 52V battery.
UK public roads: Street Mode limits assist to 15.5 mph (25 km/h) with pedal assist only.

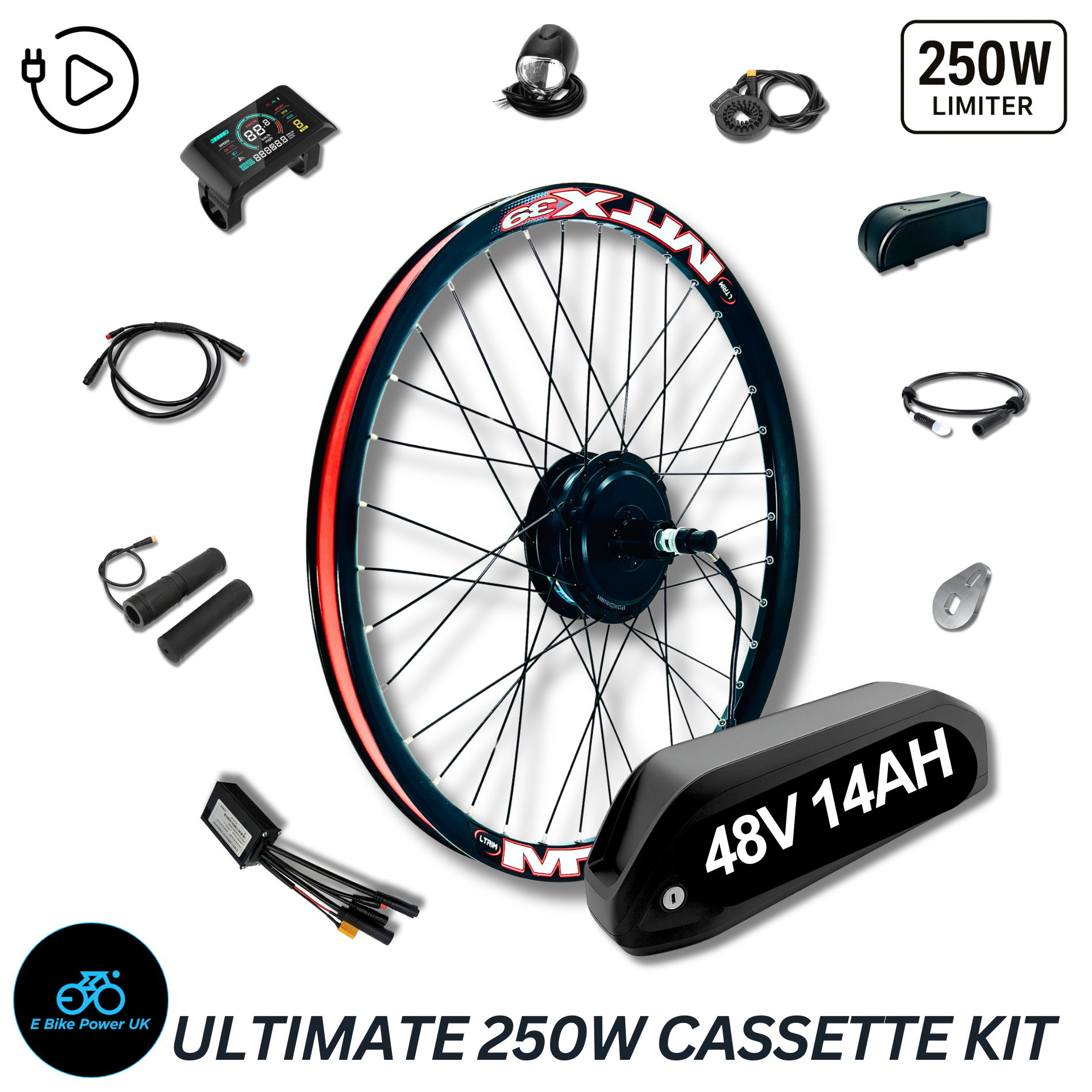

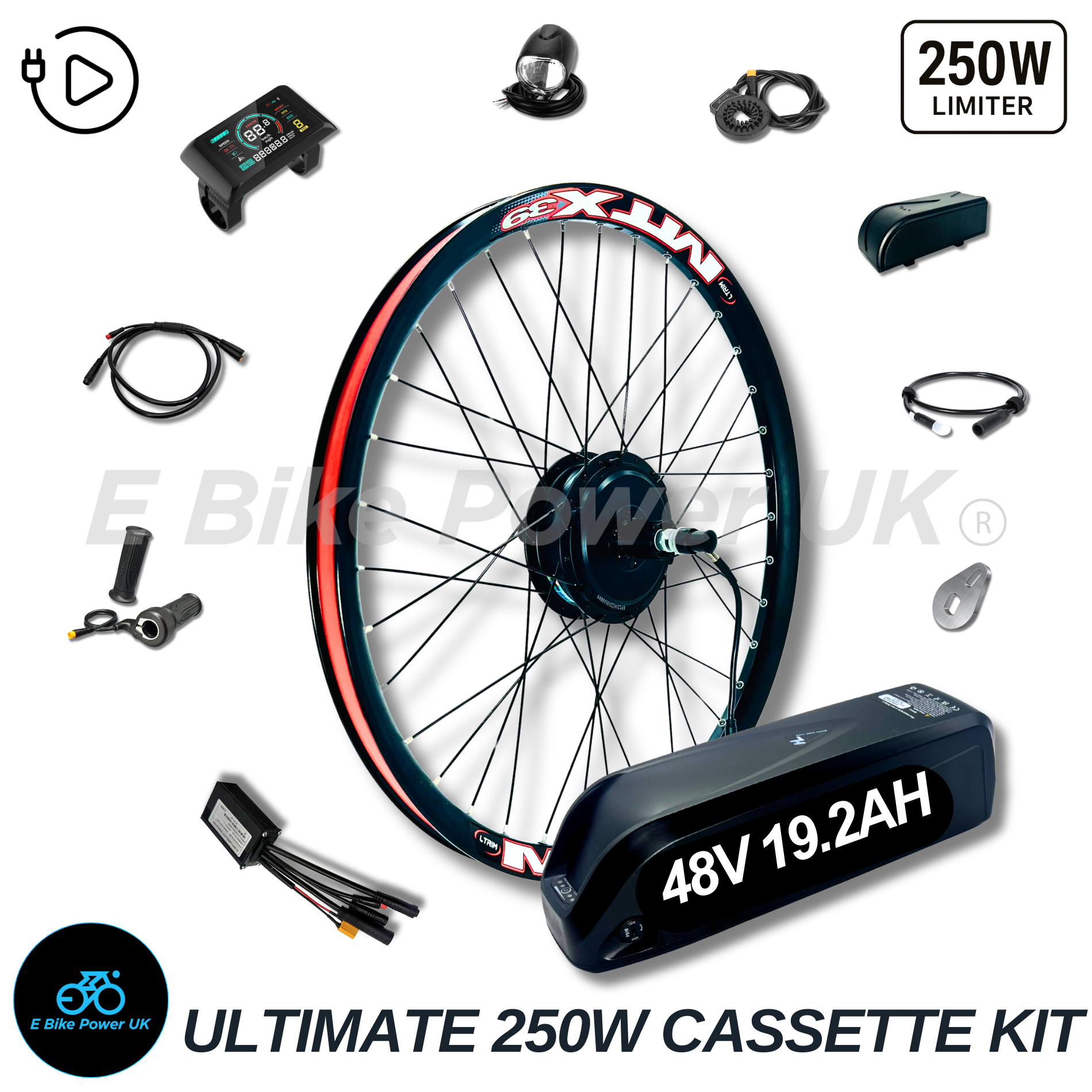

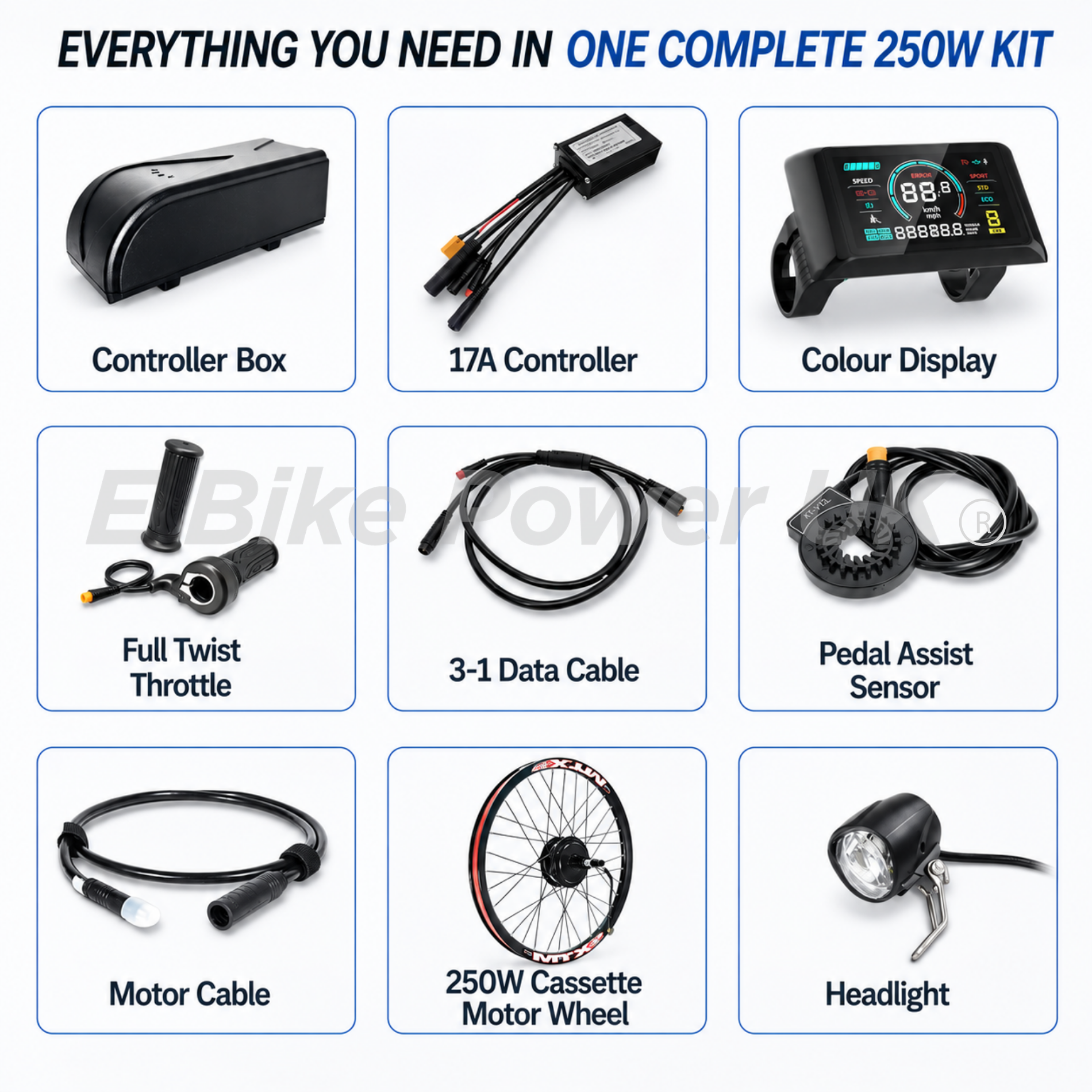

📦 What’s in the Box

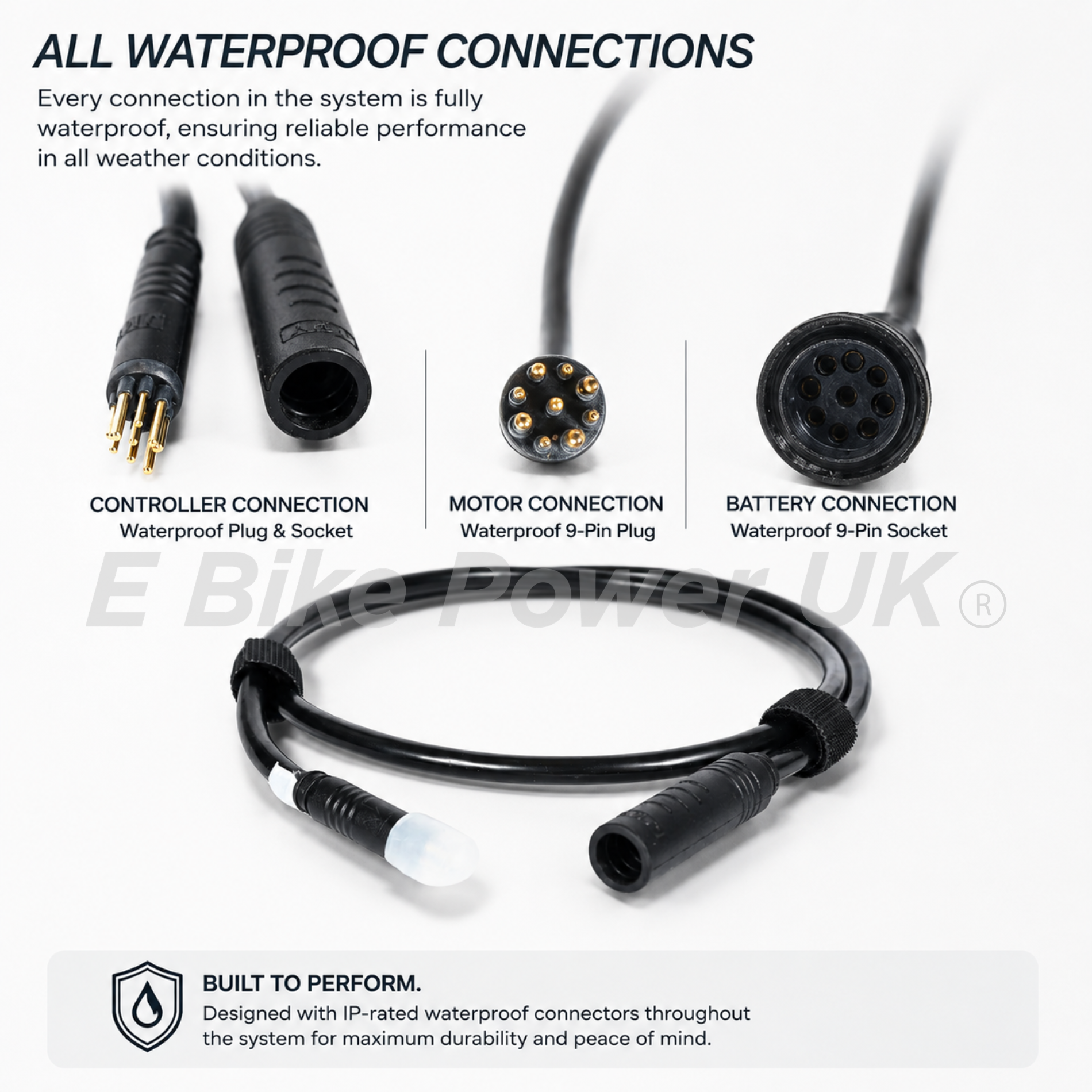

• ✅ All plug-and-play waterproof connections

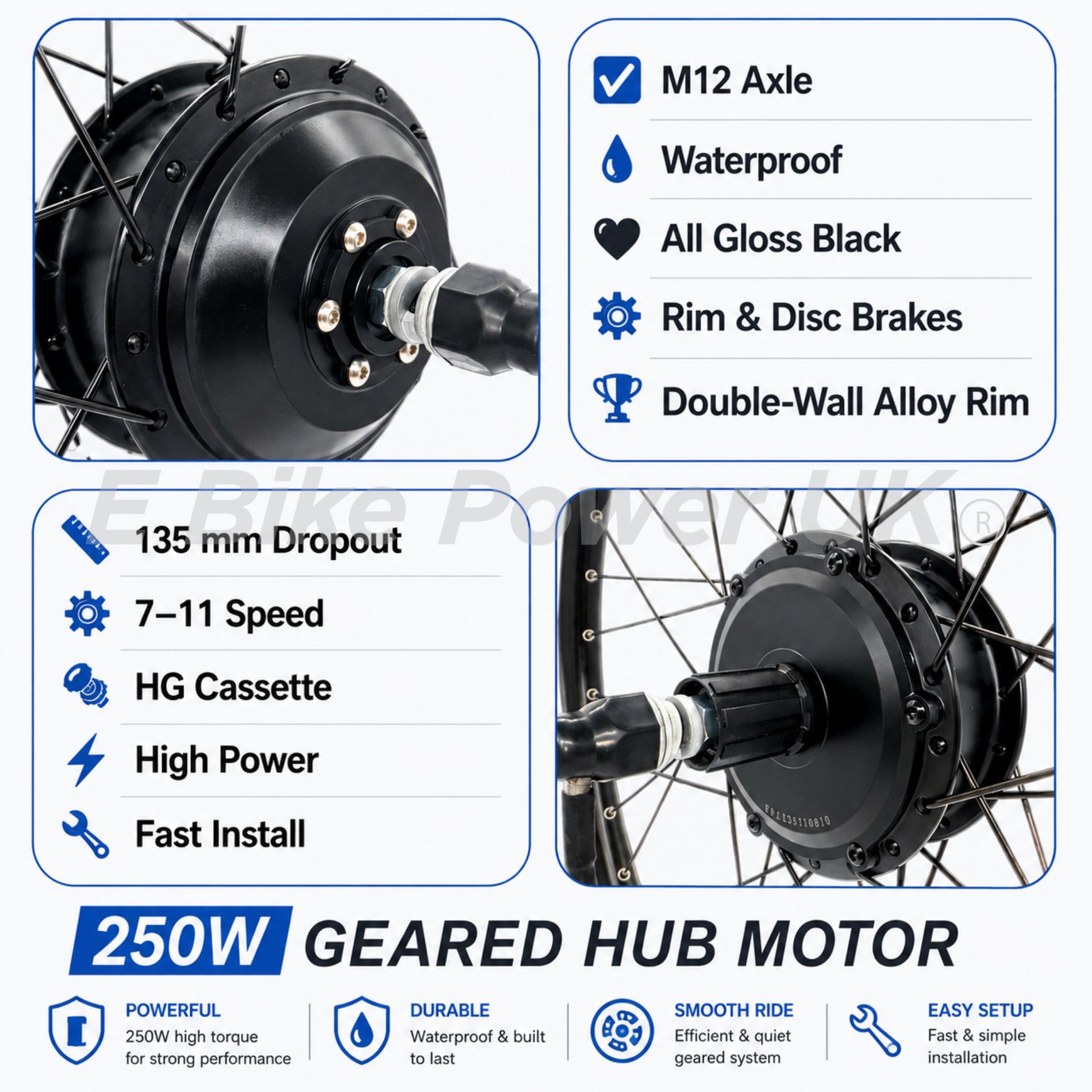

• ✅ 250W brushless geared rear hub motor (HG cassette body, fits 135 mm dropout)
• ✅ HG-style cassette fitment compatible with 1–11 speed setups

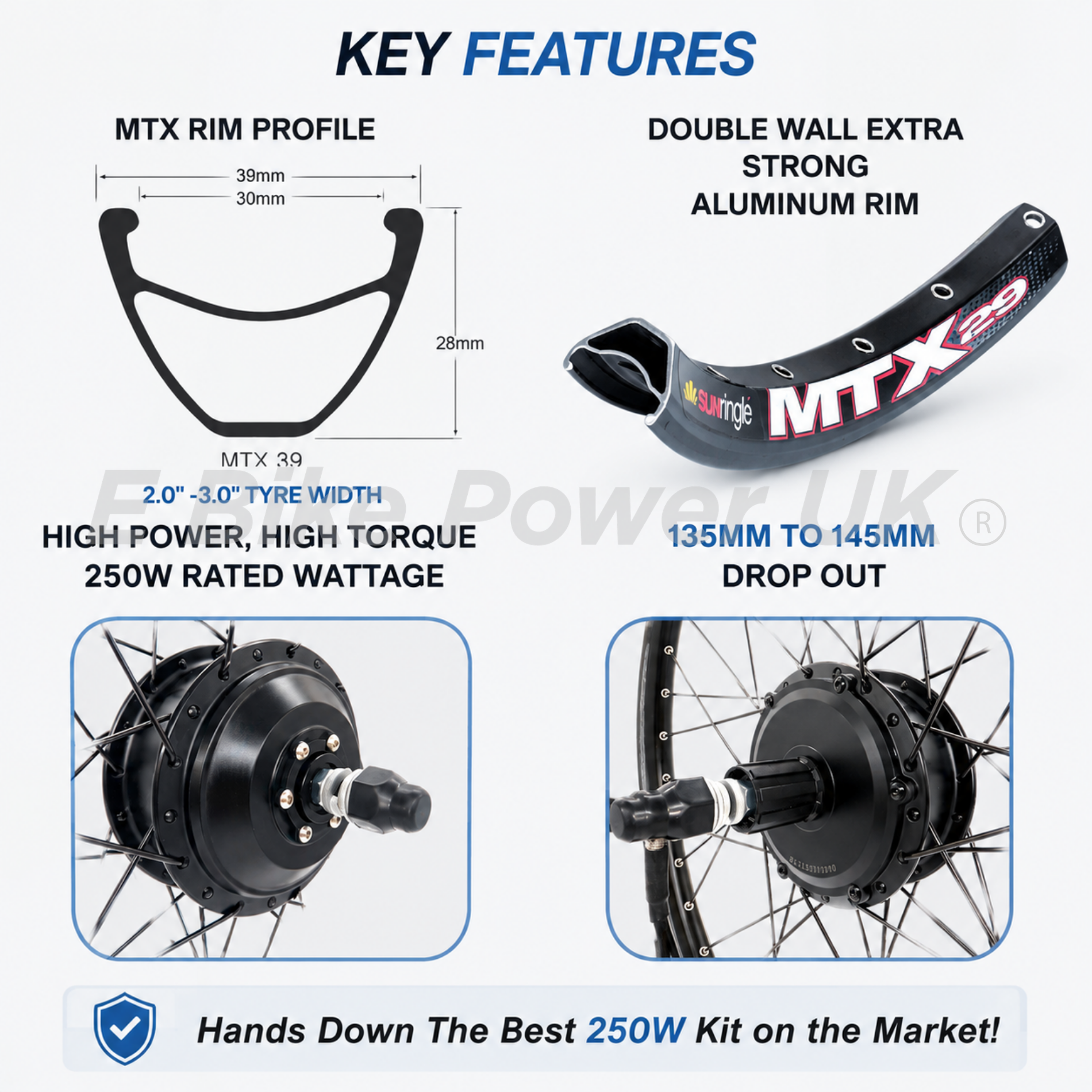

• ✅ All-black MTX39 lightweight double-wall aluminium rim
• ✅ Disc Brakes ONLY
• ✅ 36 stainless spokes (black)

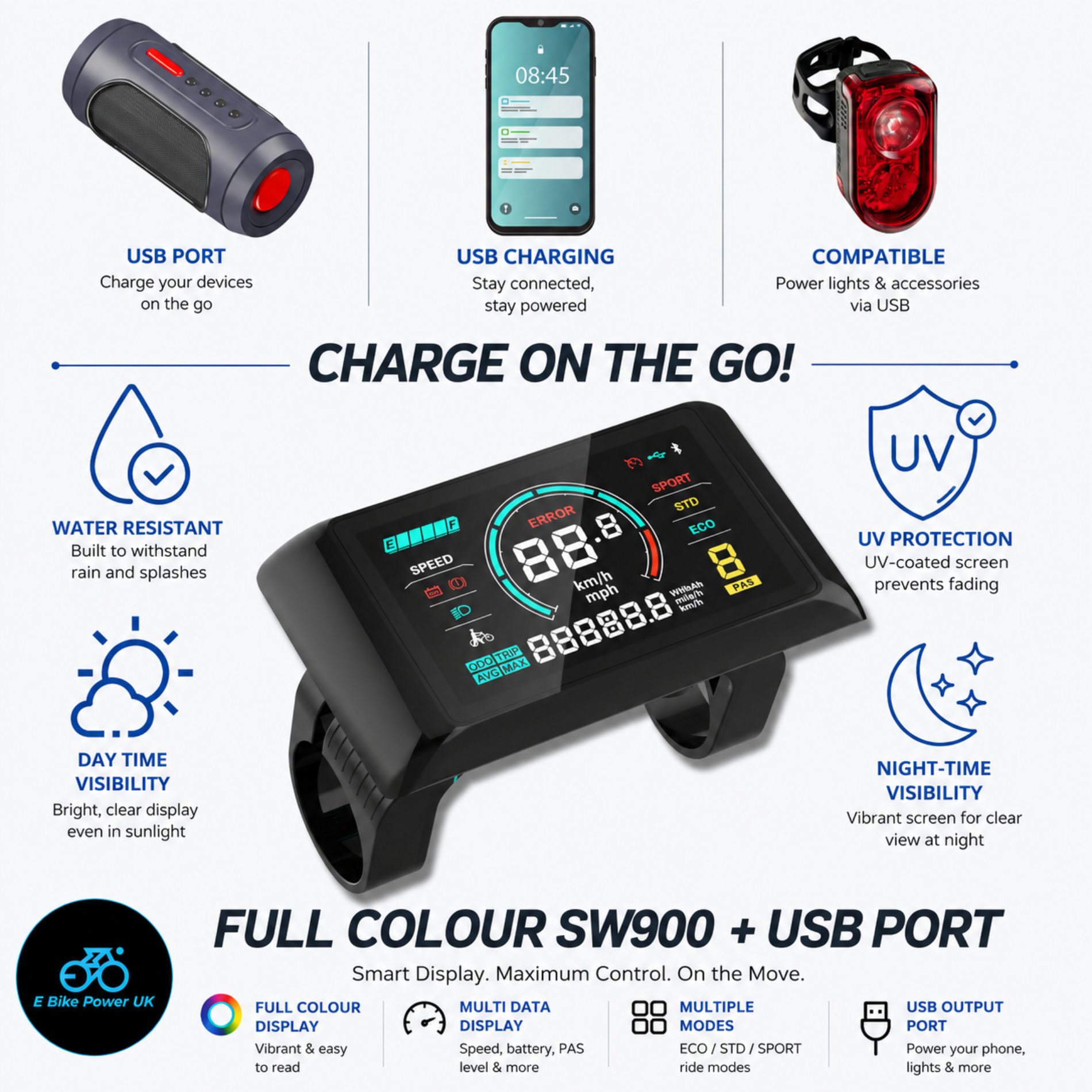

• ✅ SW900 colour display

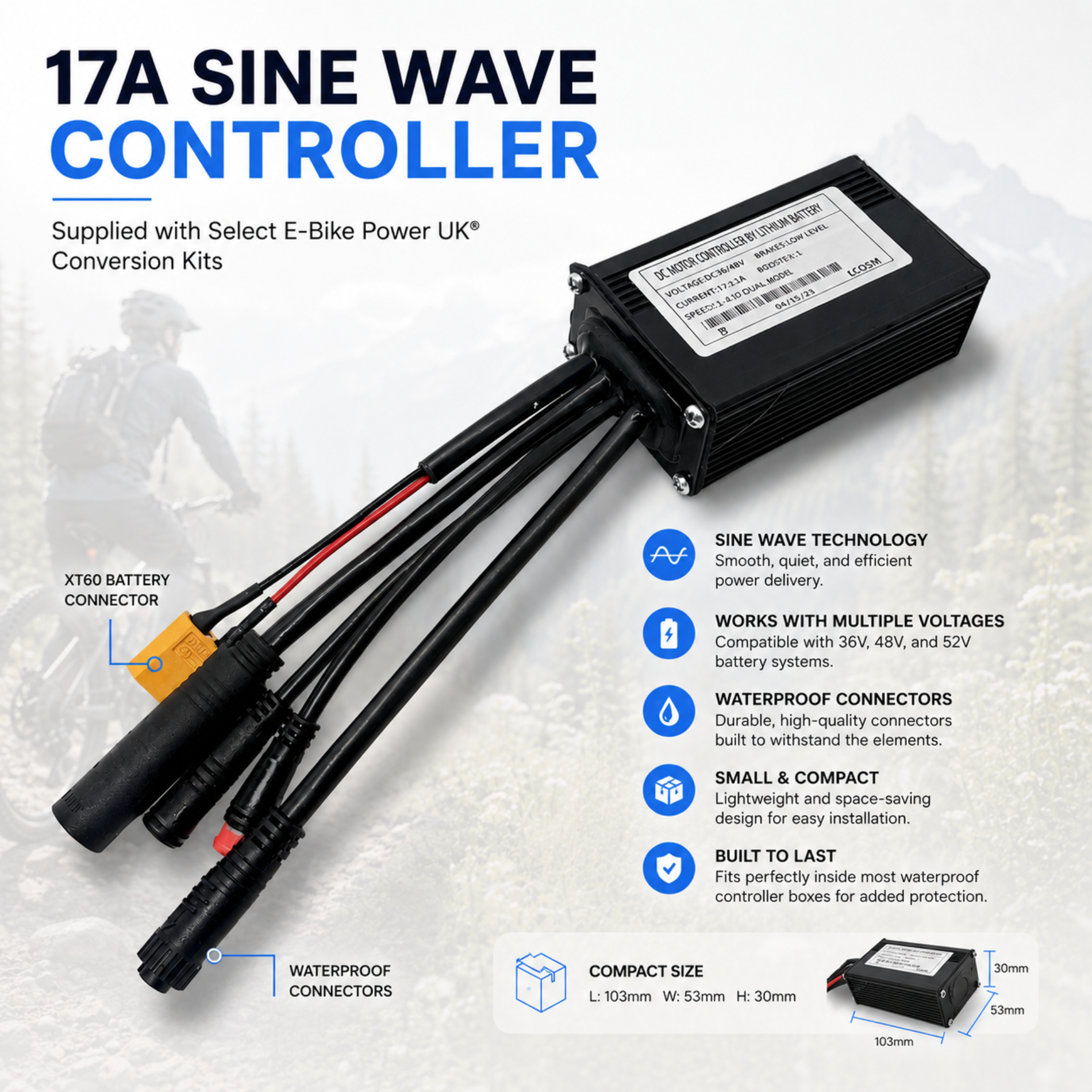

• ✅ 17A DC Moto controller (36V / 48V / 52V), XT60 female
• ✅ 3-in-1 data cable
• ✅ Slim Line half-twist throttle + left-hand grip (stealthy look)

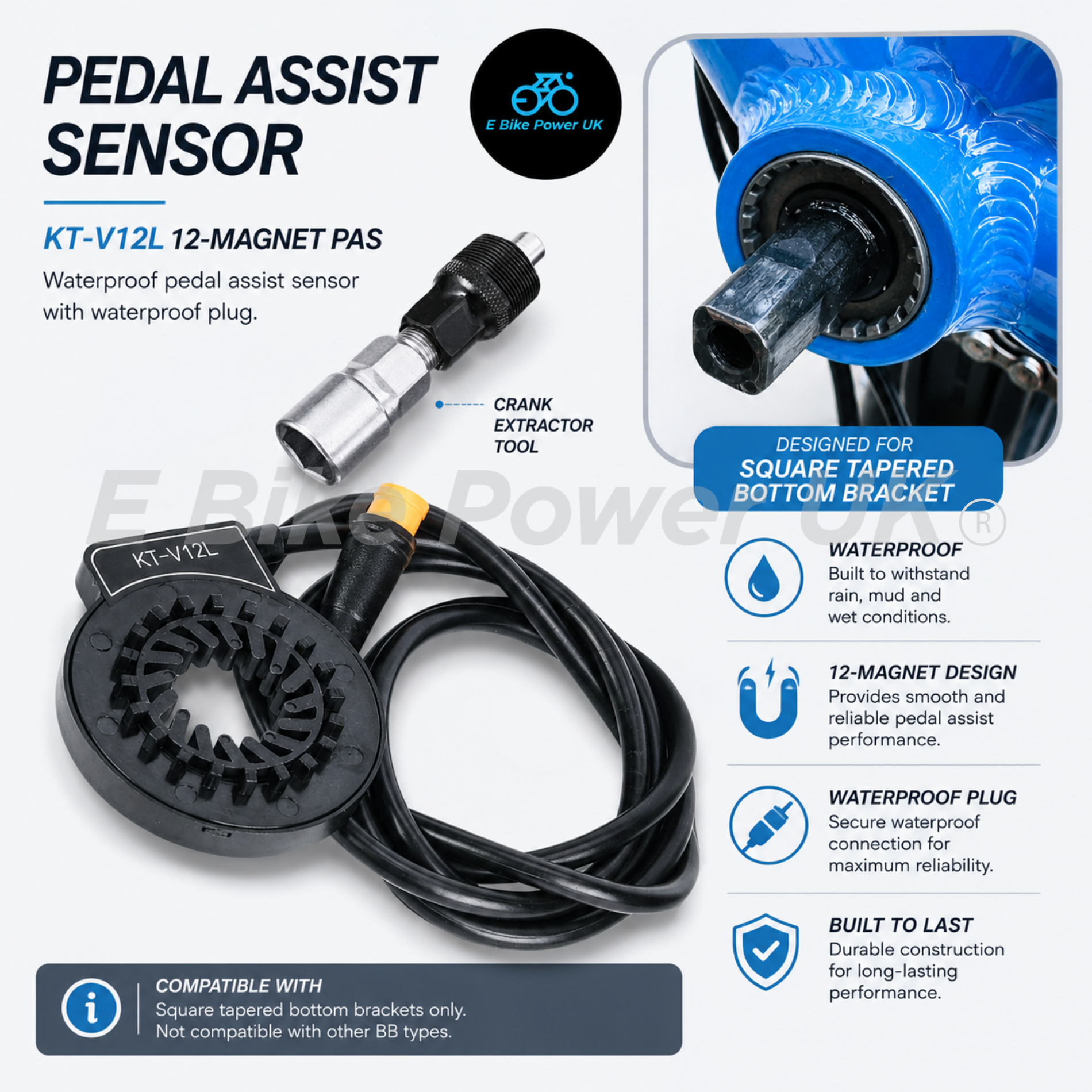

• ✅ VL-12 Pedal Assist Sensor (PAS)

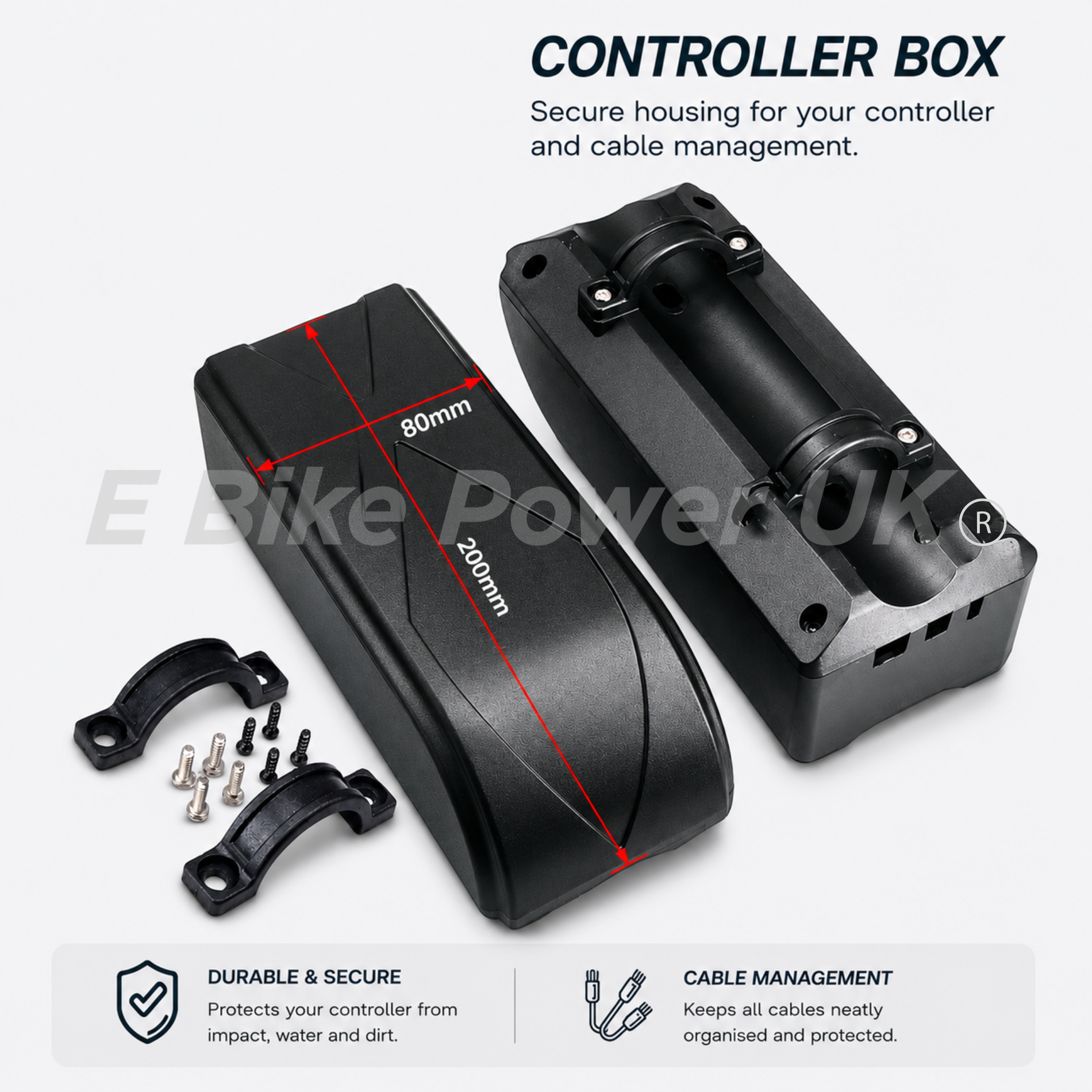

• ✅ Waterproof controller box

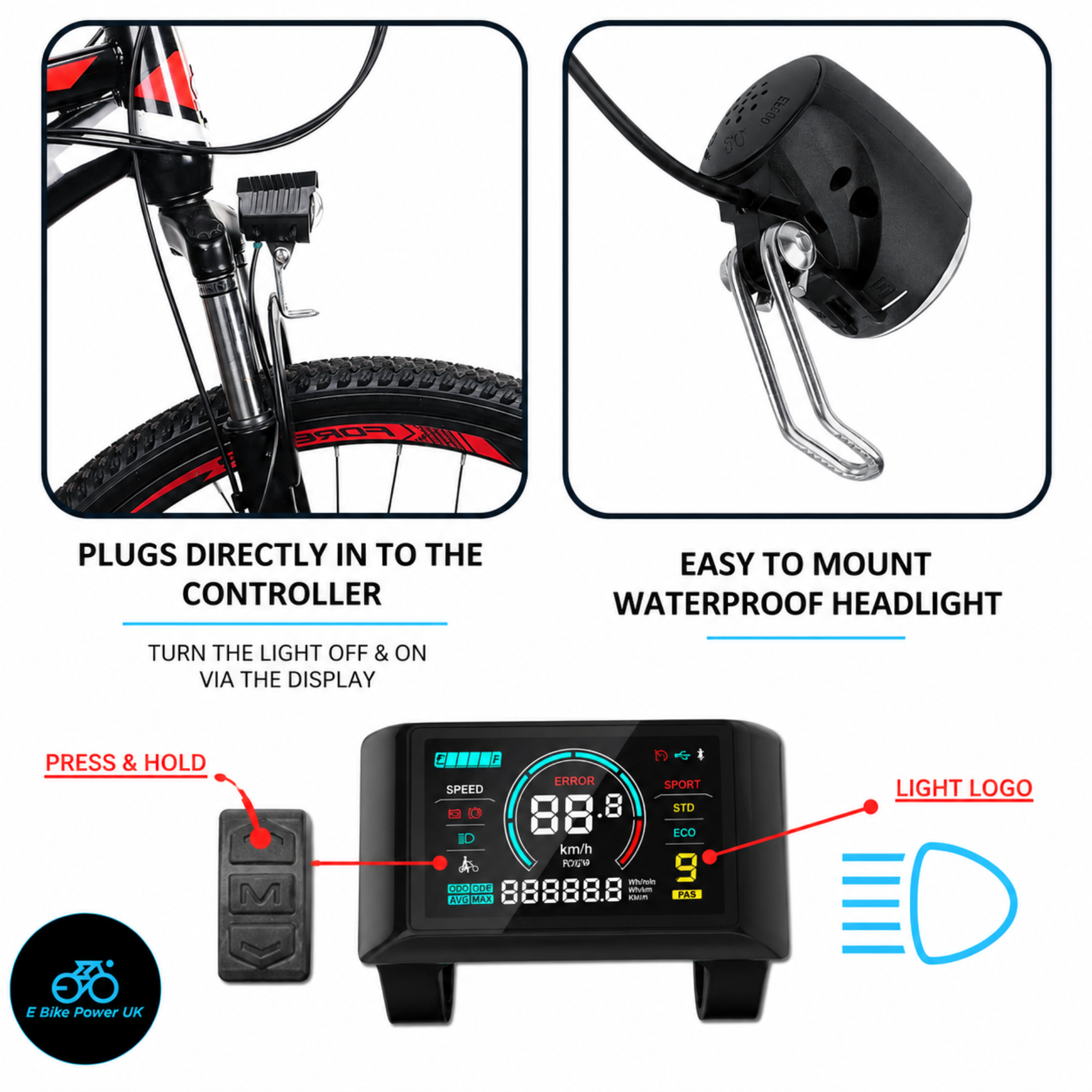

• ✅ Headlight (controlled via the display)
• ✅ Tyre levers, cable wrap, cable ties
• ✅ Waterproof motor extension cable

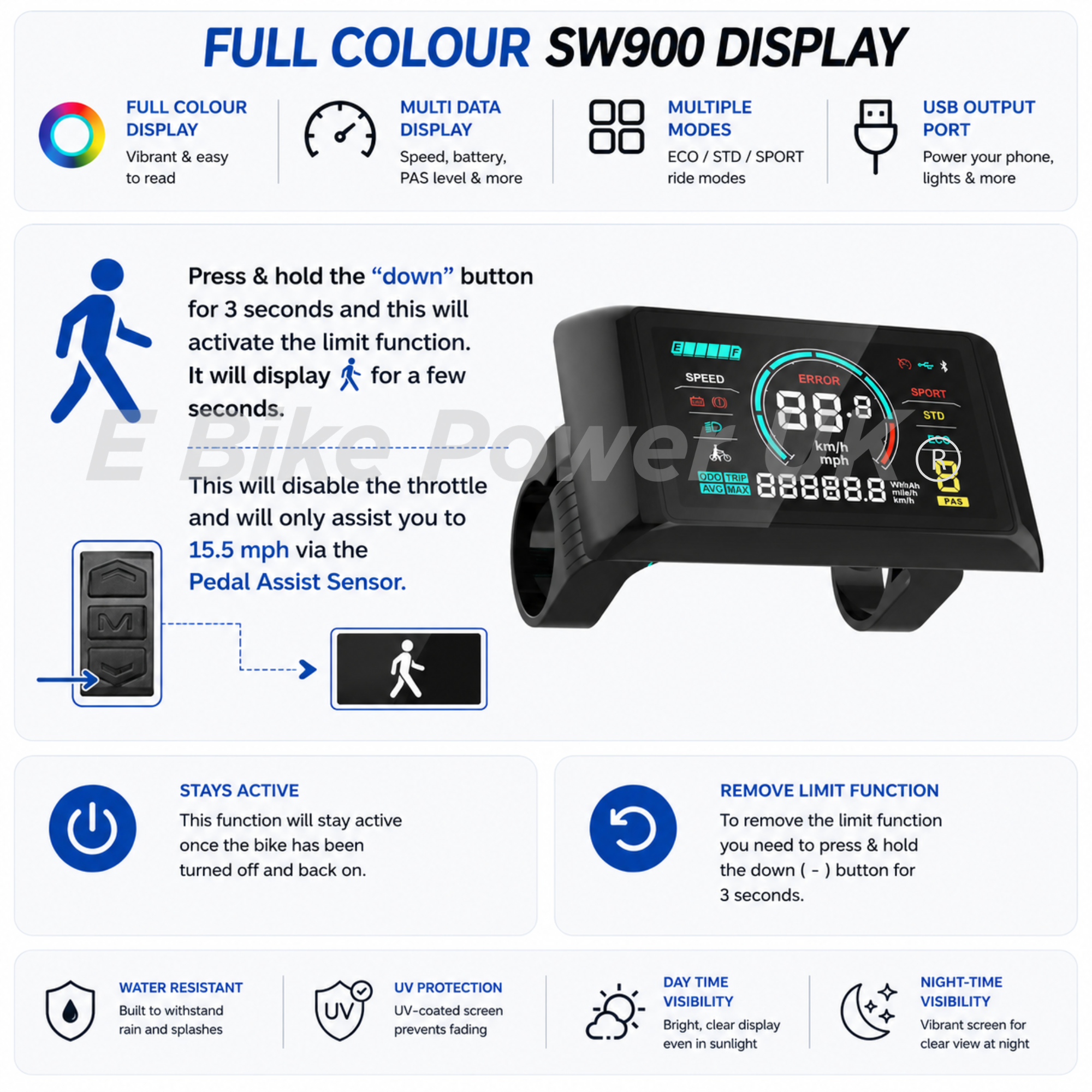

⚖️ Road-Legal Mode (UK)

• 🔘 Hold the down button on the display to activate road-legal mode
• 👣 “Walk/Person” icon shows when active
• 🚴 Limits PAS to 15.5 mph (25 km/h) and disables the throttle
• ✅ To be road-legal, use PAS only with the throttle off

🔋 Battery Compatibility & Options

This kit is fully compatible with 36V, 48V, and 52V batteries, giving you flexibility depending on the performance you’re looking for.

• ⚡ 36V – Smooth, efficient riding with moderate speed
• ⚡ 48V – Ideal balance of power and range (recommended)
• ⚡ 52V – Increased torque and higher top-end performance

You can purchase this kit on its own if you already have a compatible battery, or choose to buy it with our matched 48V battery for a complete plug-and-play setup.

If you’re looking for more range or upgraded performance, you’re free to select any compatible battery from our store to suit your build.

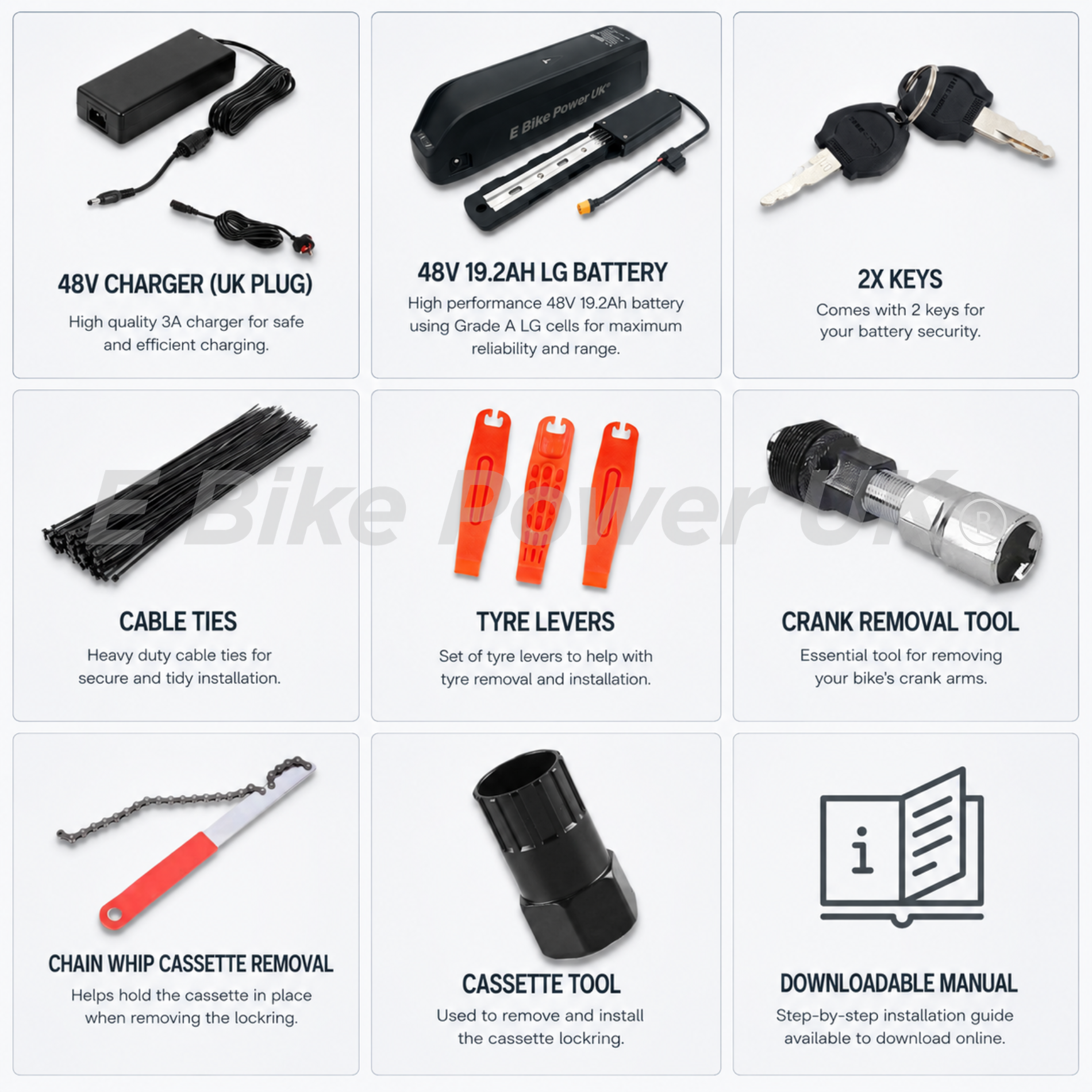

🔋 Battery Bundle (Optional)

Add a battery at checkout and receive:

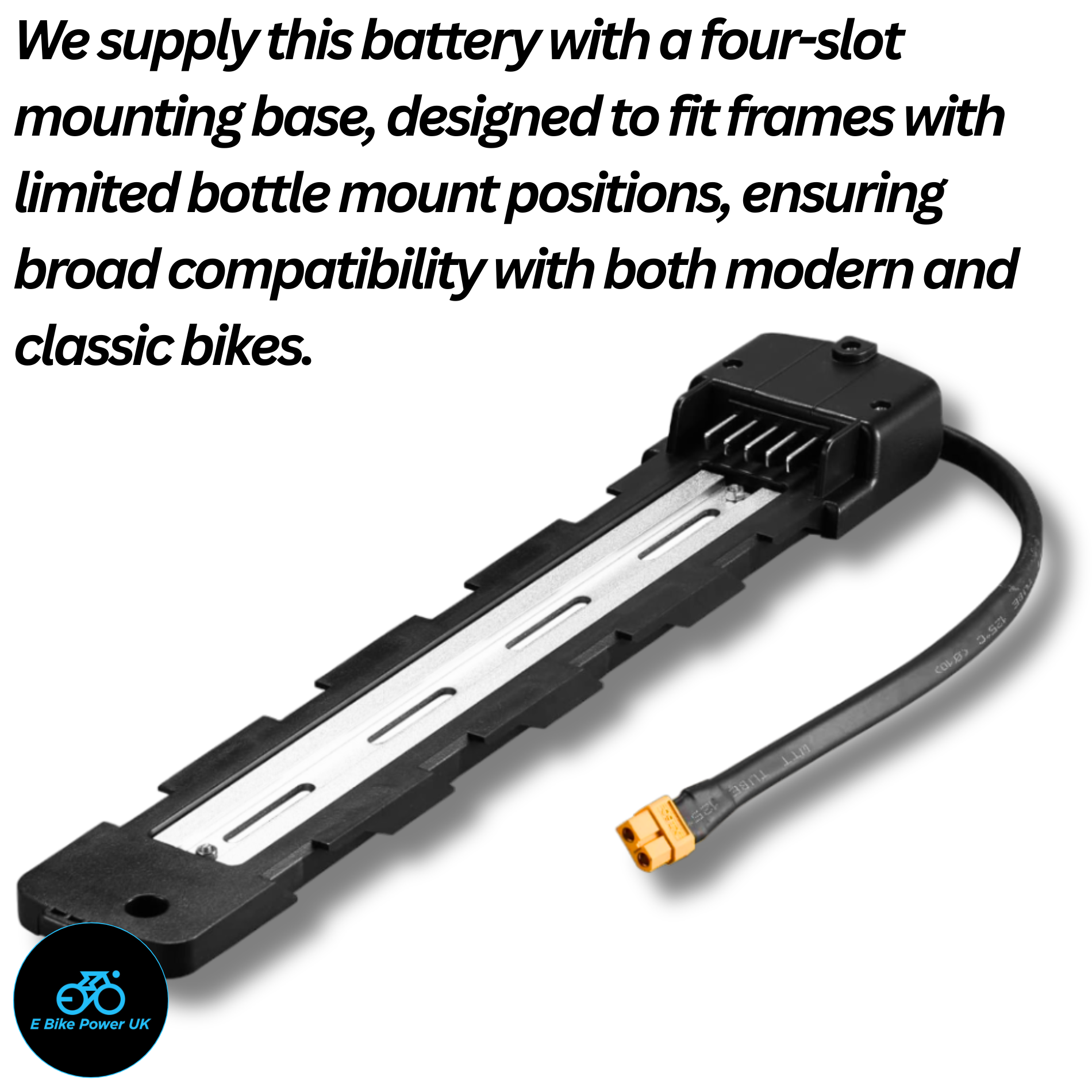

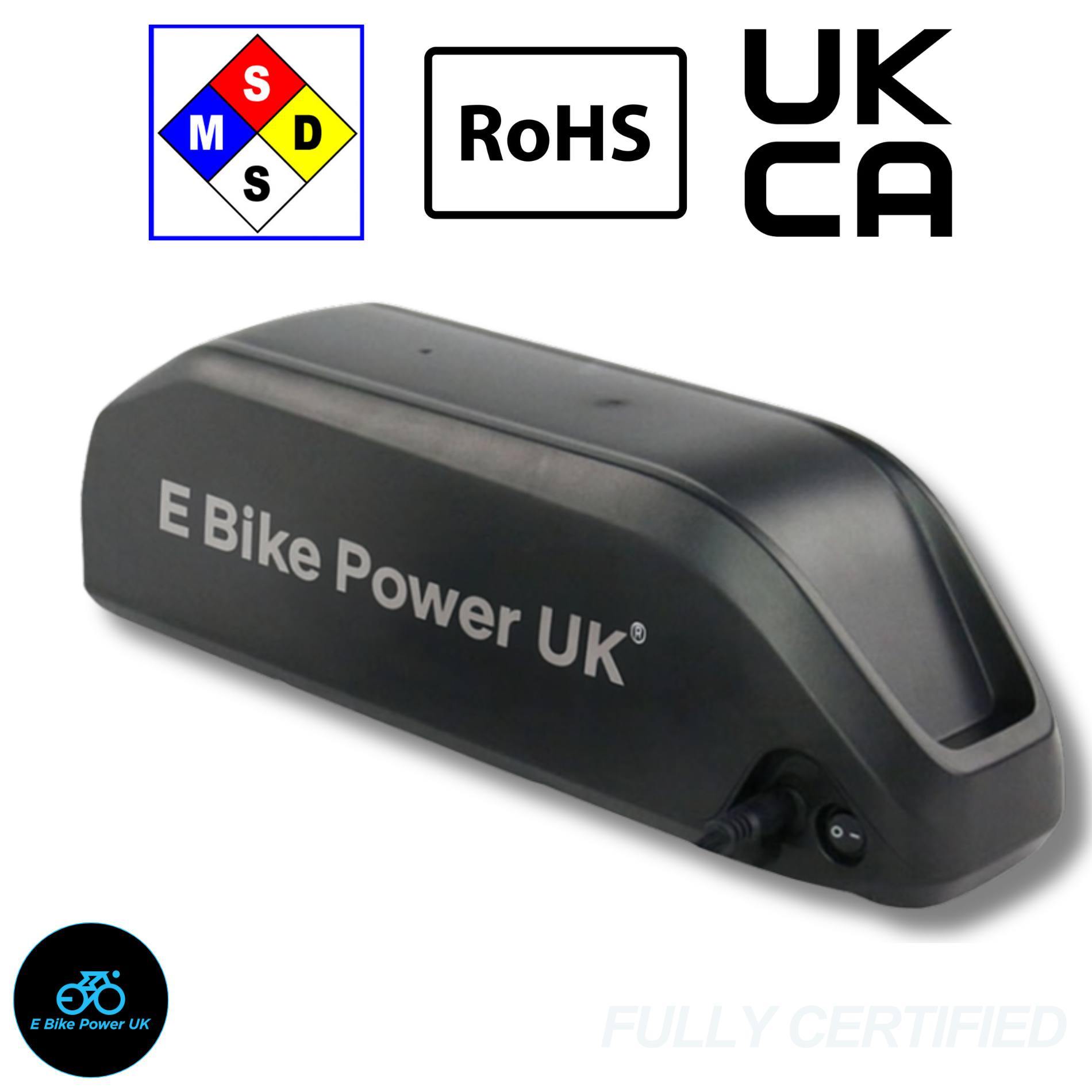

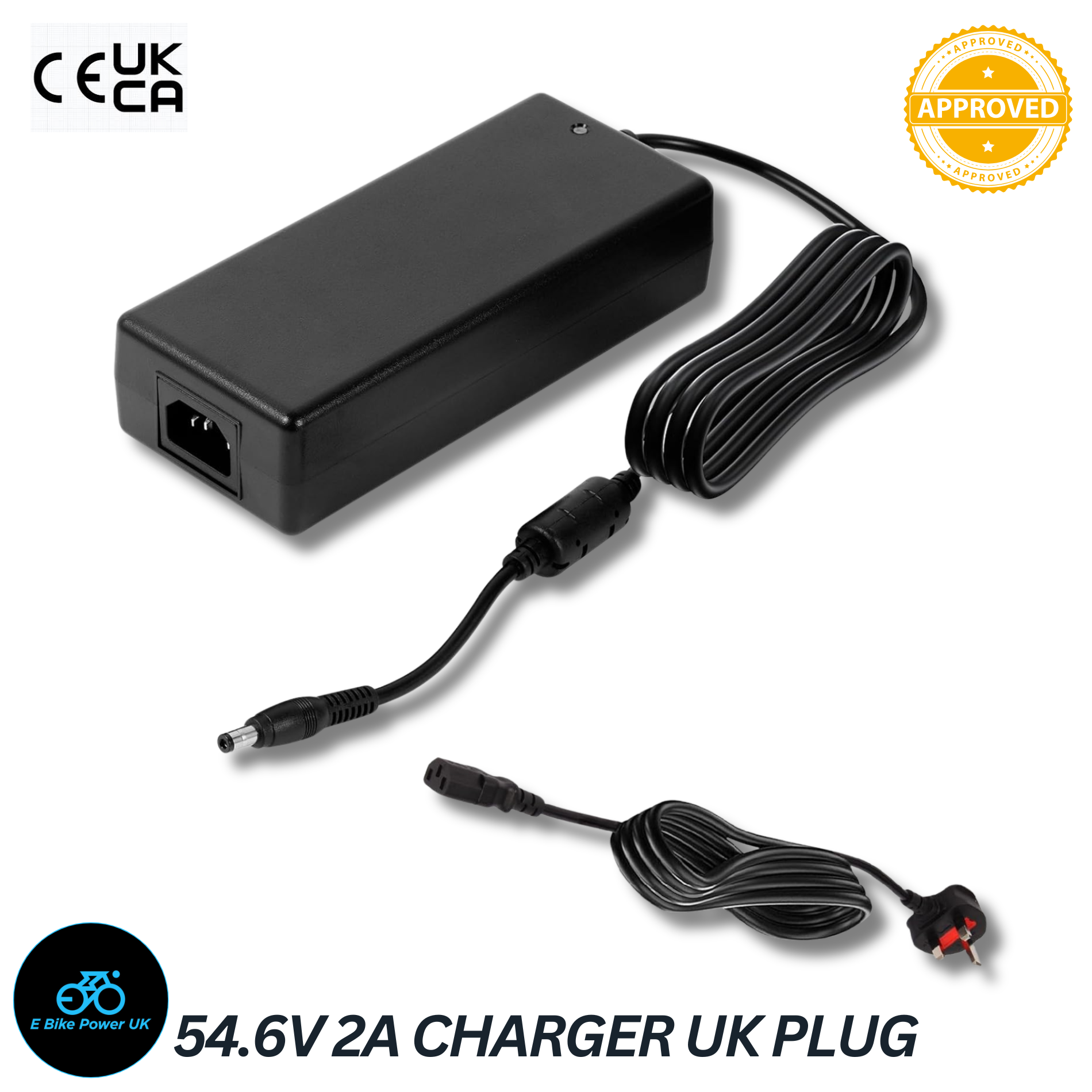

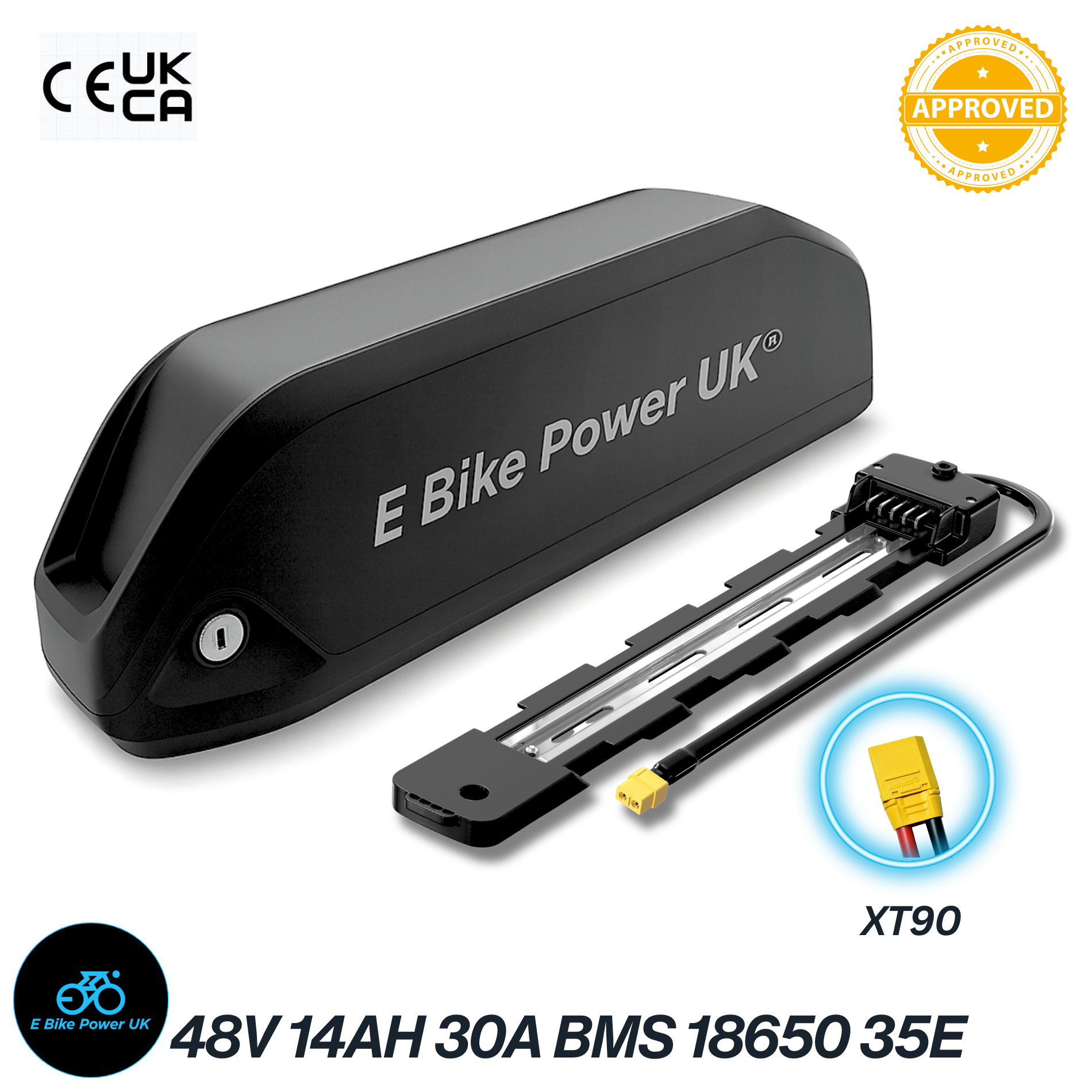

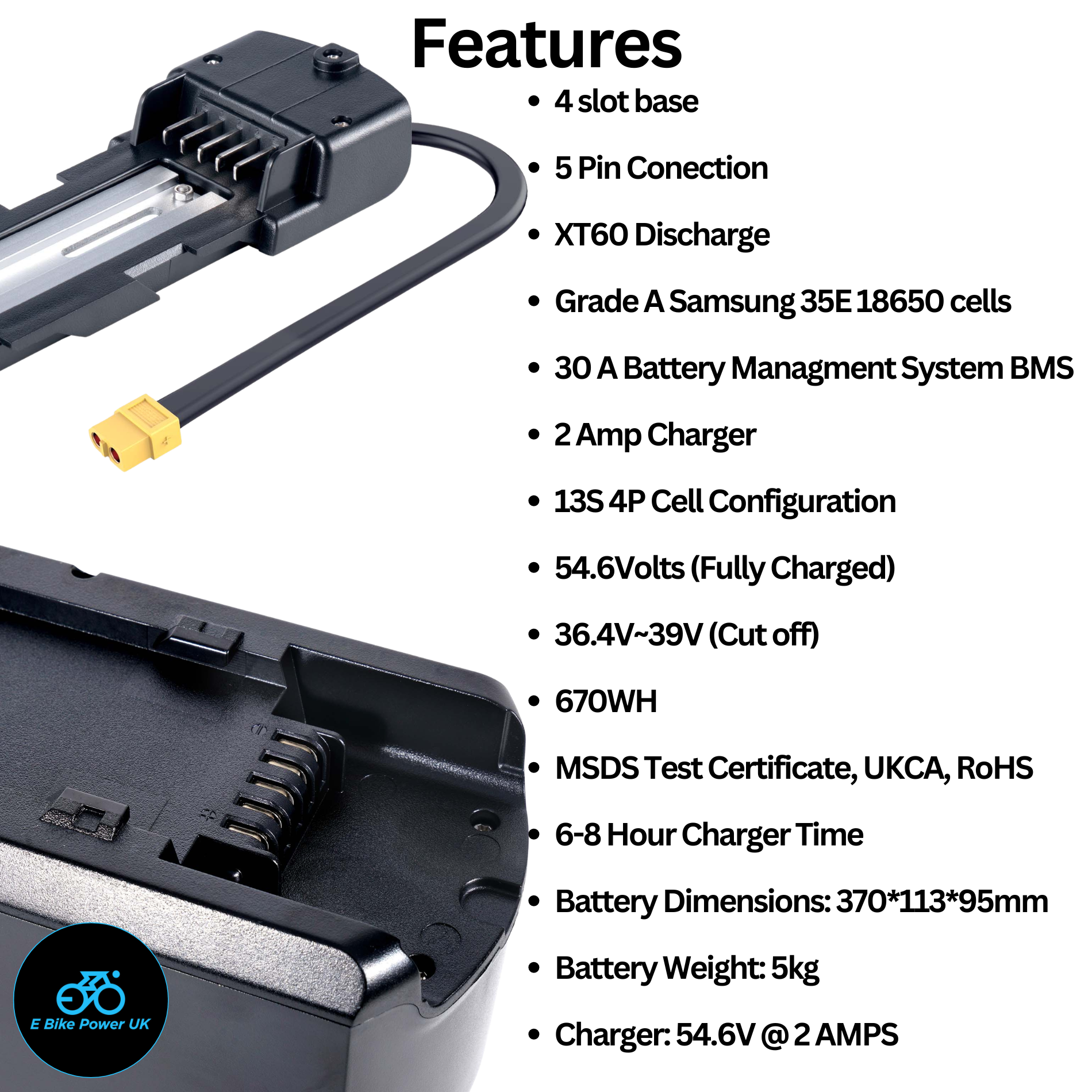

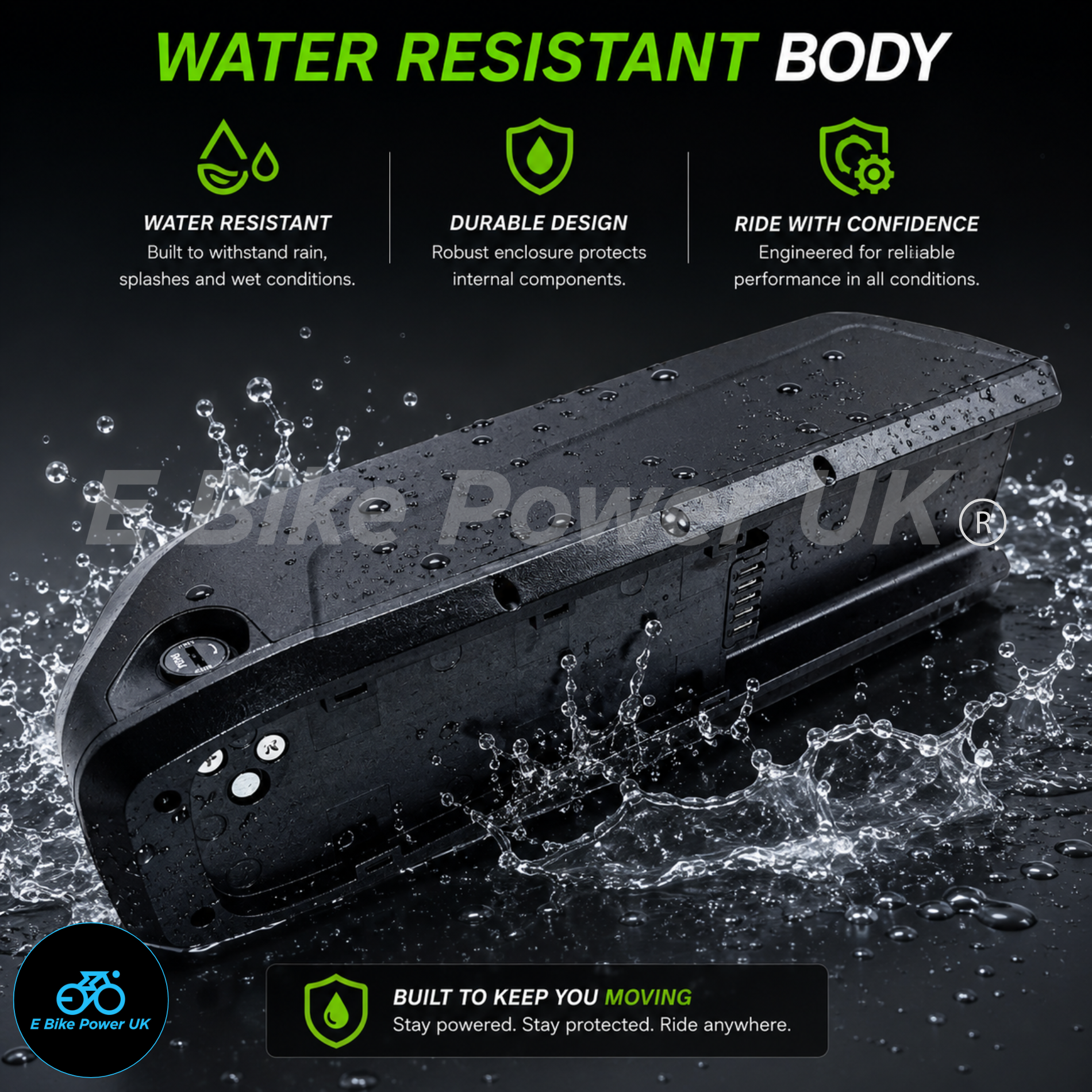

• 🔹 48V 14Ah Poly Downtube Battery + 2A UK charger, rubber pads, 2 keys, XT60
• 🔹 Built using Grade A original manufactured cells for high performance, reliability, and long-lasting longevity

⚙️ Cassette Options

We can install a 7/8/9/10-speed cassette if you add one to your order from our store.
ℹ️ 7-speed requires a 2.5 mm spacer.

🧩 Use Without Certain Accessories

• 🏁 You may run throttle-only or omit PAS on private land/off-road
• ⚠️ For road-legal use, PAS must be used and the throttle disabled

🛡️ Warranty

• 🧰 3-month warranty on the kit
• 🔋 12-month warranty on the battery (if purchased)

🧰 Optional Extras

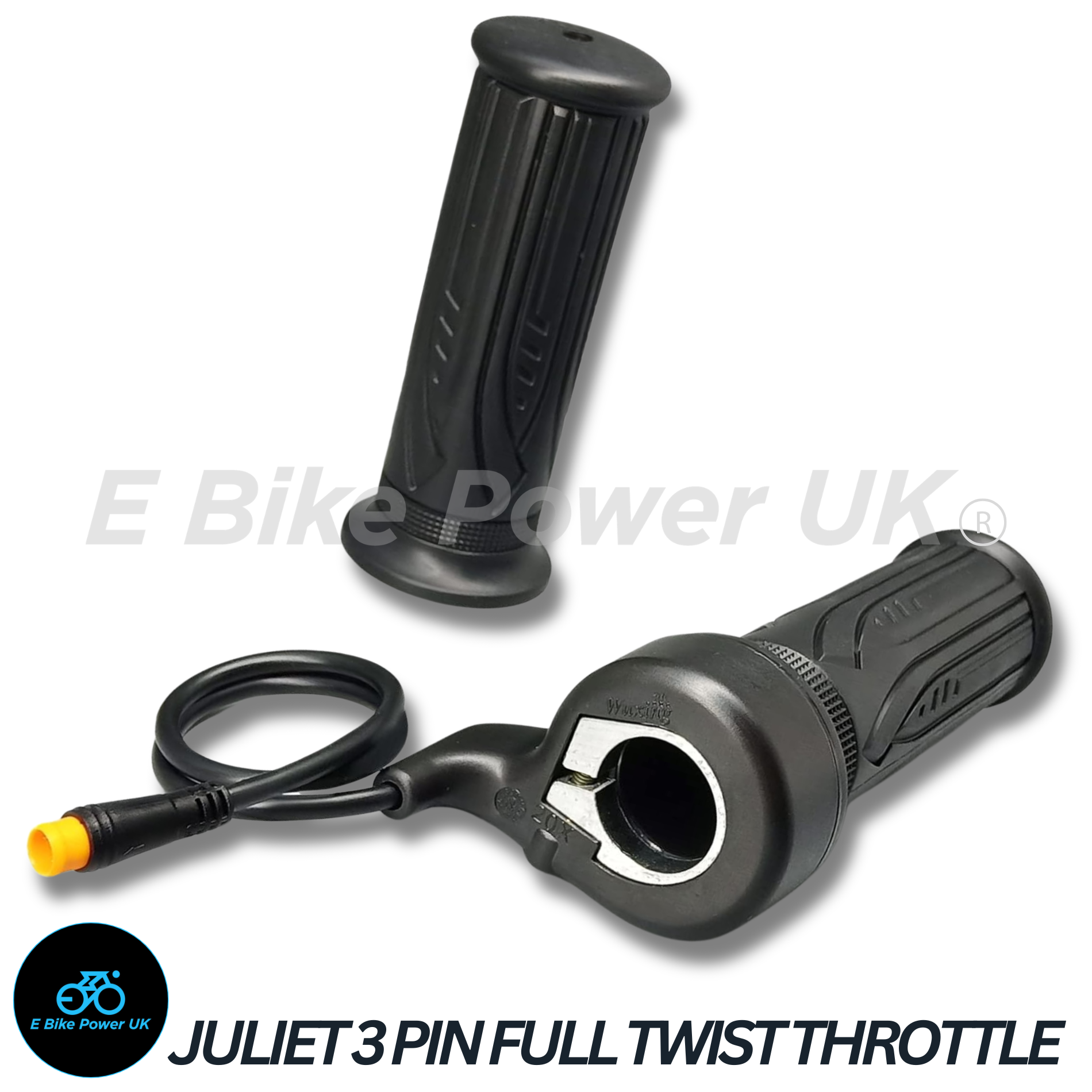

Prefer a full twist throttle? 🌀 Leave a note at checkout and we’ll swap it in.

🛠️ Tips & Tricks

• 🔧 Chain whip & cassette tool required (available in our store)
• 🧲 Ensure the axle seats fully in the dropouts; tighten both 19 mm nuts
• 🛑 Remove the transport spacer before installing the disc rotor
• 🧴 Lightly grease the cassette spline before install
• 🛞 Use slime inner tubes to reduce punctures
• 🧷 Remove the brake caliper for easier wheel installation
• 🔌 If the wheel doesn’t spin freely, check phase wires aren’t touching
• 🧵 Apply thread-lock to rotor bolts to protect the motor cable
• 🗜️ Recheck spoke tension after initial rides
• 🦾 Fit a torque arm if possible for added safety

🚚 Shipping

• 🔎 Orders tested & processed within 24 hours of cleared payment
• 📦 Couriers: FedEx, DPD, UPS, Parcelforce, Royal Mail (size & location dependent)
• 📍 Fully tracked shipments; weekend delivery available (extra charge)
• ⏱️ Typical delivery window: 1–2 days once dispatched

↩️ Returns

• 🗓️ 14-day return policy
• 📦 Item must be unused with all components & accessories
• 💳 Buyer covers return shipping

🙏 Thanks for your time — E Bike Power UK.
