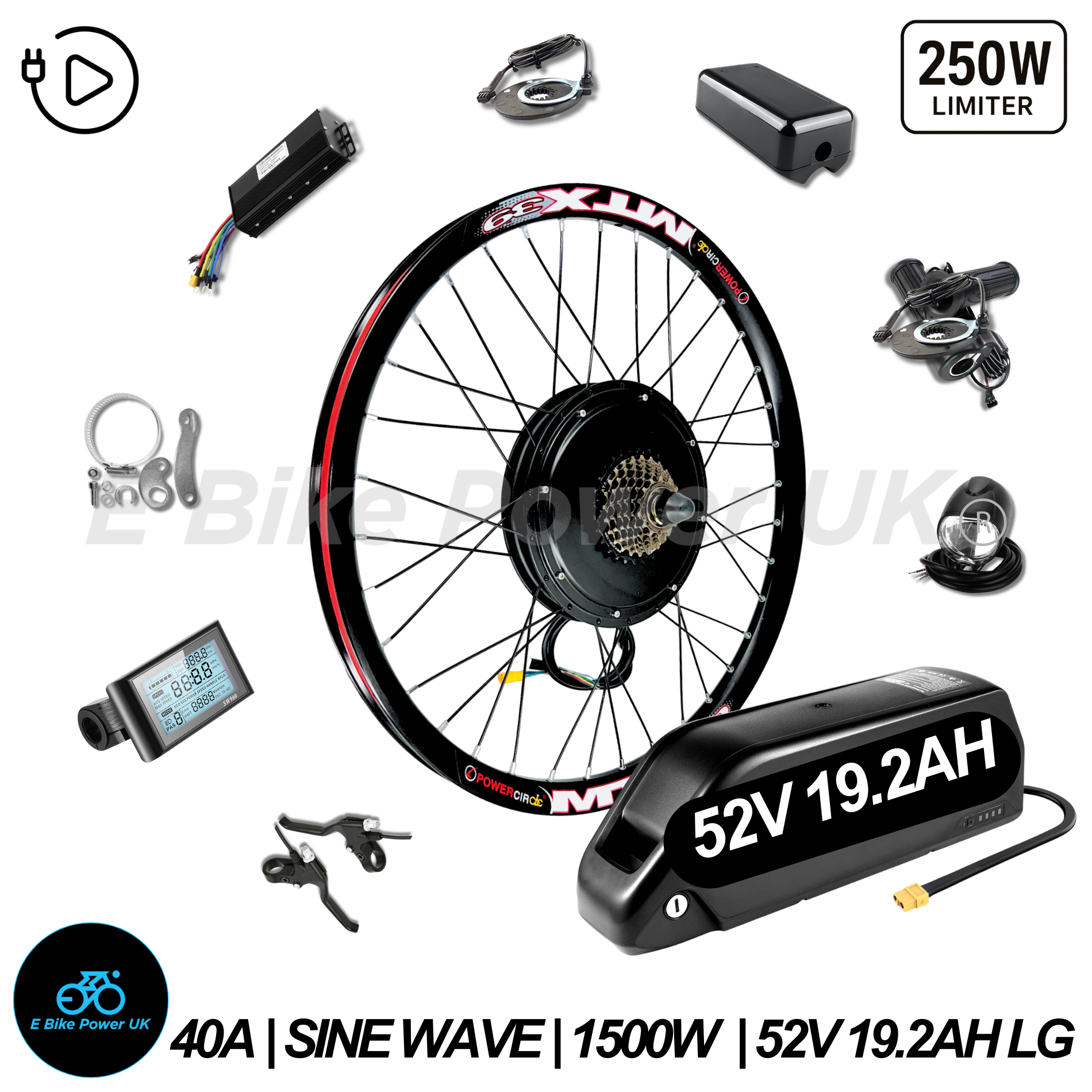

1500W E-Bike Conversion Kit LG 52V 19.2AH Battery SW900 Colour Display Original MTX39 Rim Rear Wheel 7 Speed

1500W E-Bike Conversion Kit

MTX Rim • Shimano 7-Speed Freewheel • Bluetooth Sine Wave Controller • SW900 Colour Display

Motor: 1500W brushless gearless rear hub motor

Rim: Original MTX rim with heavy-duty spokes

Dropout: 135mm rear dropout

Freewheel: Original Shimano 7-speed freewheel included

Throttle: Full twist throttle included

Display: Full-colour SW900 LCD display

Pedal Assist: 8-magnet pedal assist sensor included

Brake Levers: Brake cut-off levers included. These are optional to fit if you wish to use them.

Controller Bag: Controller storage bag included

The kit includes a 40A sine wave Bluetooth controller which can be programmed through the compatible mobile app.

The Bluetooth app allows you to adjust a range of controller parameters and customise the setup to suit your requirements.

Please see the product images for further information regarding the Bluetooth controller, app settings and limiter functionality.

The kit is supplied with 2 torque arms – one of each style.

Both torque arms are manufactured from 6mm stainless steel for additional axle support.

If you require additional torque arms for your particular frame or installation, these must be purchased separately.

This conversion kit is available with or without a battery.

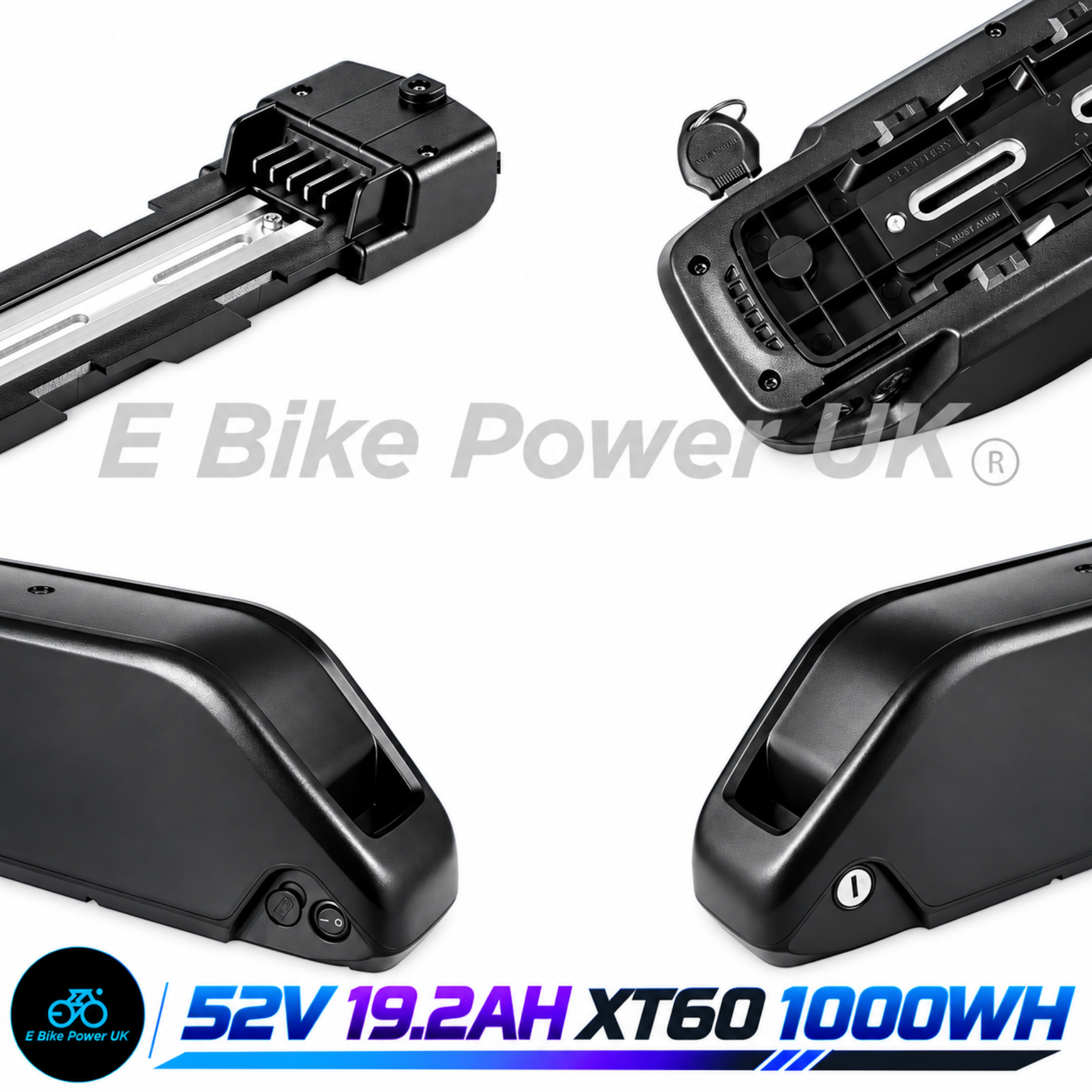

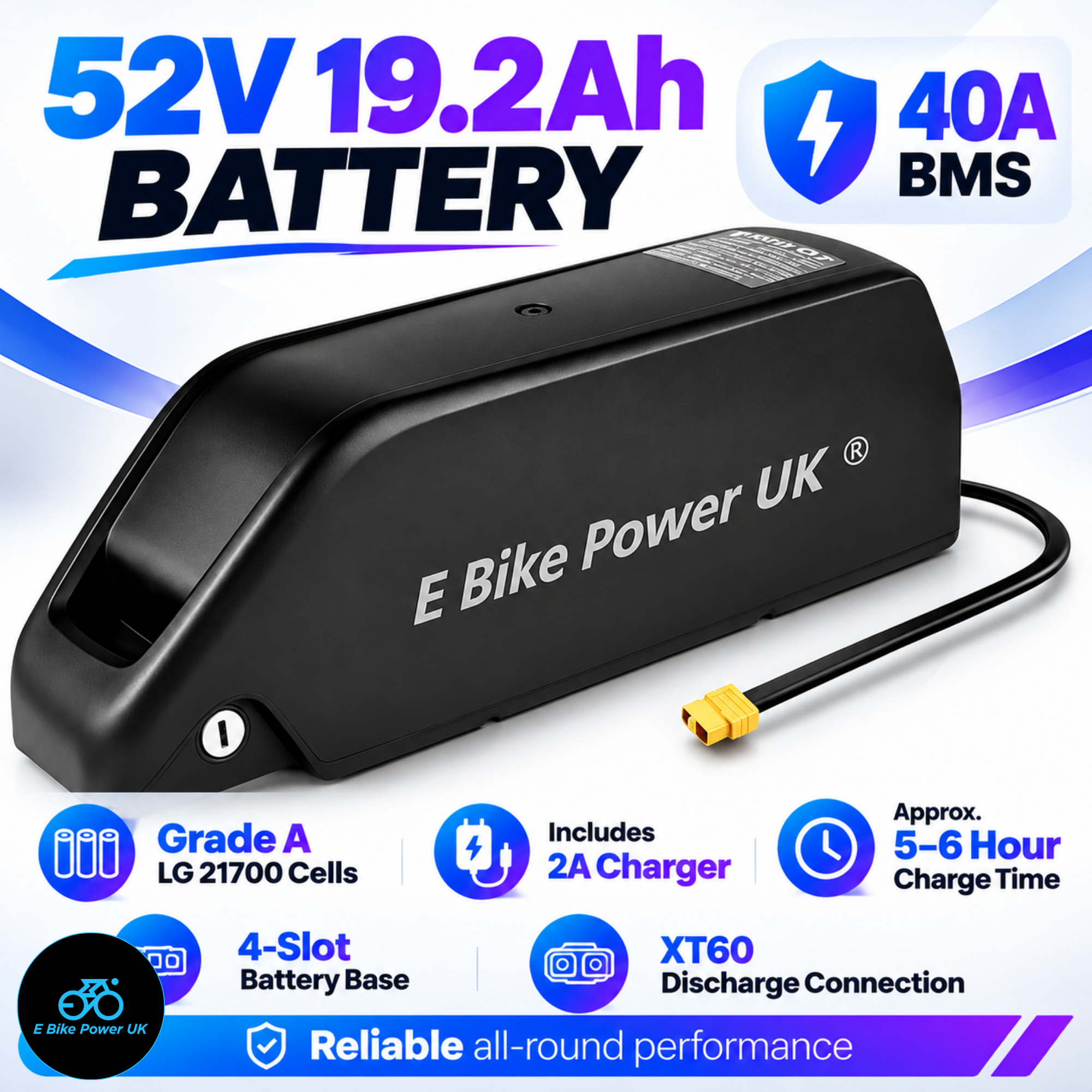

Voltage: 52V

Capacity: 19.2Ah

Cells: Grade A LG lithium-ion cells

BMS: 40A Battery Management System

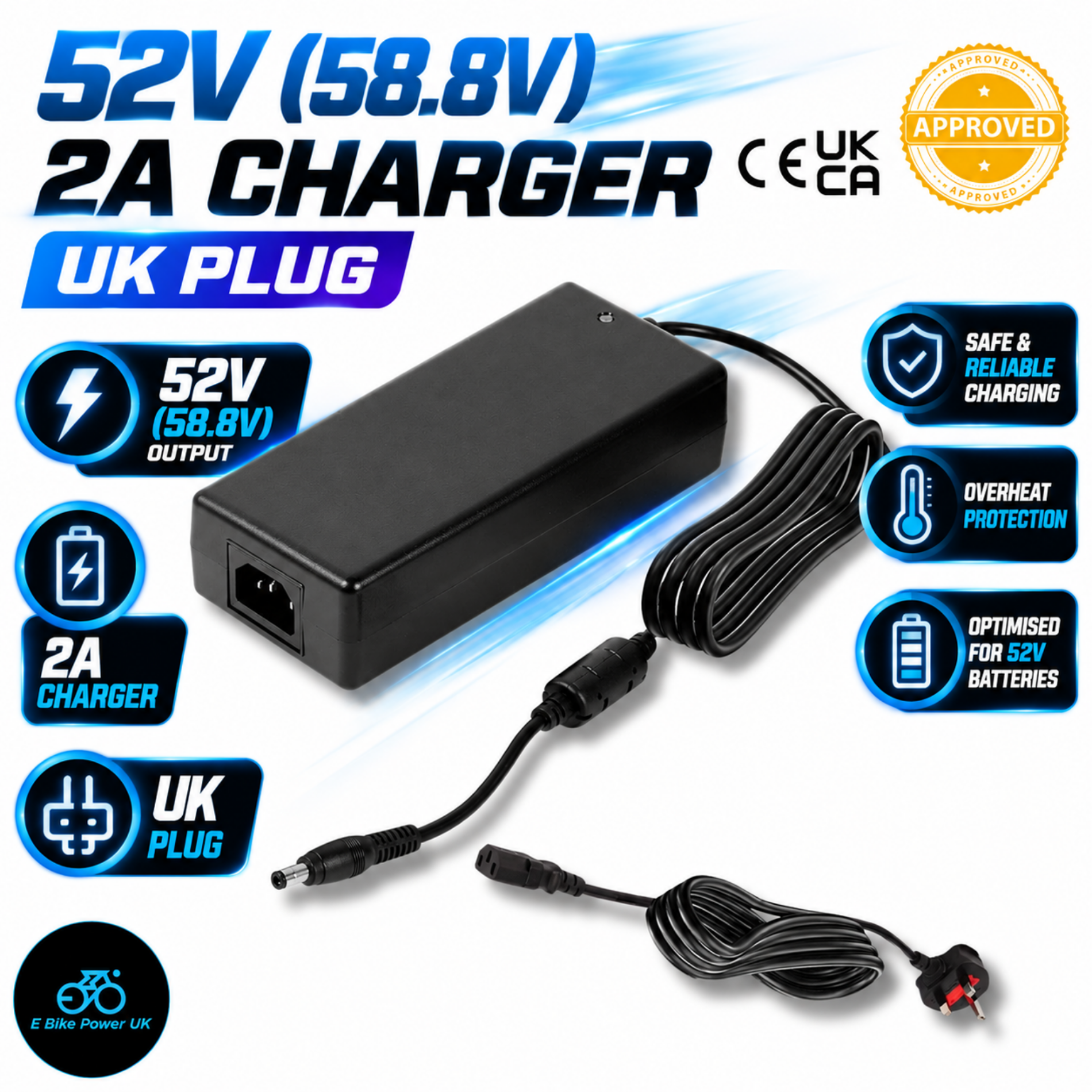

Charger: 58.8V 2A charger with UK plug

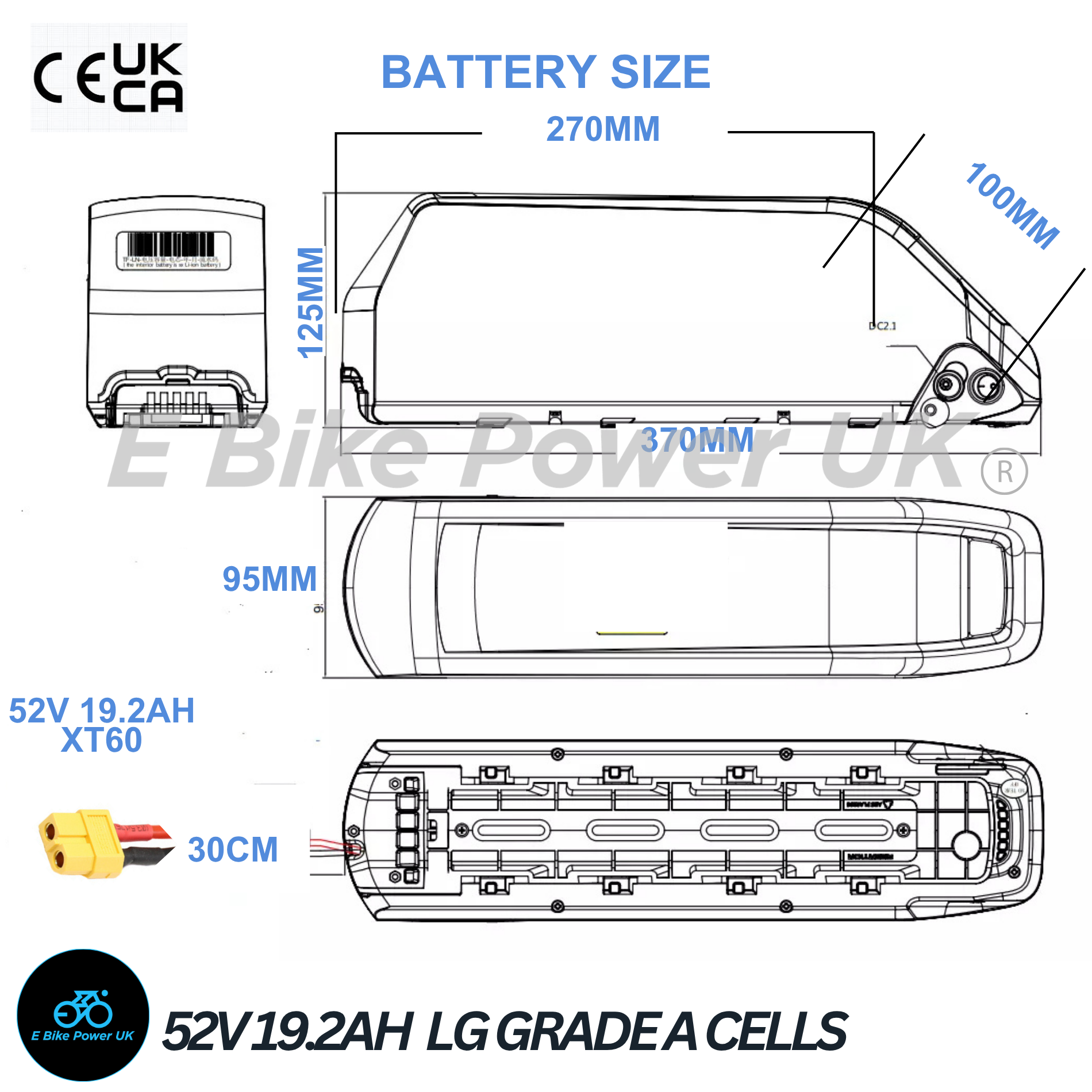

Mounting: 4-slot battery base

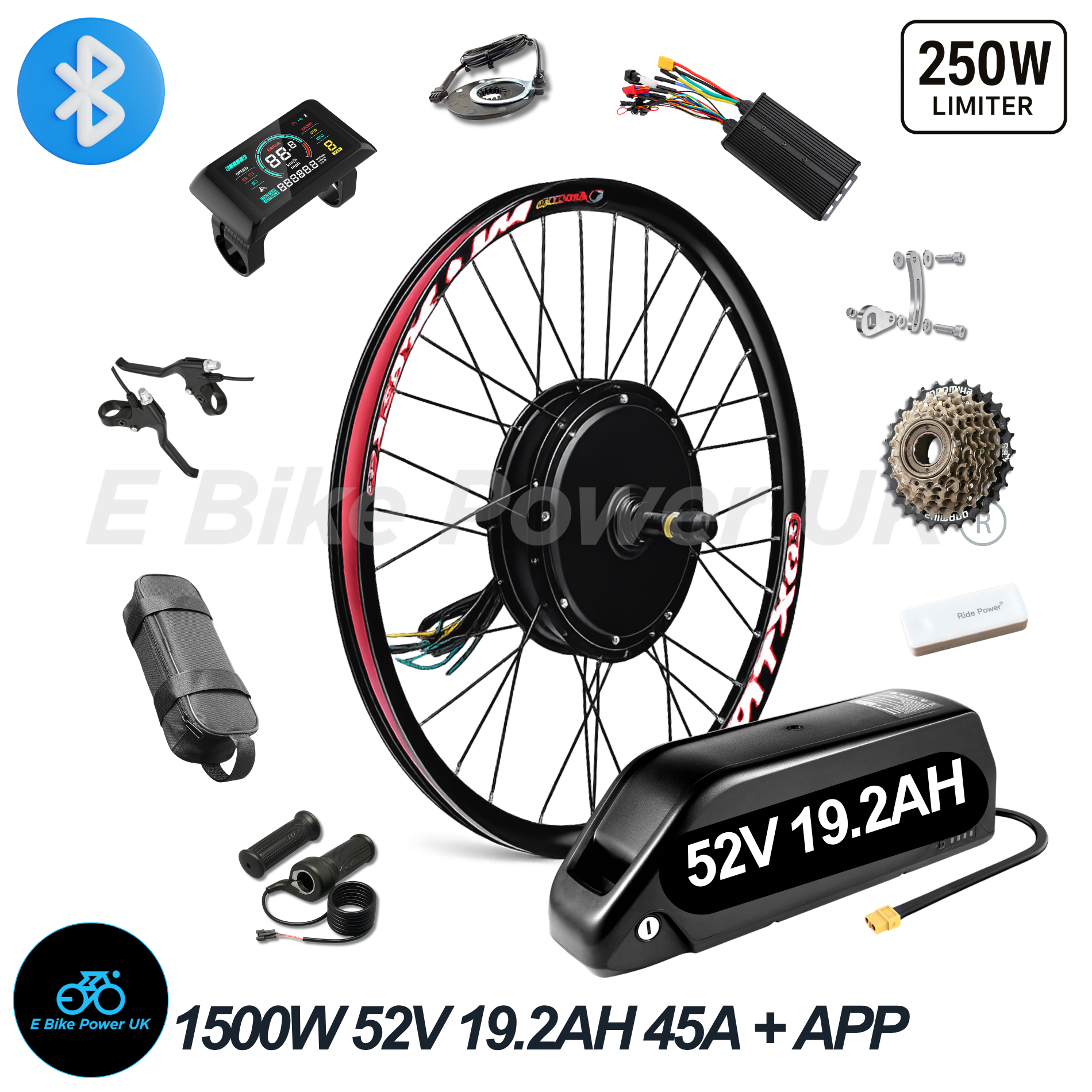

• 1500W rear hub motor wheel
• Original MTX rim
• Original Shimano 7-speed freewheel
• 40A sine wave Bluetooth controller
• Bluetooth app programming capability
• Full-colour SW900 display
• Full twist throttle
• 8-magnet pedal assist sensor
• Brake cut-off levers
• 2 × 6mm stainless steel torque arms
• Controller bag
• Optional 52V 19.2Ah LG battery package

⚠️ Important Legal Notice

High-powered e-bike conversion kits may not comply with UK EAPC requirements when operated at full power on public roads. It is the user’s responsibility to ensure the completed bicycle is operated in accordance with applicable UK laws and regulations.

Restricting the controller speed or power settings does not, by itself, make a 1500W rated motor compliant with UK EAPC requirements.
