Hello, Welcome to E Bike Power UK.



Here we offer the best quality electric conversion kits for your bike.

Our kits are suited to all bikes that have rear dropouts with a minimum width of 135mm with 7 Speed freewheel.

Please note rider weight, terrain, whether plays a factor in the performances.

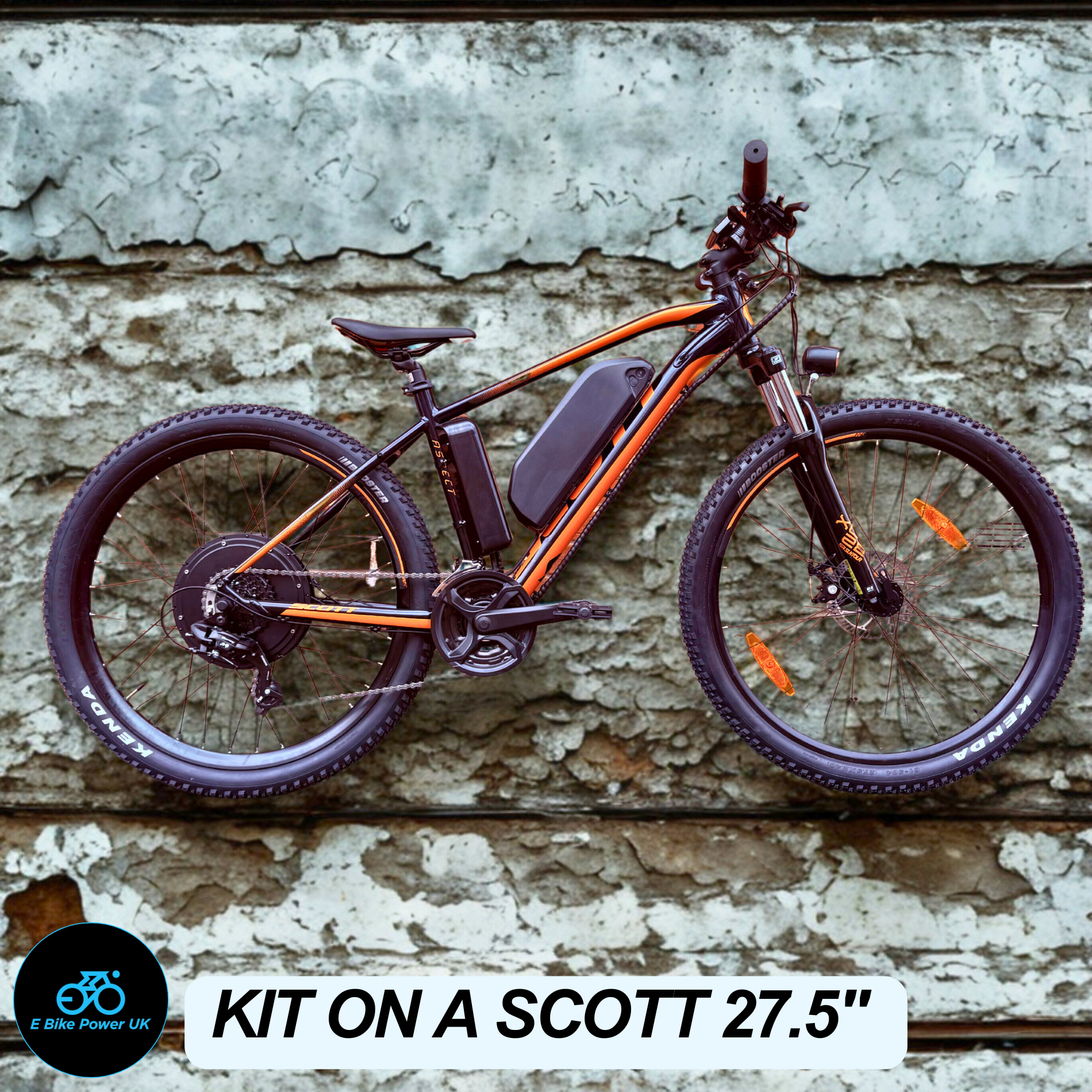

Our kits have been designed to suit most types of bikes. example

26 Inch, 27.5 Inch, 29 Inch Wheel size.

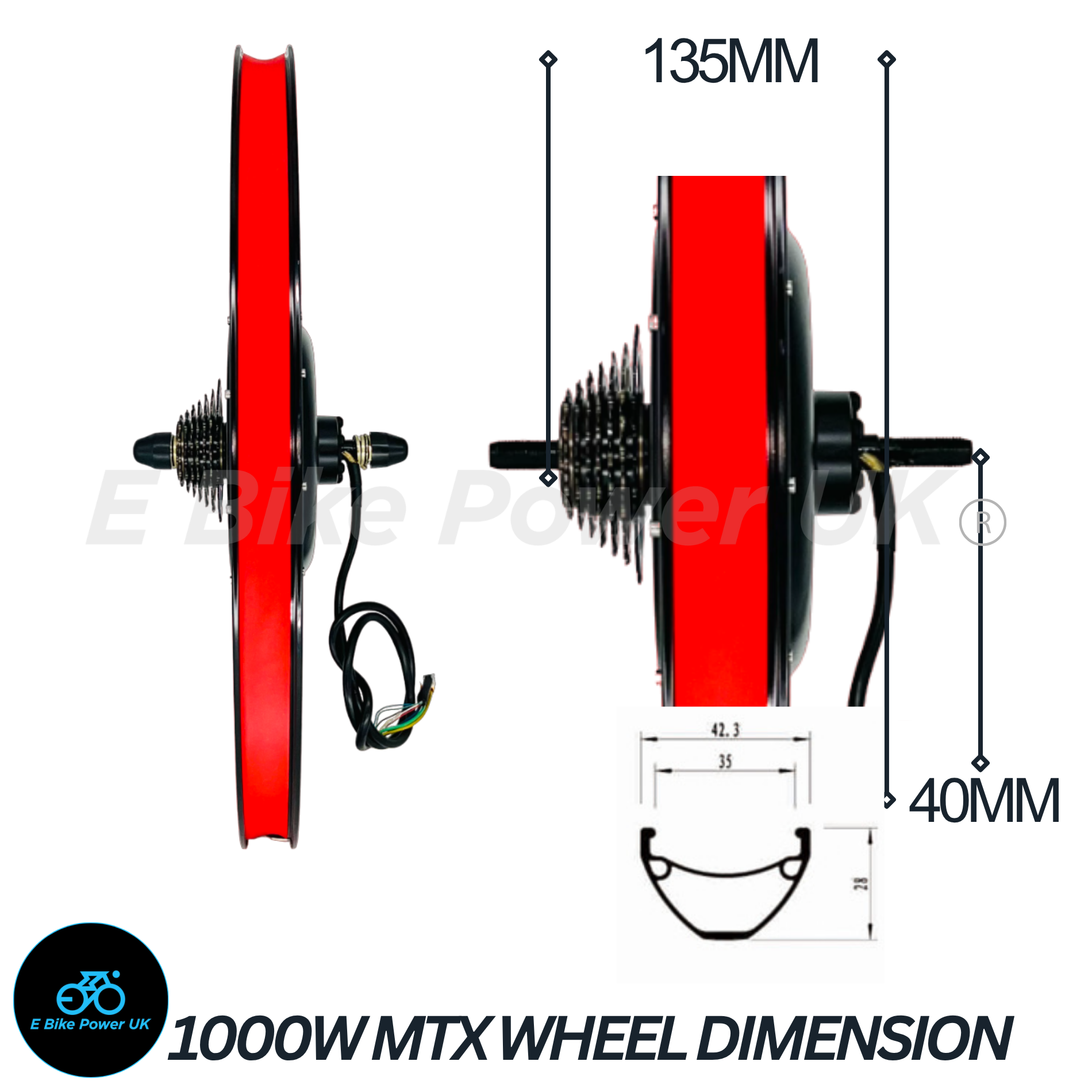

135mm-142mm rear dropout size.

Rim brakes or disc brakes

with a

rear disc brakes from 160mm to 202mm.

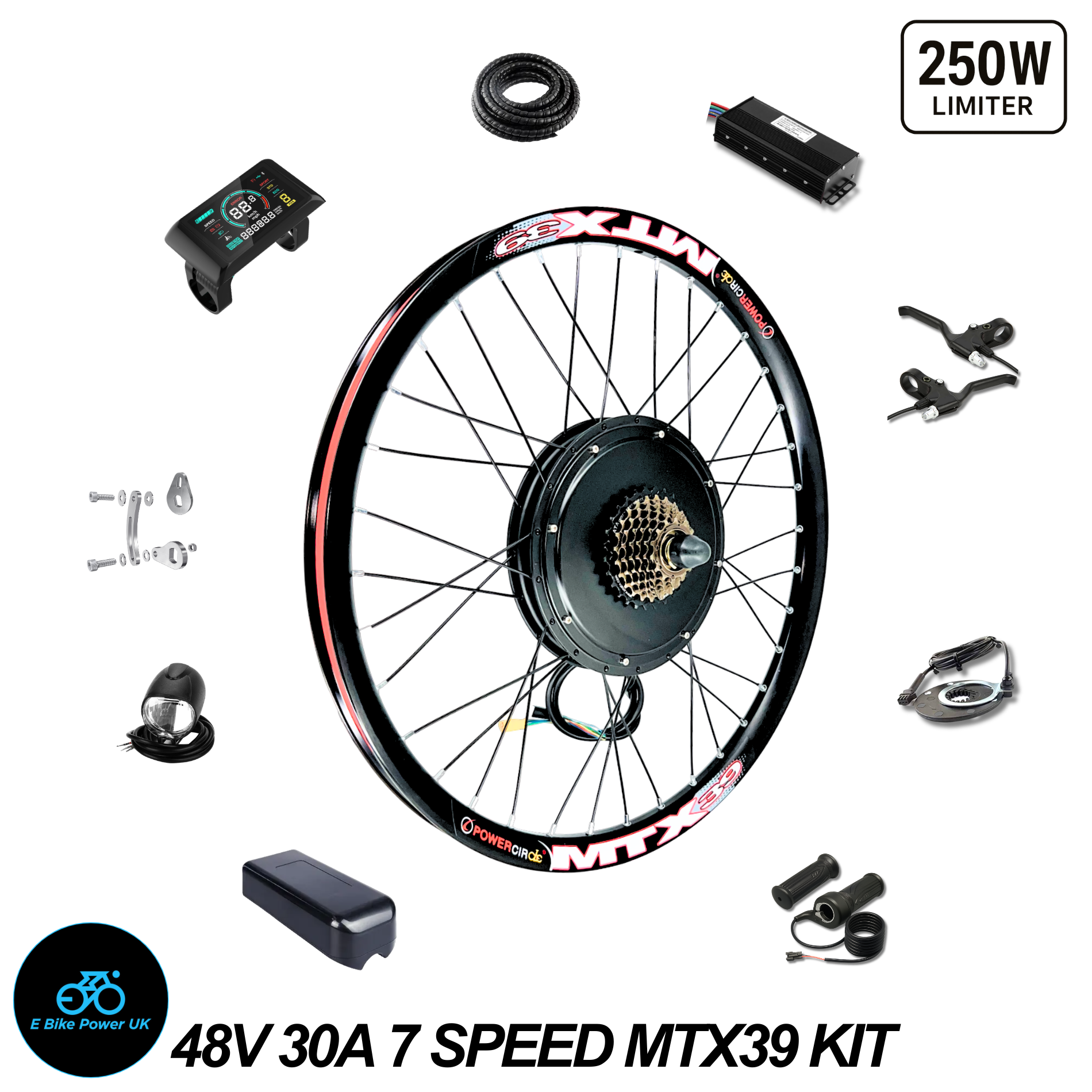

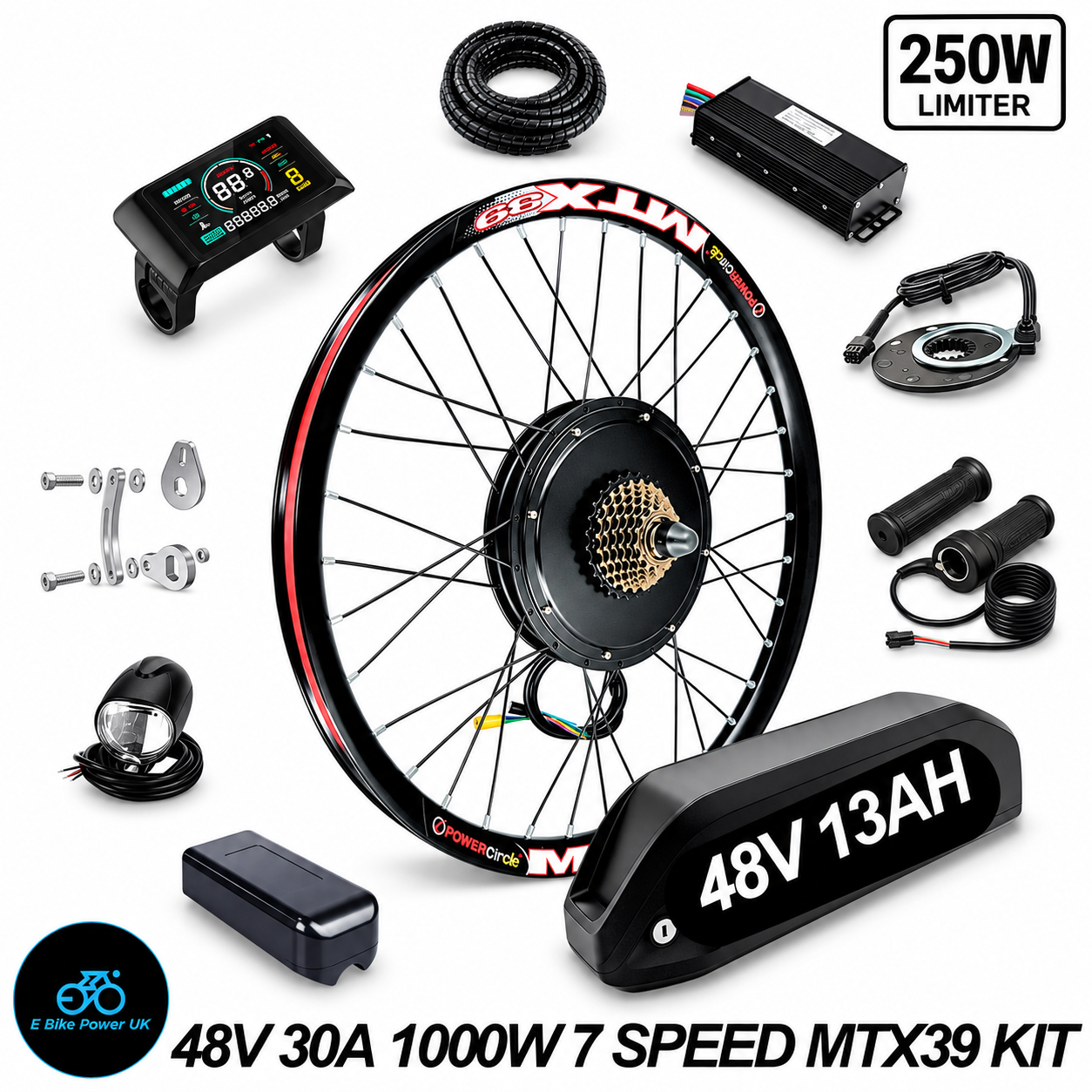

Packing List,

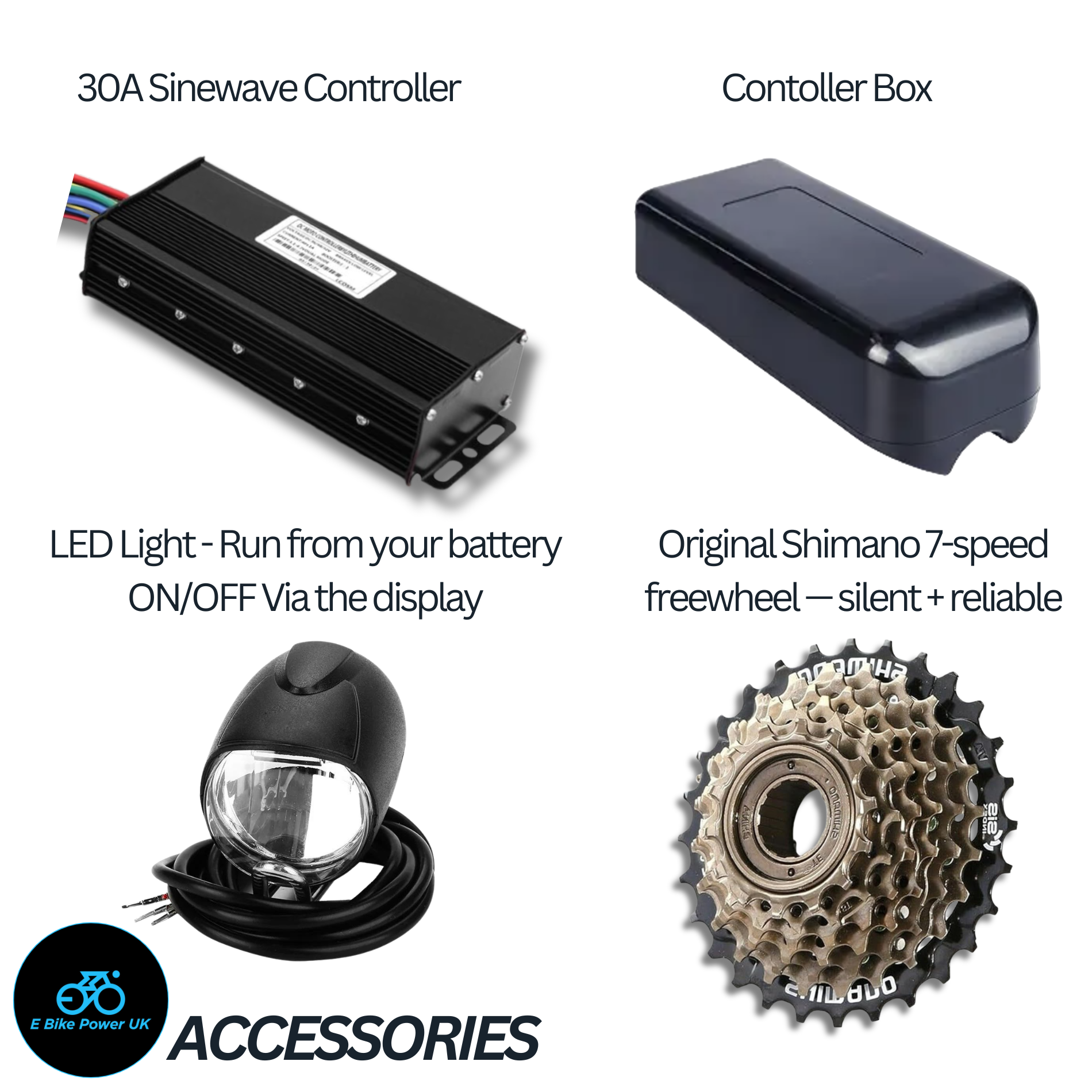

THUMB THROTTLE + 7 SPEED Shimano FREEWHEEL

WILL BE SENT AT DEFAULT

UNLESS STATED

✔️Pay with Klarna 3 months interest free.

✔️PayPal Payment are also accepted.

✔️Screw on Freewheel.

✔️ (7 SPEED IS DEFAULT)

✔️ (Please message) us if you want a different speed.

✔️ Dropout of 135mm

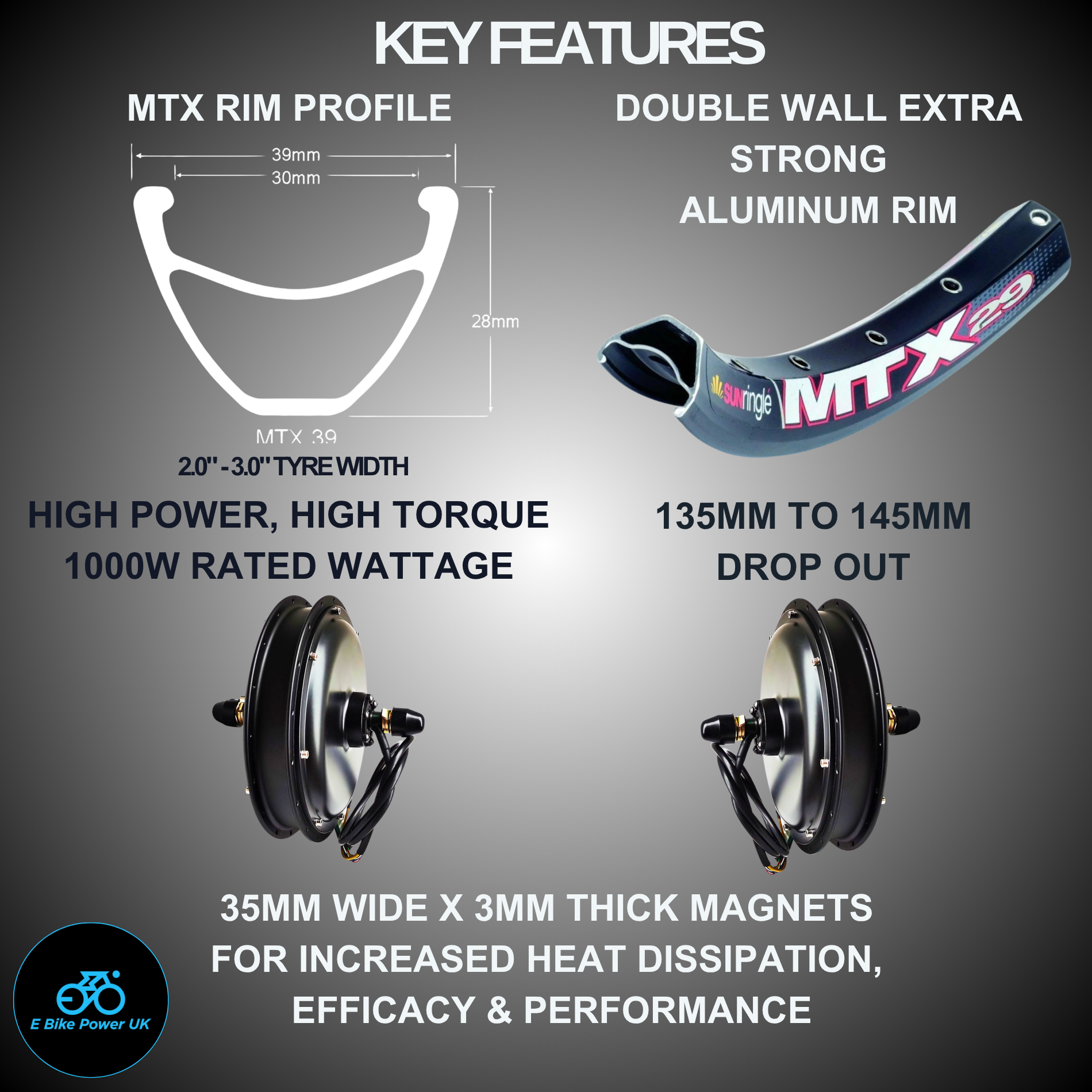

✔️All Black Lightweight Double Wall Aluminium Rim.

✔️All Black 36 Stainless Spokes.

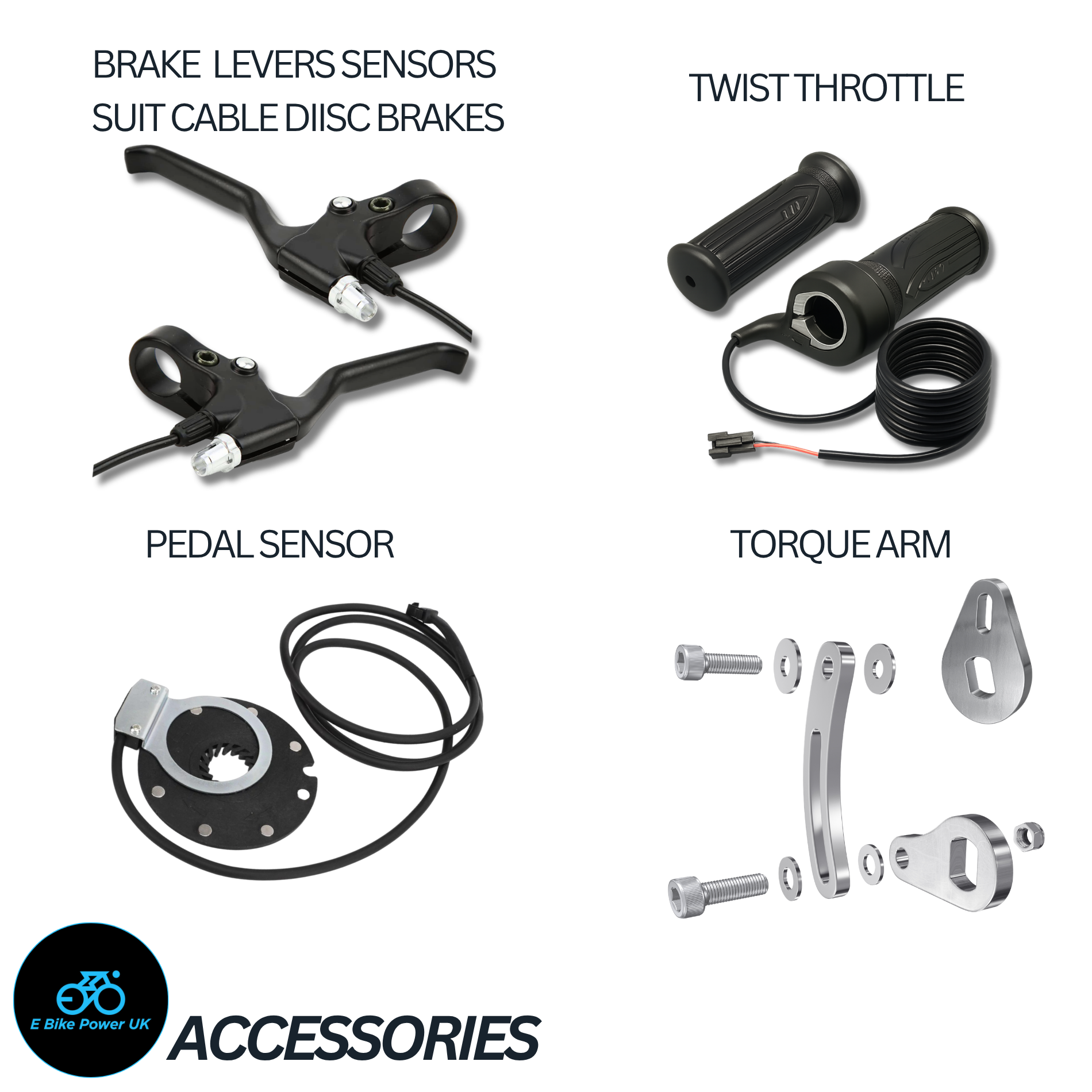

✔️All Black Brake Levers with Cut Out Switch.

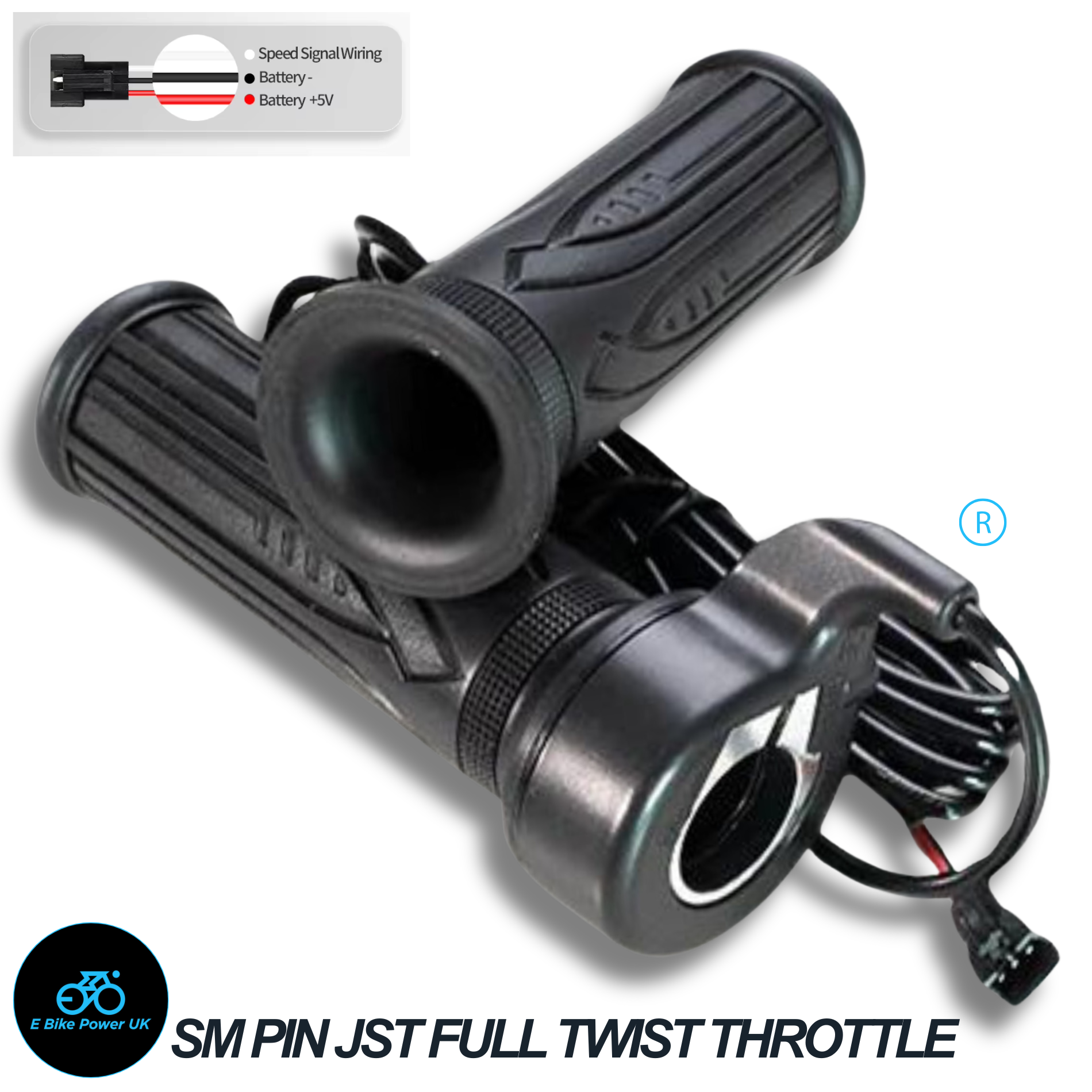

✔️All Black Twist Throttle

✔️Pedal Assist Sensor.

✔️Waterproof Controller Bag.

✔️1 x Steel Torque Arm.

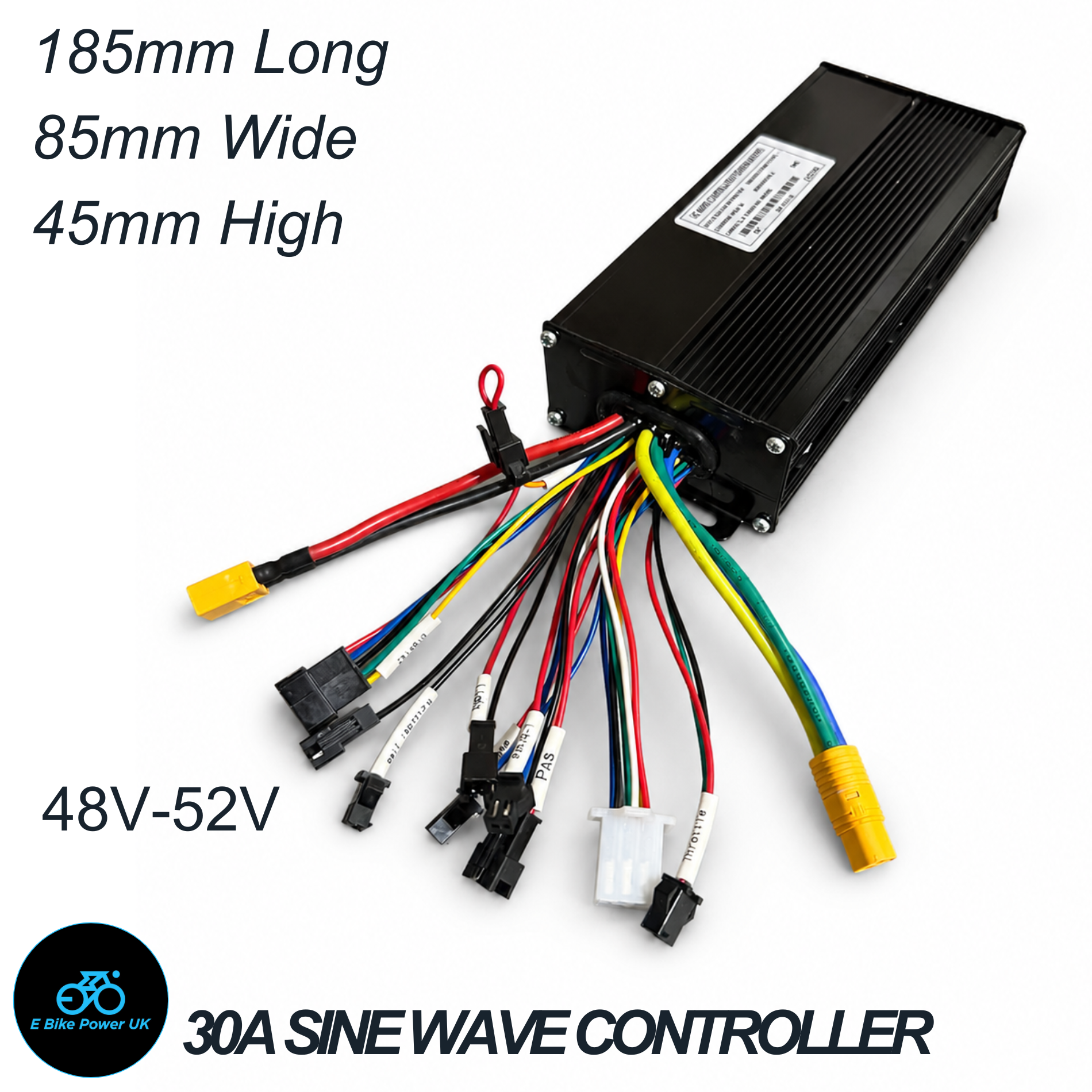

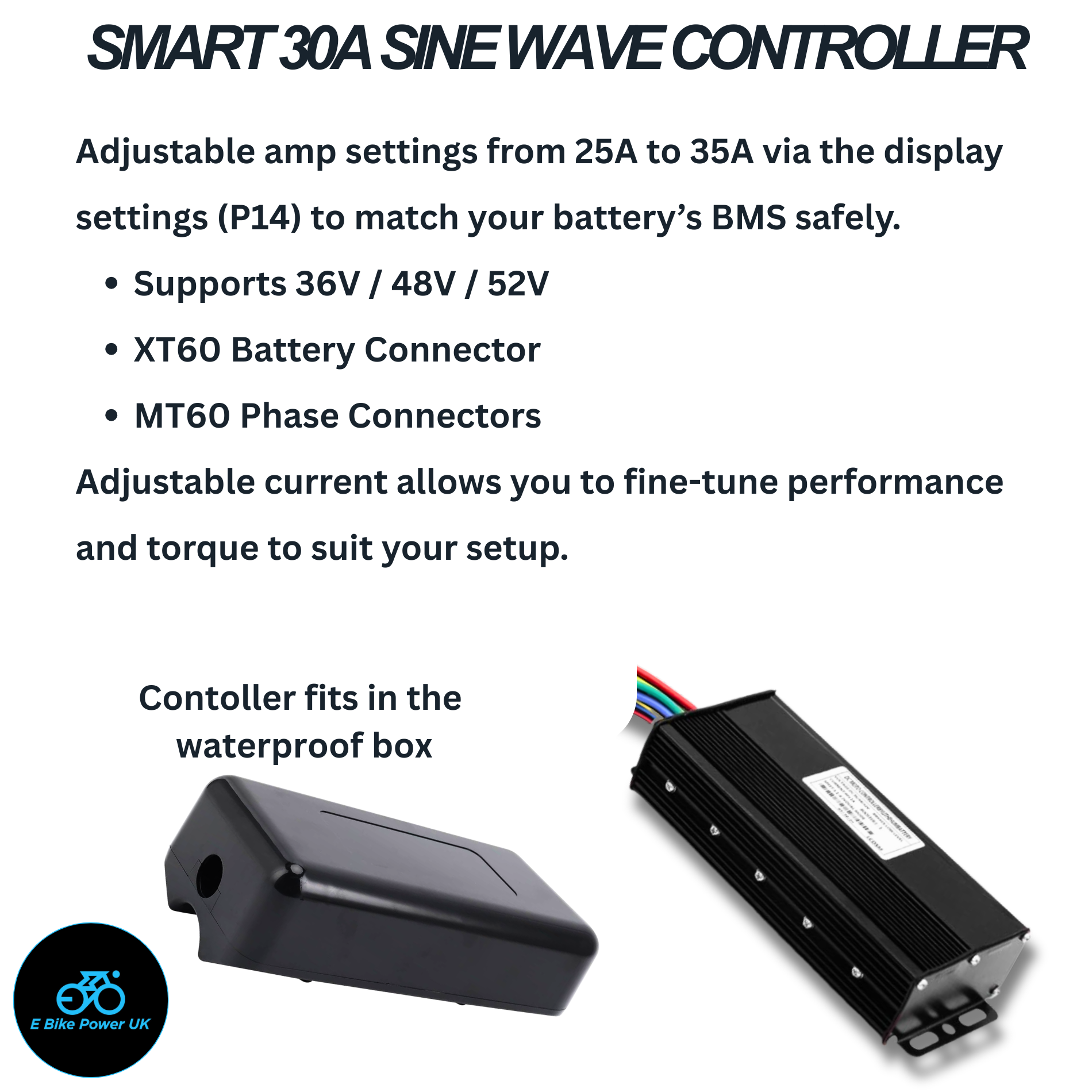

✔️30 Amp DC Moto Sine Wave Controller,

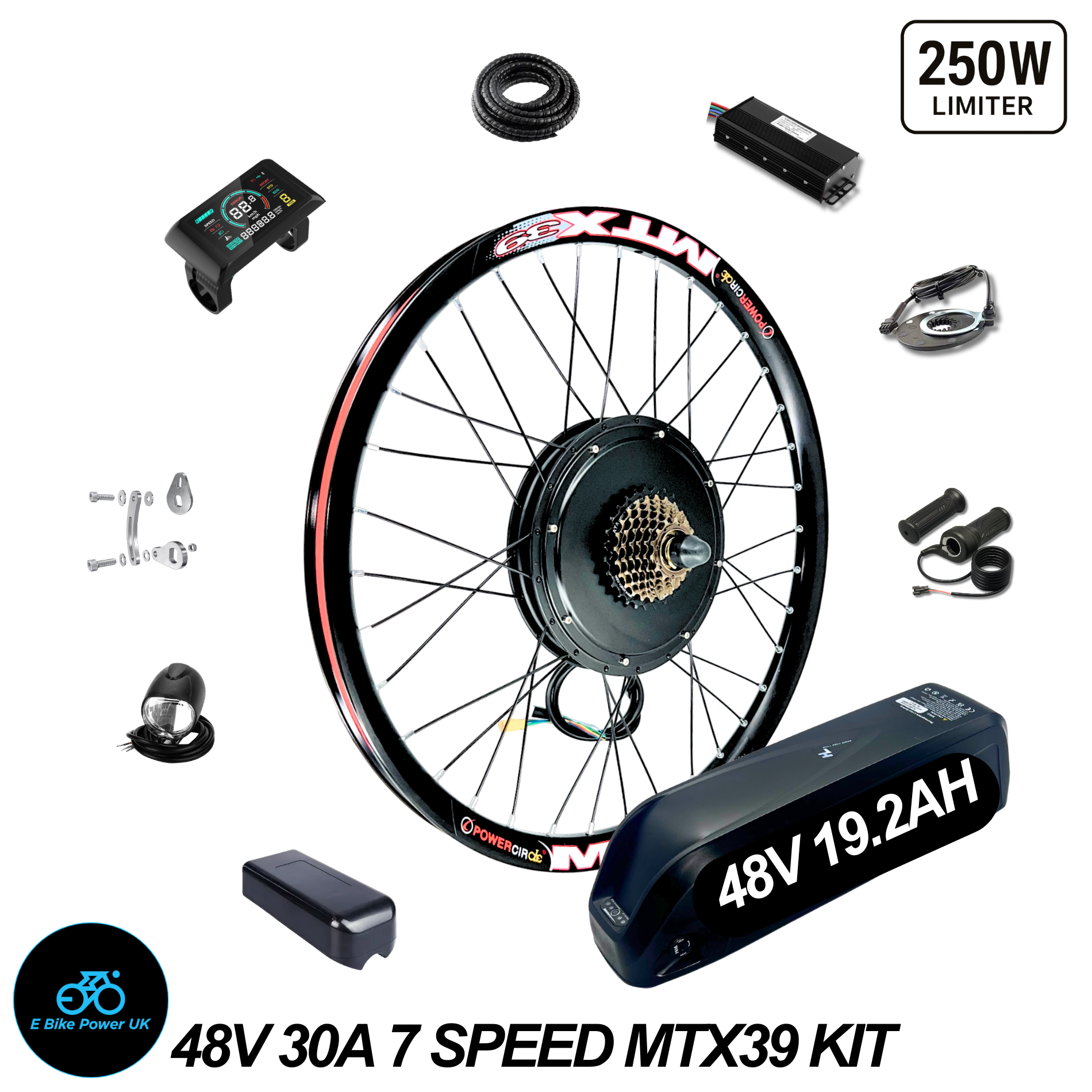

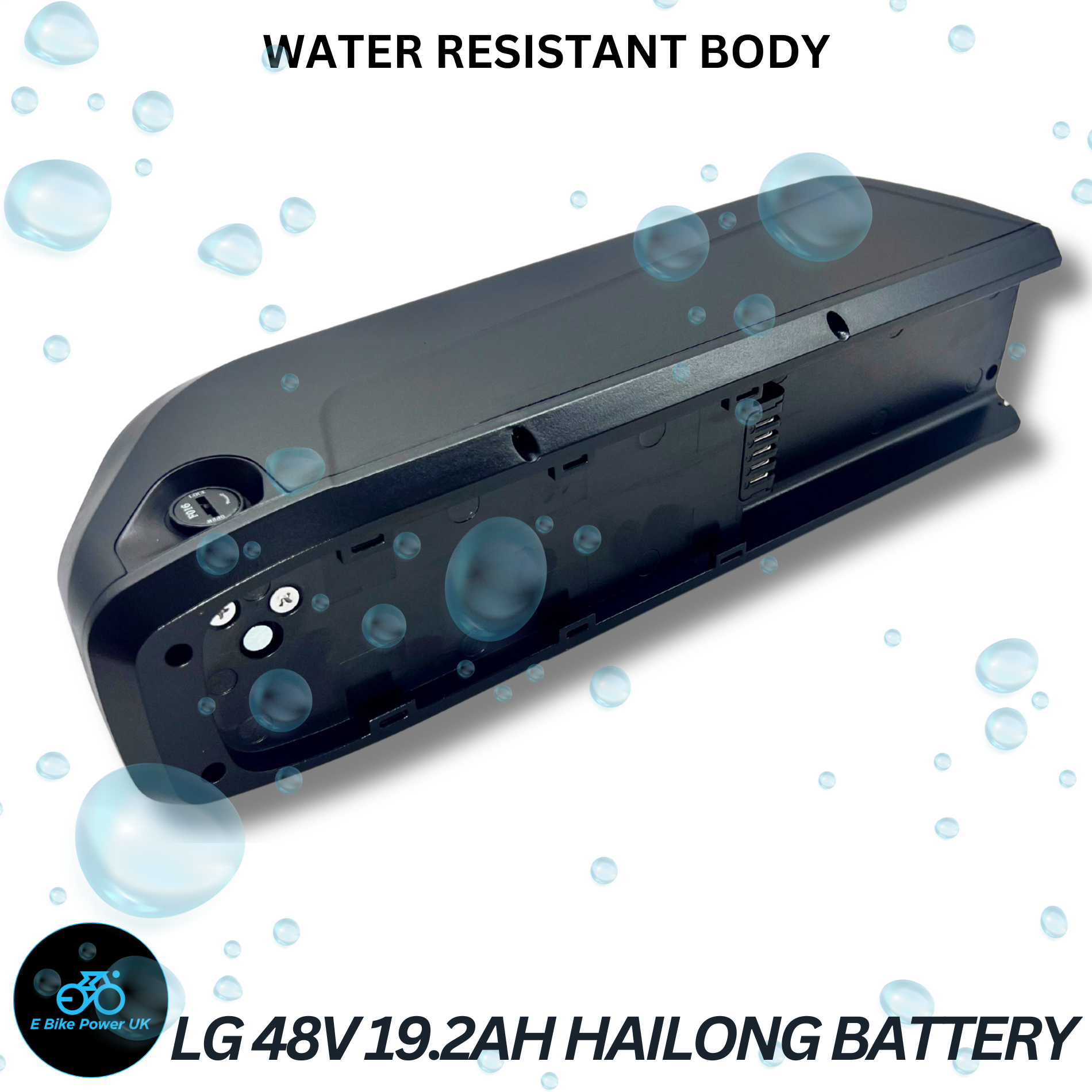

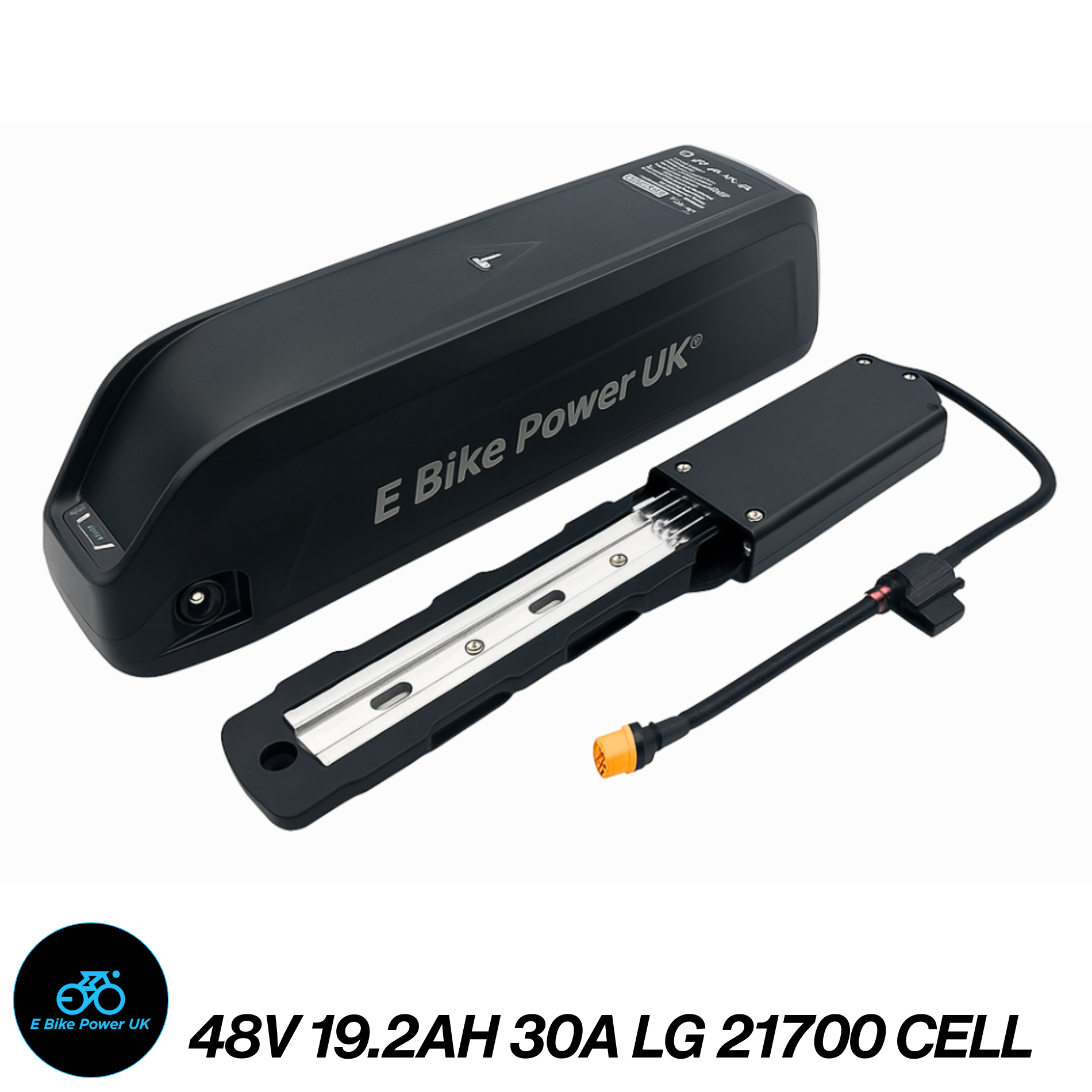

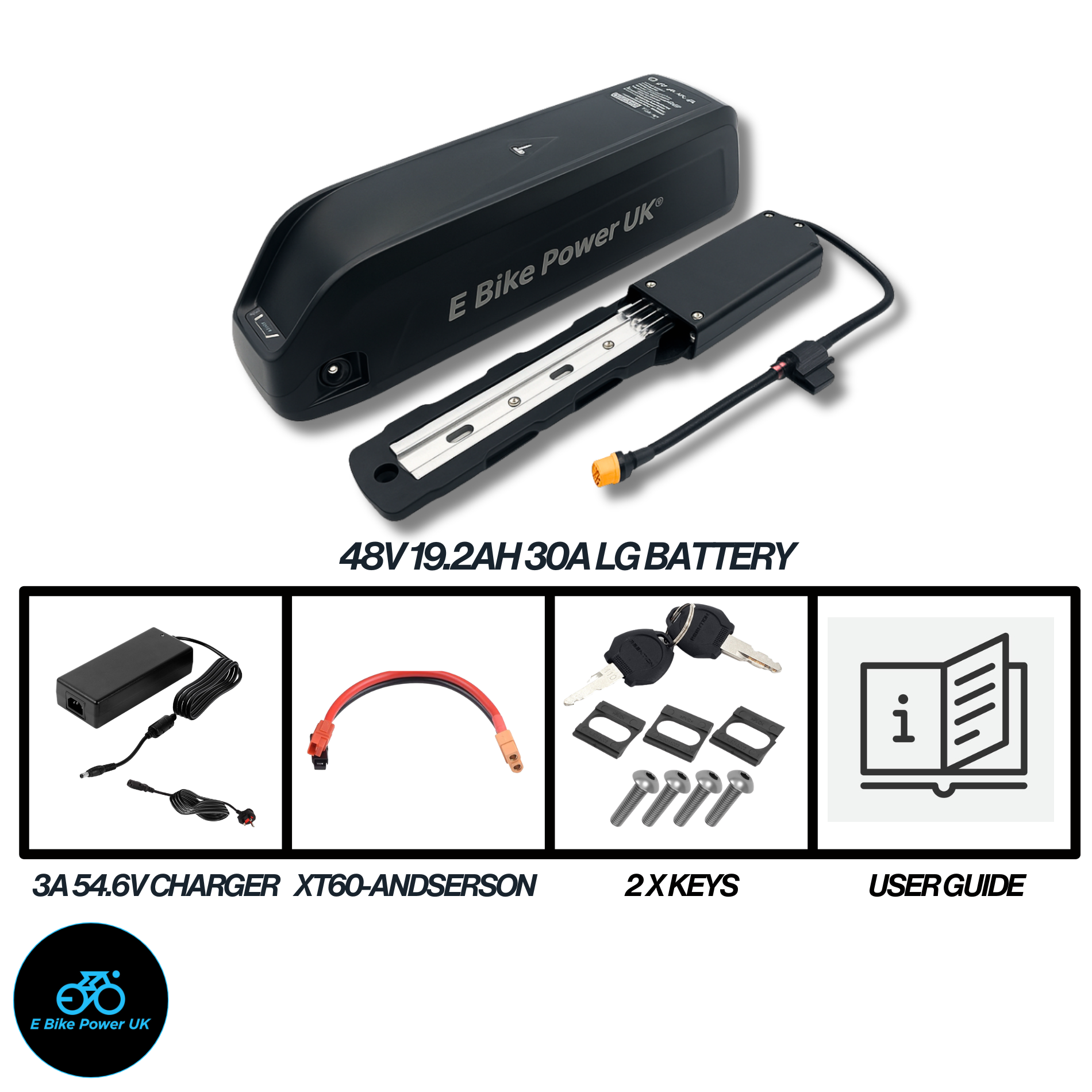

✔️48V 13ah Battery, Battery & Controller both have XT60 connectors.

.As per the images, what you see is what you get!

IF YOU ORDER A BATTERY IT WILL BE SHIPPED SEPARATELY!



Legality

This kit is not road legal.

There is a function on the controller (two blue wires)

This function will limit the bike to approximately 15.5 mph in all power modes.

Please note rider weight will make a differences.

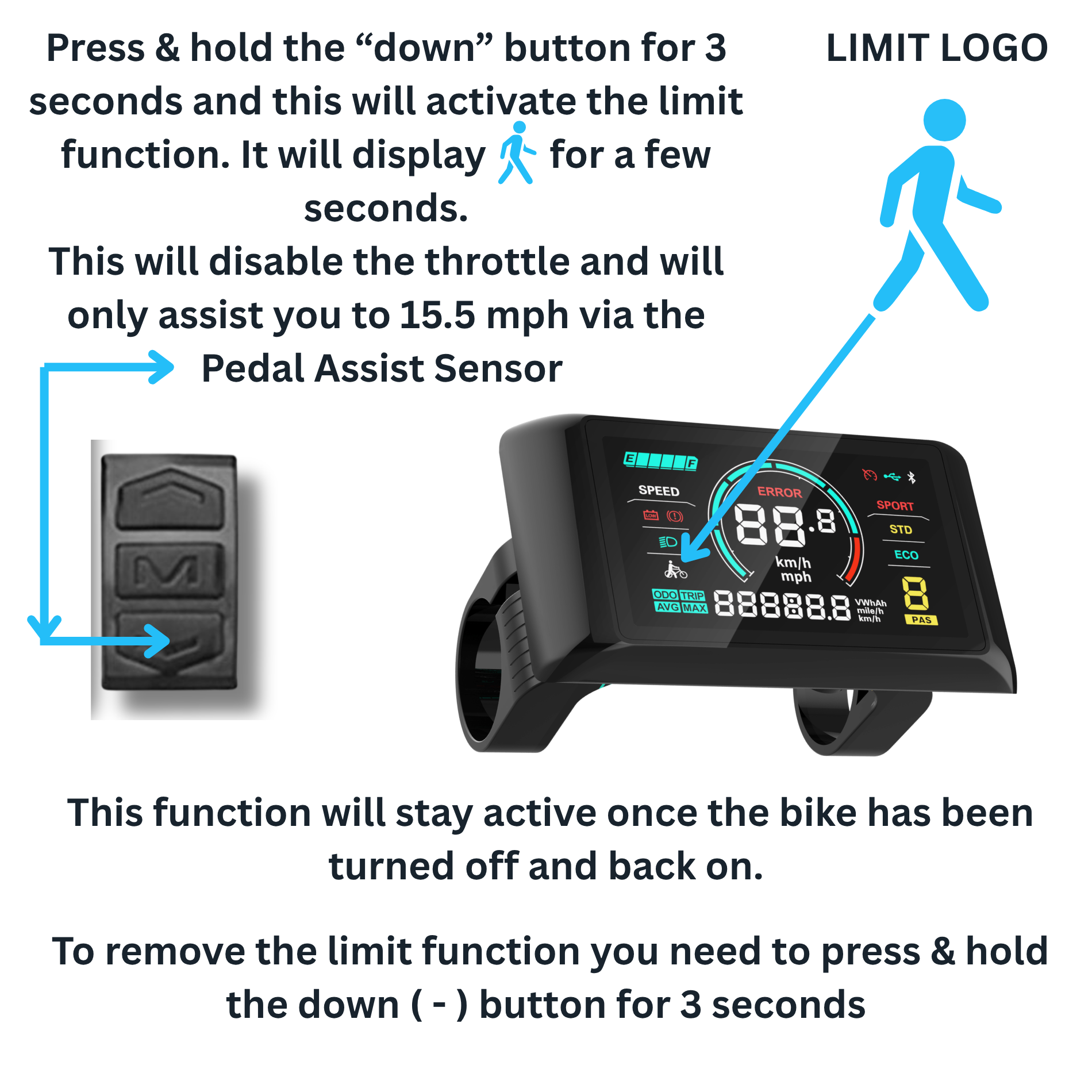

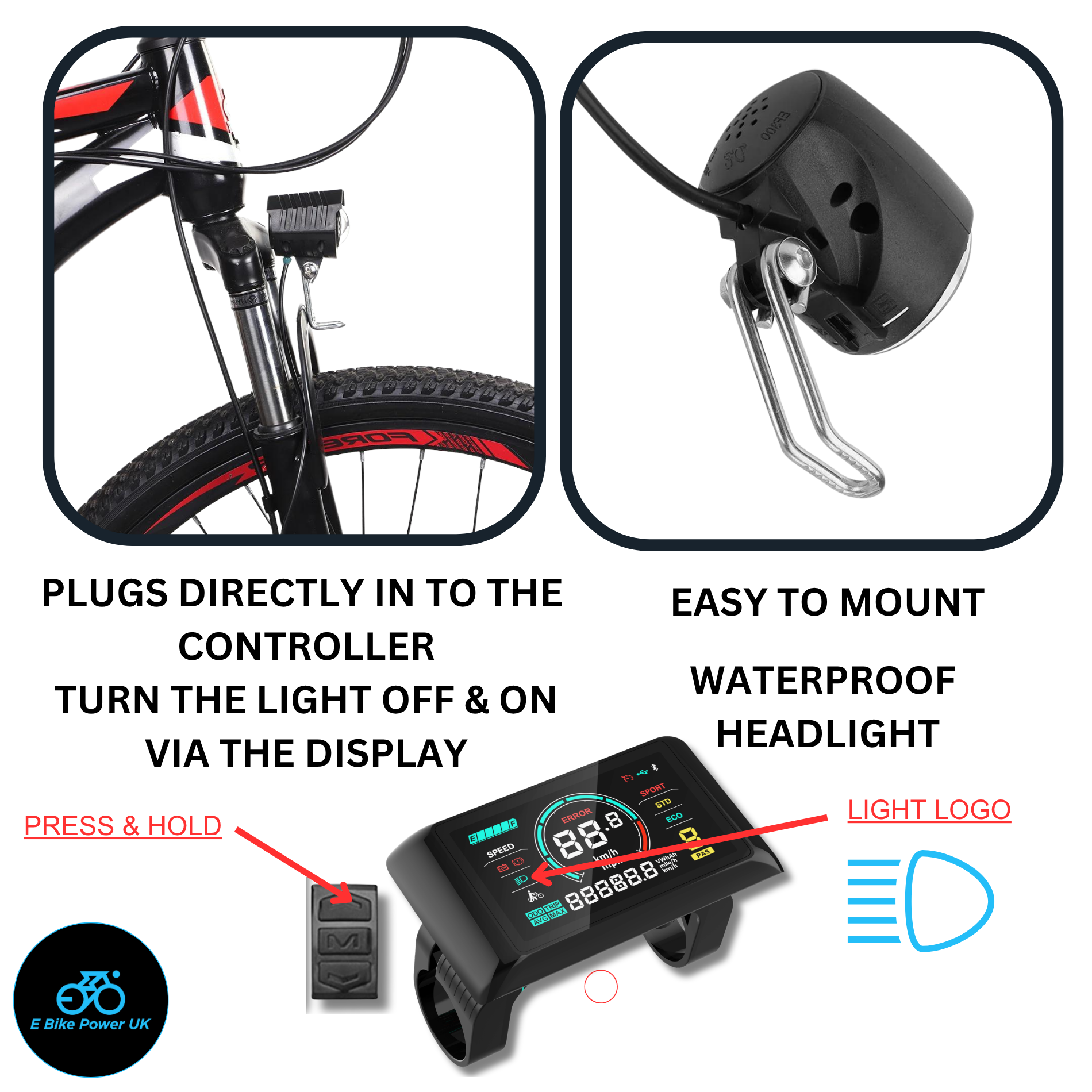

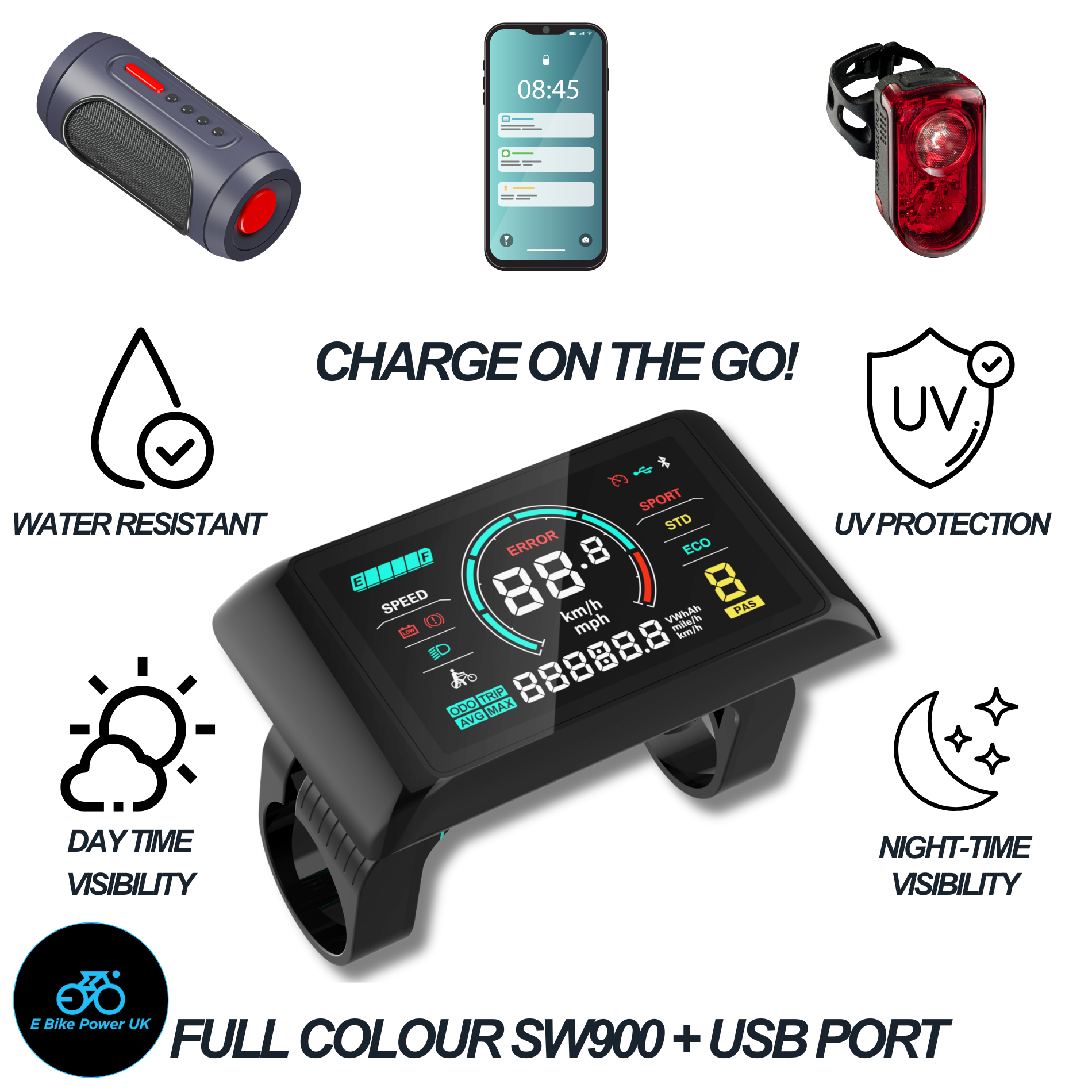

You can disable the throttle via the display

These features help to compile with the UK E-Bike laws



Functions

These kits can be used without.

Magnetic brake Levers, (optional)

Pedal assist sensor, (optional)

You can use throttle only is you wish. We supply all the above in the kit, whether you use all the above or not.



Power & Range

1000W Brushless, Gearless Hub Motor

Tops speeds of 35MPH

15-30 miles depending on how you ride.

Please note rider weight, terrain, whether plays a factor in the performances.



Note,

These kits do take a certain level of DIY experiences to install. There are lots of videos on YouTube to help you out.

Please take your time when installing this kit as this is a DIY kit and all bikes are different.

Make sure you do plenty of research the help guide you to a successful build.



Warranty,

3-month warranty on your kits.

12-month warranty on your battery.

Warranty doesn’t include.

Abuse or water damage.

All warranty repairs are covered by us.

Buyer pays for the shipping.





E Bike Power UK Shop.

Please check out our store, we have many accessories for your DIY E Bike Builds.



Tips & Tricks,

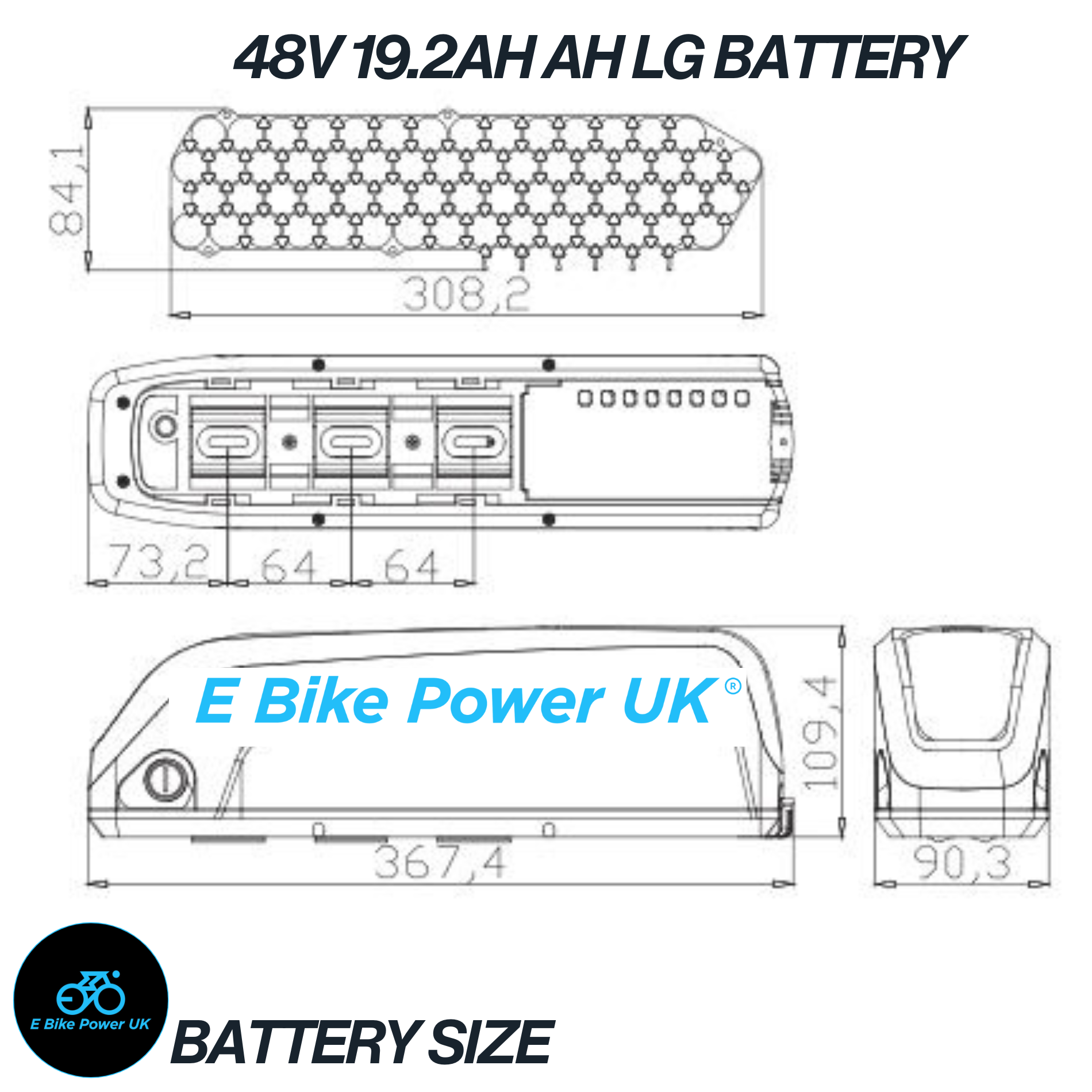

Tip. Please double check the battery will fit your bike.

Tip. Please ensure both axle nuts are tight.

Tip. Please ensure your take care of your motor cable upon installation.

Use good quality cable ties.

Tip. Remove the plastic spacer when installing your disc rota.

Tip. We recommend a 203mm disc rotor and adaptor plate on the rear as the hub motor is big and it’s possible it may rub on your rear brake calliper.

Tip.

Tip. Use a slime inner tube. Just makes it better is you get regular punchers.

Trick. Remove your brake calliper before you install your wheel. This makes it easier.

Tip. You will need a crank removal tool to remove your crank if you are fitting the Pedal Assist Sensor.(This is supplied)

WE SELL THIS IN OUR STORE.

TIP. Use thread lock on your disc rotor bolts. This will prevent your disc rotor bolts coming loose and damaging the power cable to the motor.

TIP. the wheels spokes may relax. You may need to tighten some spokes after a test ride.

TIP. We recommend fitting the torque arm supplied (this kit comes with one)



MAINTENANCES.

Please do regular checks on your bike.

Axle nuts & torque arms are tight.

Motor cable is clear from the disc rota.

Coat your wheel in GT85. This helps to protect it from any corrosion.

We recommend that you always take care of your DIY e-bike build for longevities, safety & a reliable bike.





Shipping,

Your battery is shipped separably to your kit.

You will receive two boxes.

All orders will be fully inspected & tested prior to dispatch. You order will be shipped within 24 hours of cleared payment.

We Use DPD, UPS, Parcelforce & Royal Mail this all depends on your whereabouts within the UK & the size of your order.

All orders are full tracked.

If you need a weekend delivery, please ask as we can do this for you.

HOWEVER, THERE IS AN EXTRA CHARGE



Help,

If you have any doubt, please contact us!

We will be sure to help!



Shipping,

All order will be processed as shipped within 24 hours.

Please allow 2-3 days for delivery

Our aim is to deliver your order as fast as possible.



Returns,

We offer 14-day return policy.

We do hope you are happy with your purchase.

If in an invent you need to return your order.

Please contact us within the 14-day period.

This item MUST be in an unused condition with all components and accessories present.

ALL RETURNS ARE AT THE BUYER COST!

Thank you for your time E Bike Power UK.
