⚡ 2000W Rear E-Bike Conversion Kit ⚡

New Launch Product by E Bike Power UK®

Premium rear hub motor kit with UKC1 Plus limiter, 50A sinewave controller, cassette or freewheel axle options, and multiple battery choices.

🚴 Motor & Wheel Options

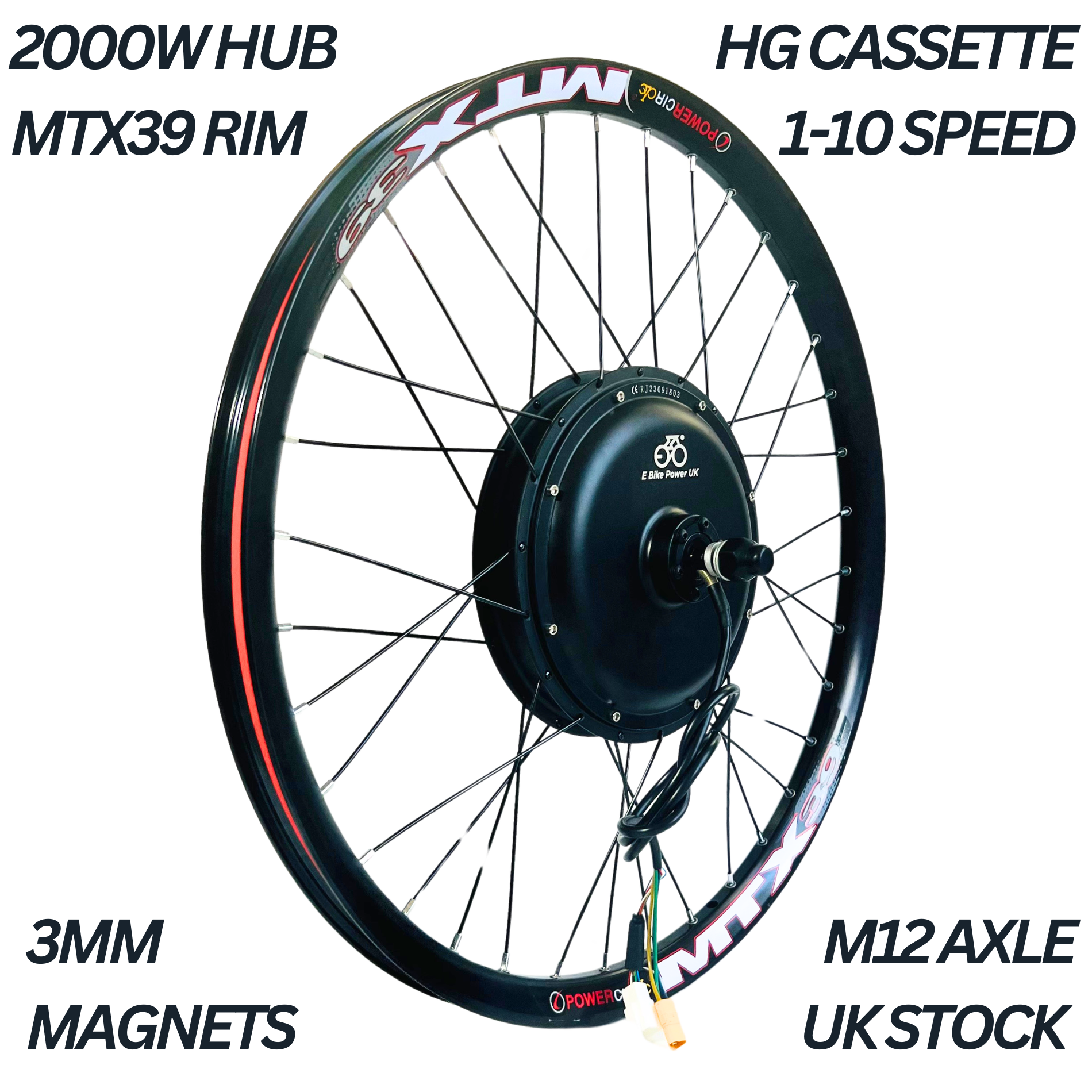

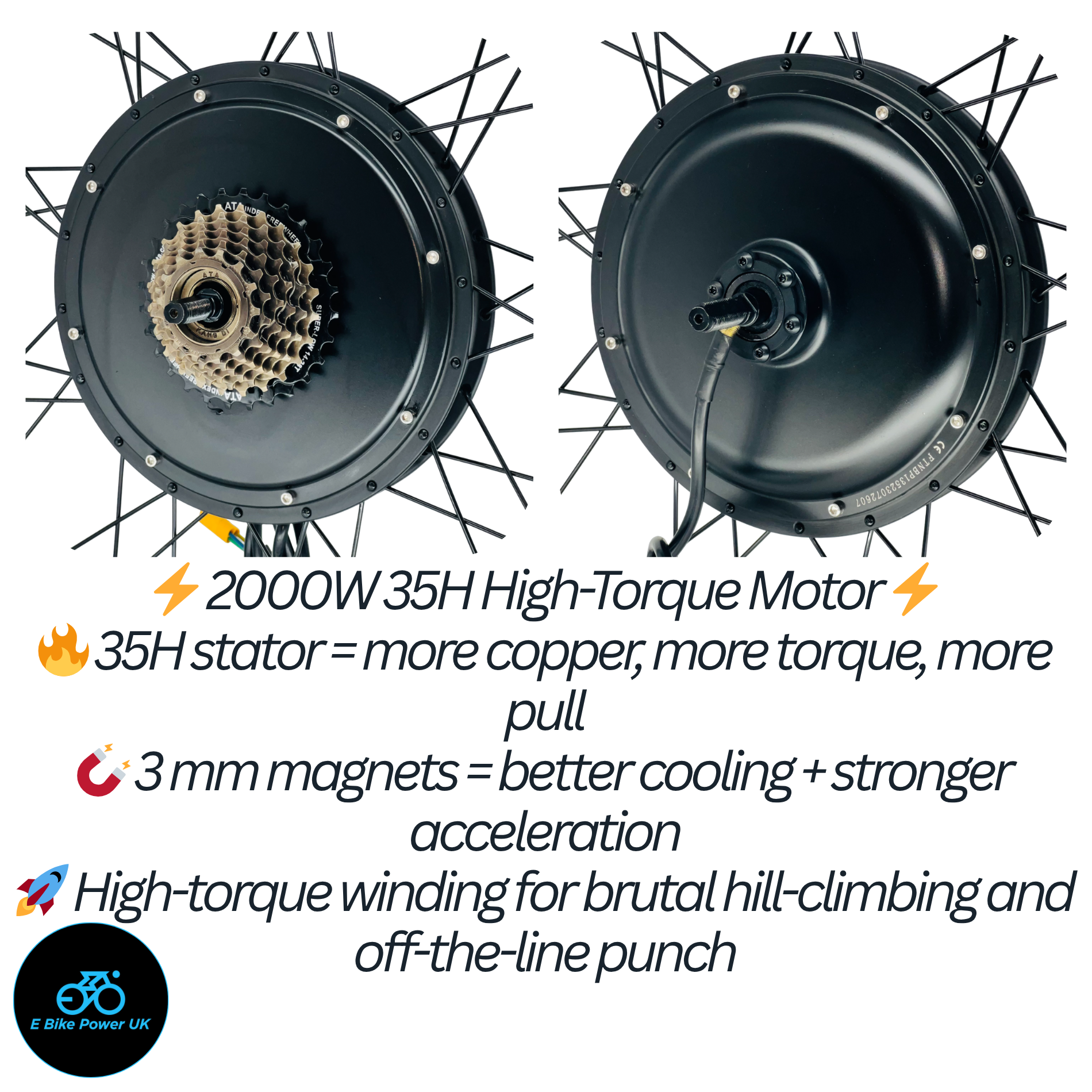

• 2000W rear gearless hub motor
• 35mm wide magnets with 3mm thick magnet design

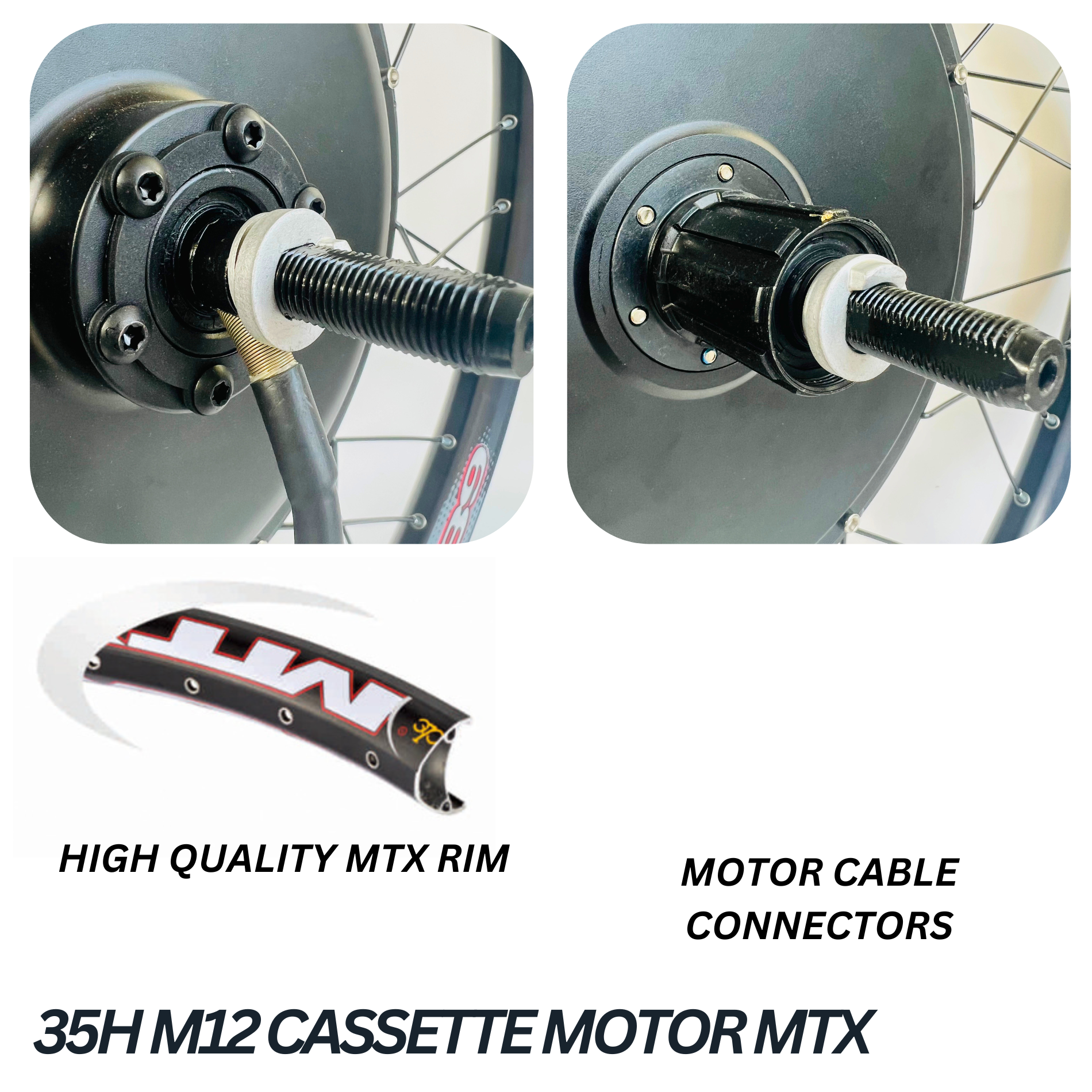

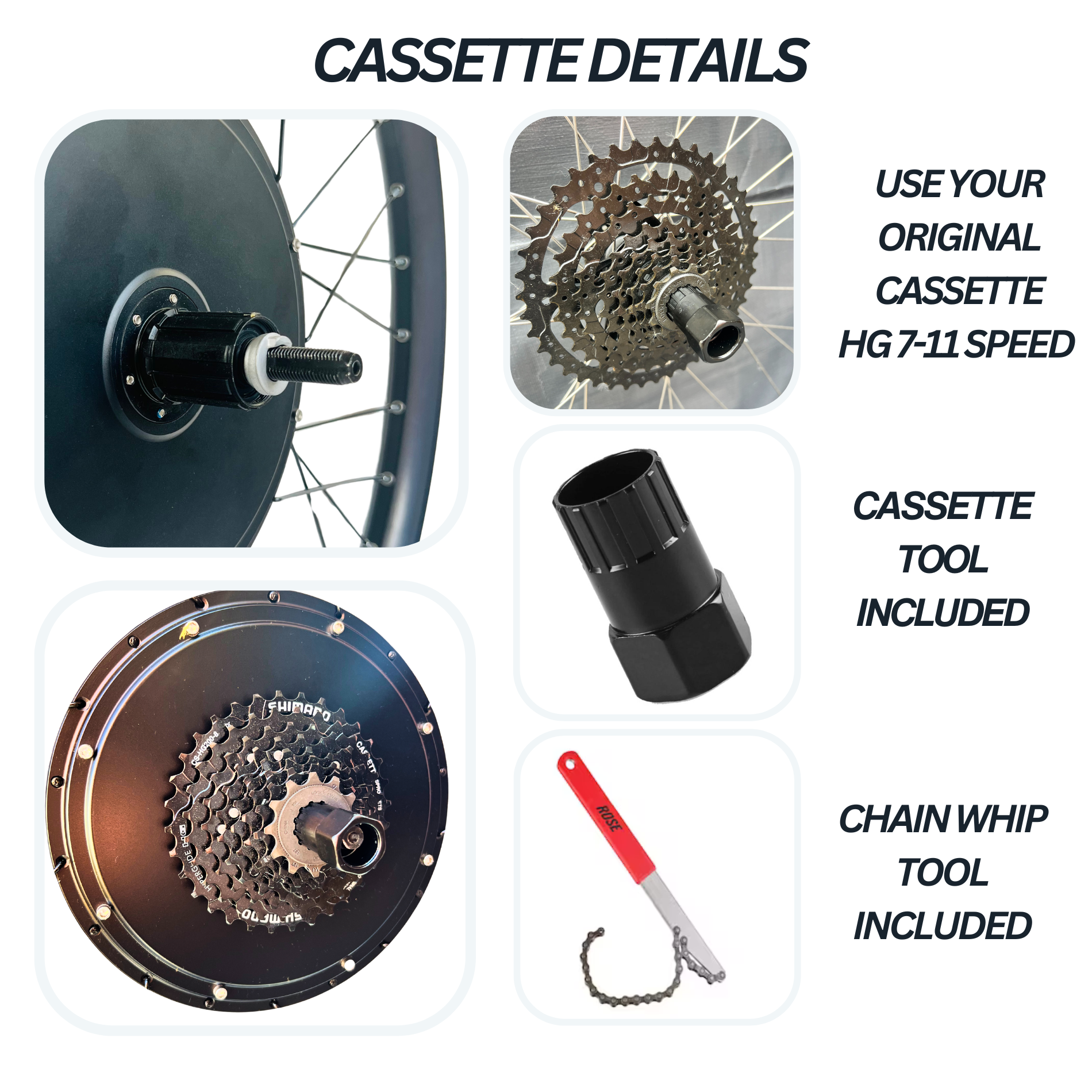

• M12 cassette axle option – suitable for 1 to 11 speed cassette setups with HG style Shimano hub body
• M14 freewheel axle option – supplied with a 7-speed freewheel pre-installed
• Double wall anodised black MTX39 aluminium rim
• Black stainless steel spokes with stainless steel nipples

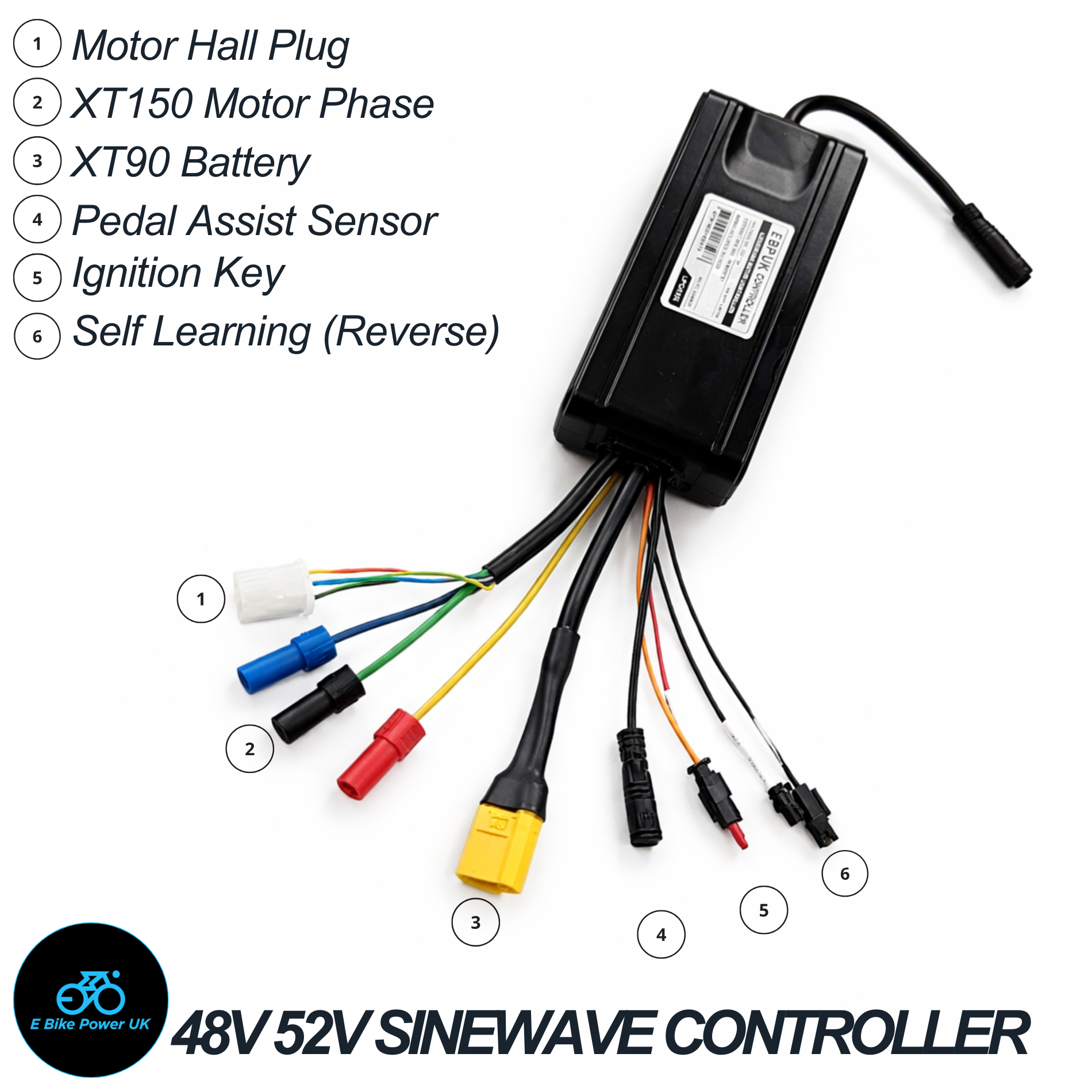

⚙️ Compact 50A Sinewave Controller

The kit is supplied with a small, compact and powerful 50A sinewave controller, designed to deliver smooth acceleration and strong performance.

• ✅ Compact design for cleaner installation
• ✅ Designed to mount to the seatpost tube
• ✅ Supplied with mounting bracketry
• ✅ Can also be enclosed inside the supplied waterproof controller box
• ✅ Smooth sinewave power delivery for a better riding feel

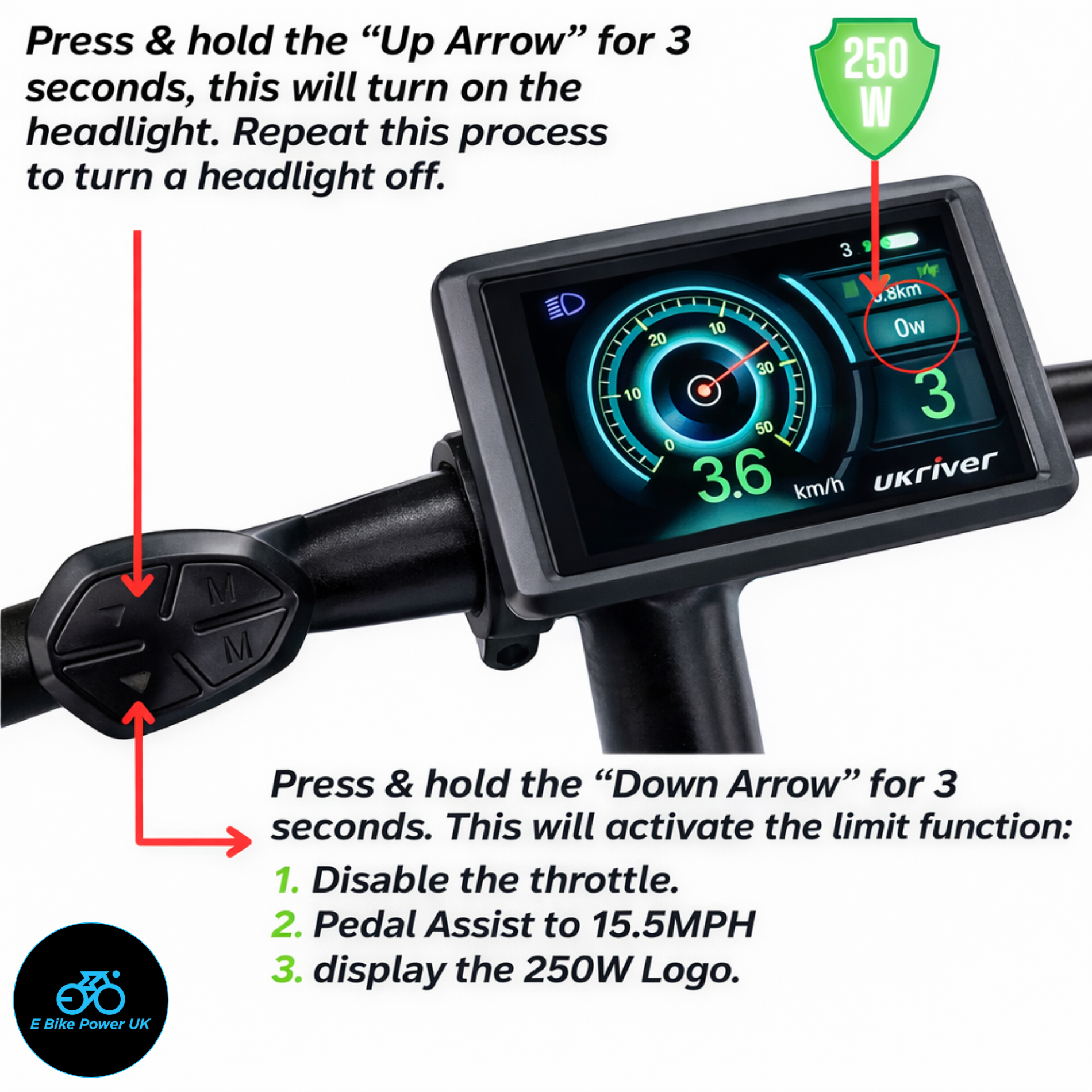

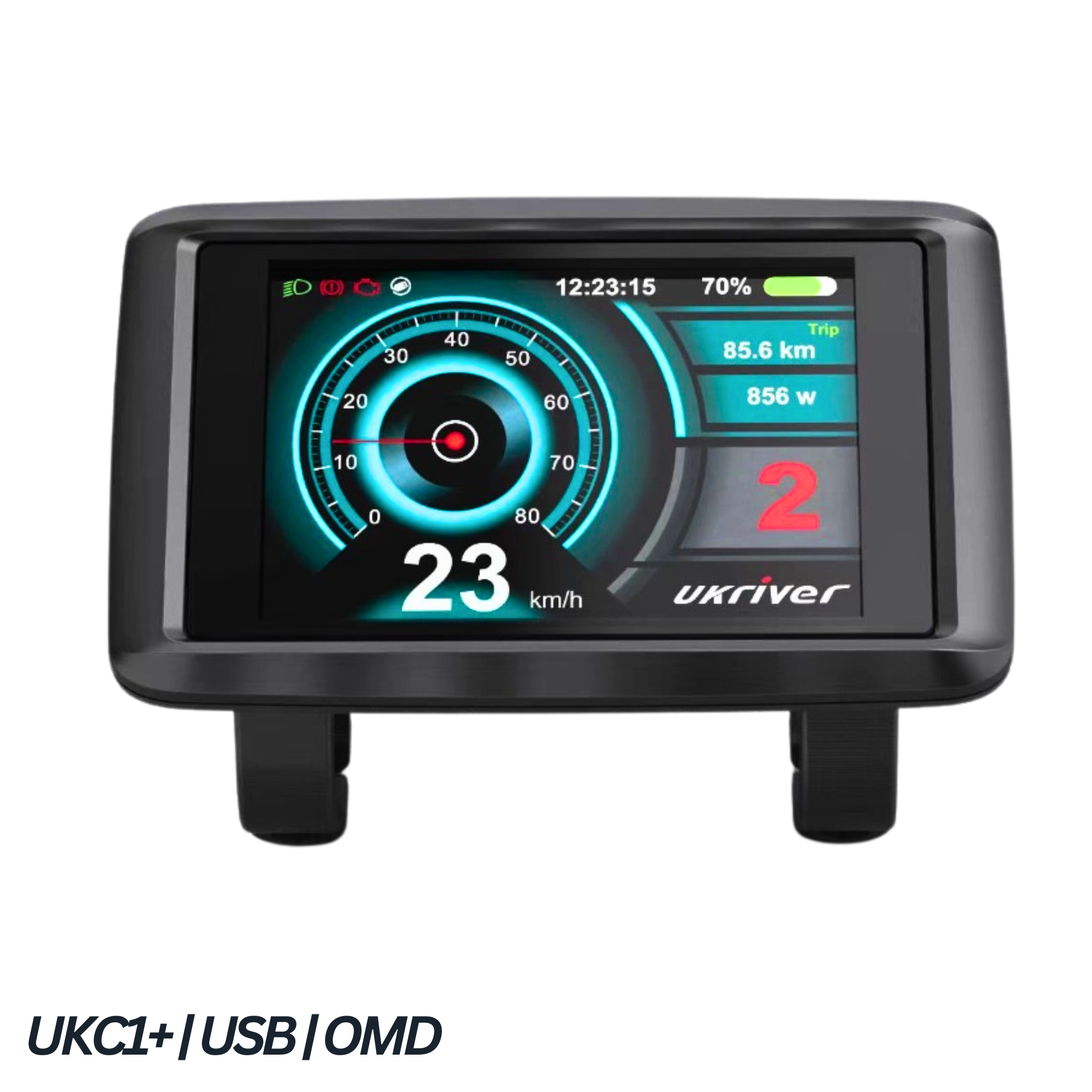

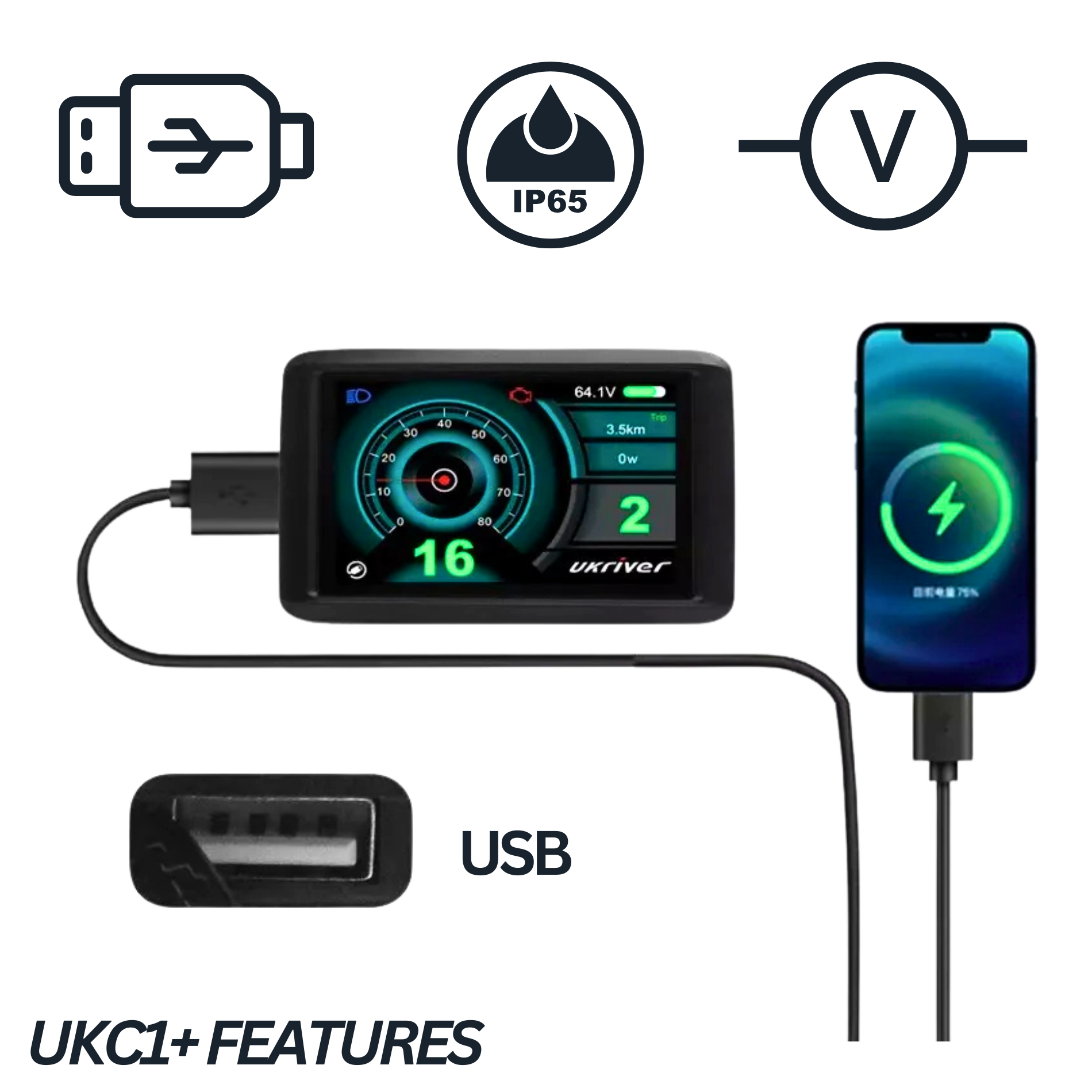

🎛️ UKC1 Plus Display Limiter

The kit comes with the UKC1 Plus display, which includes a built-in limiter option.

Press and hold the minus button for a couple of seconds to activate limiter mode:

• ✅ Throttle limited to approximately 6km/h
• ✅ Pedal assist limited to 25km/h / 15.5mph
• ✅ Designed to HELP comply with UK e-bike laws

⚠️ Out of the box, this kit is intended for off-road/private land use.

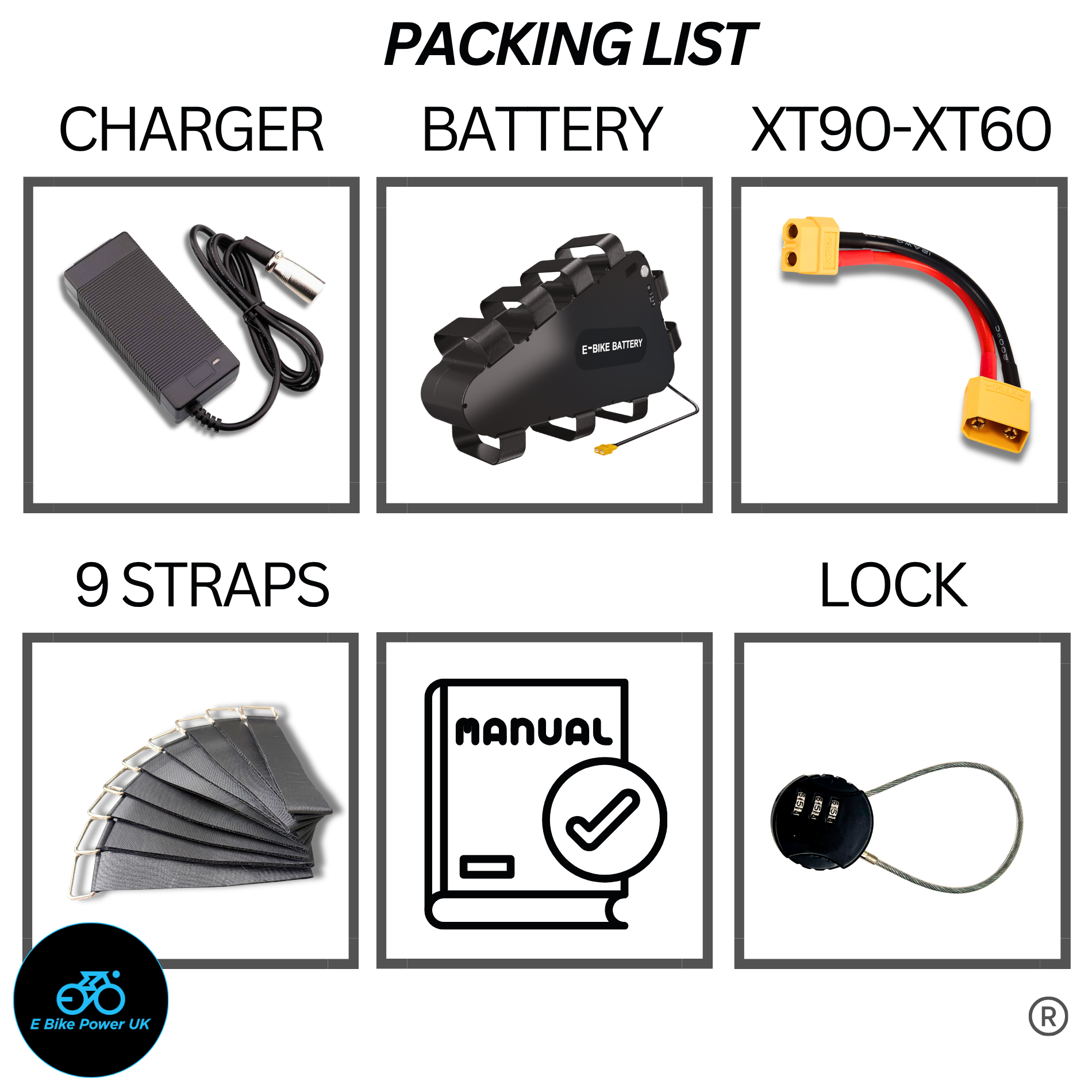

🔋 Battery Options

• Kit Only – no battery included
• 48V 30Ah Battery – 50A BMS + 4A charger

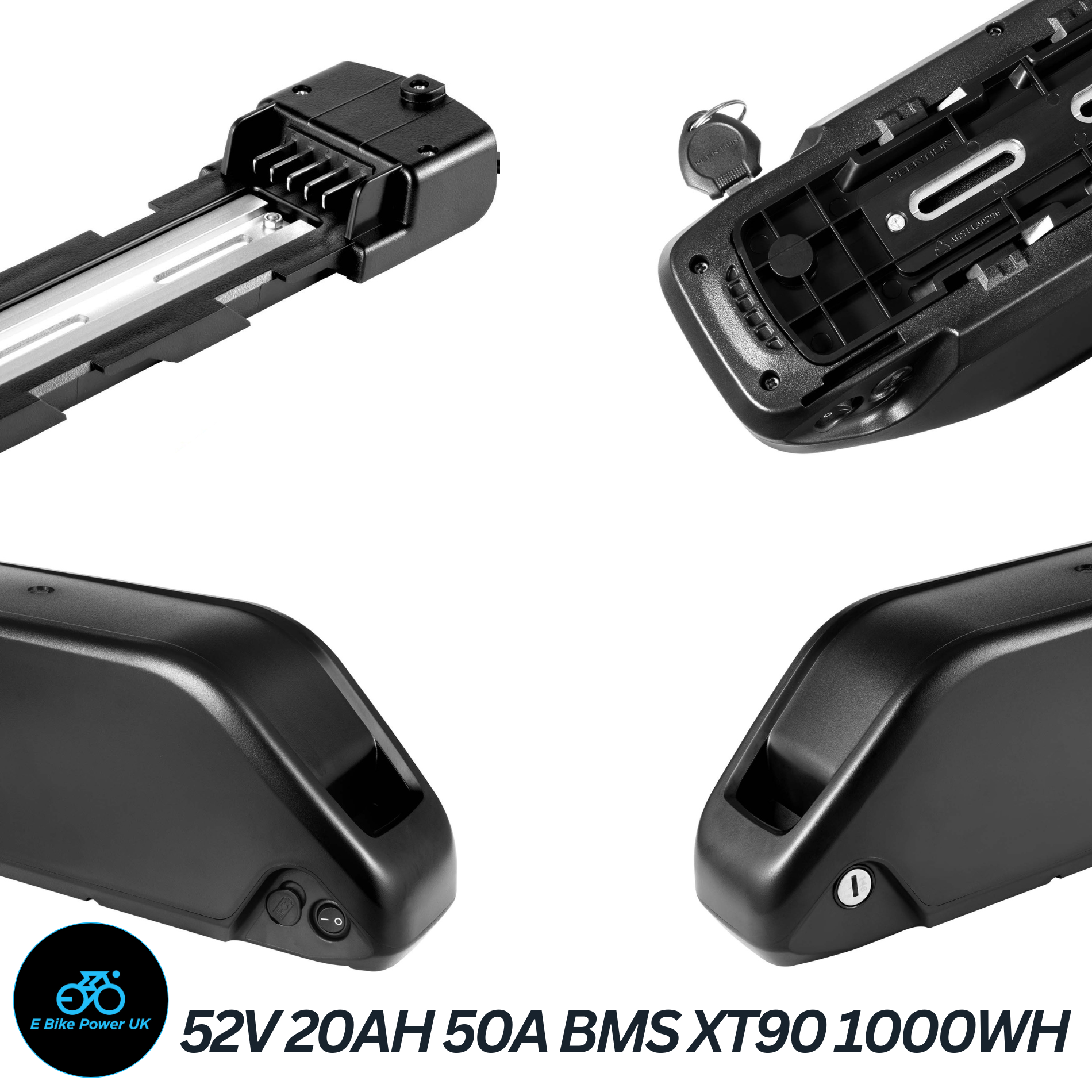

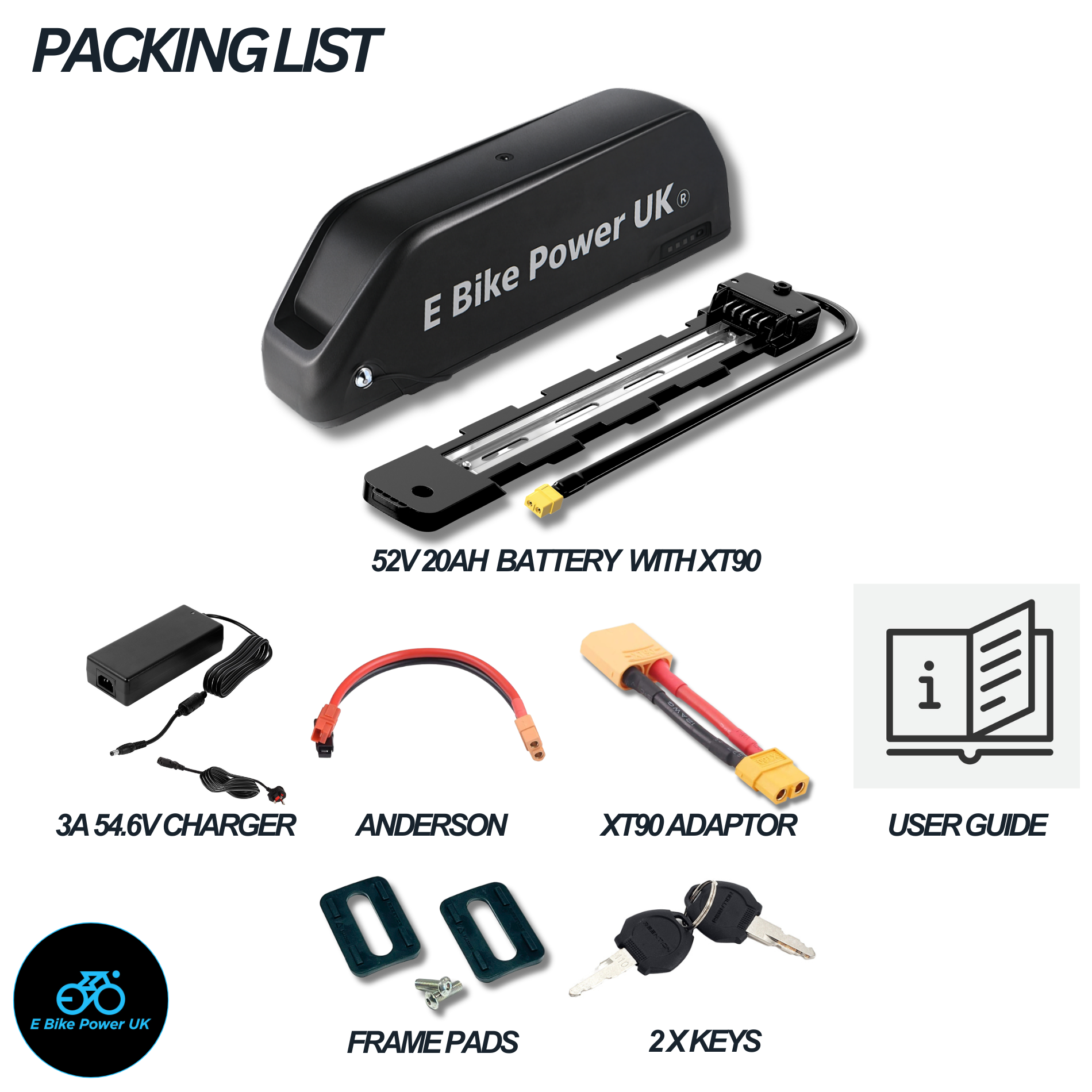

• 52V 20Ah Downtube Poly Style Battery – 50A BMS + 3A charger

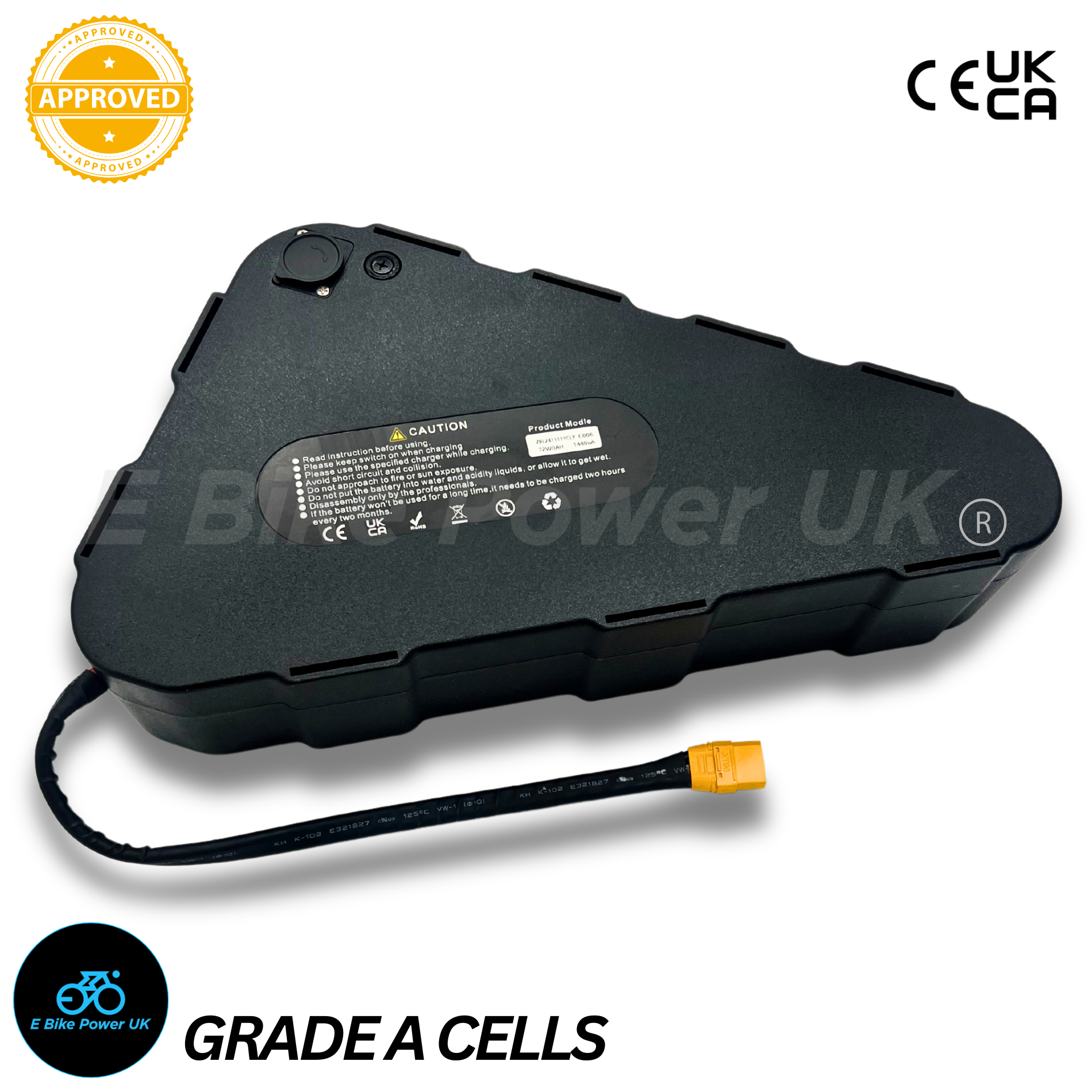

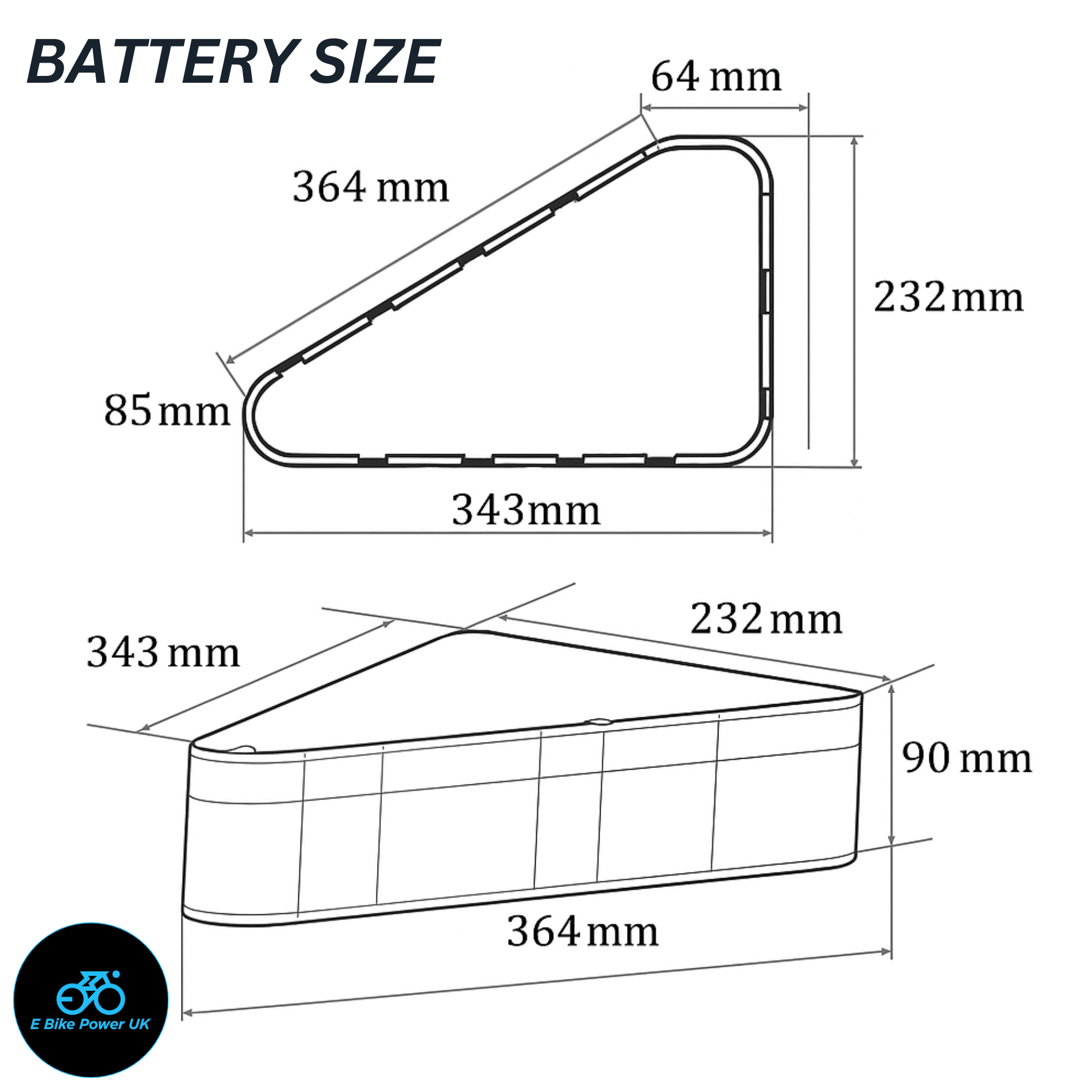

• 52V 28Ah Triangle Battery – 50A BMS + 4A charger
• Premium Grade A 21700 50GB cell upgrade – made to a high standard for quality, performance and longevity

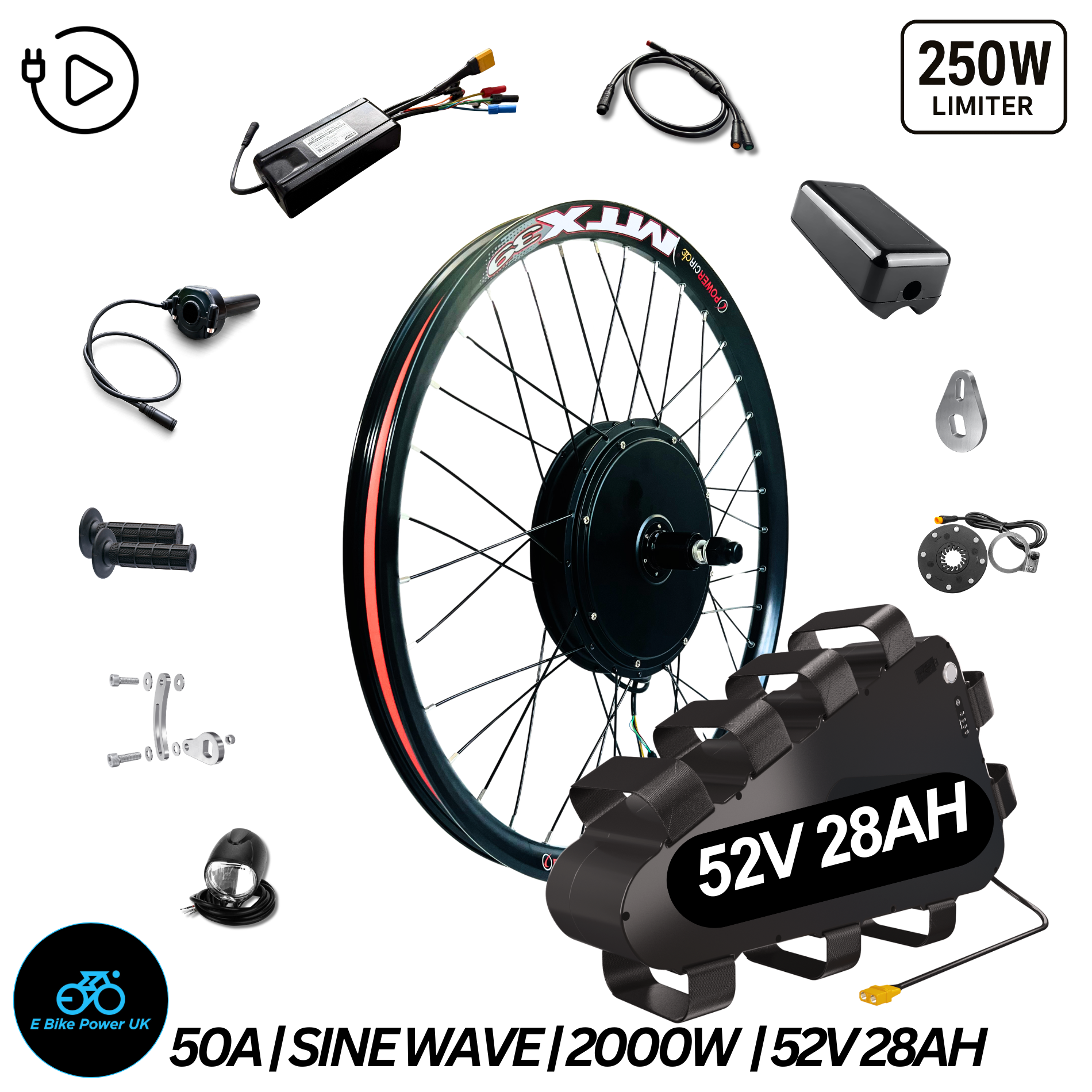

📦 What’s Included?

• 2000W rear hub motor wheel
• Choice of M12 cassette or M14 7-speed freewheel version
• 50A sinewave controller
• UKC1 Plus display with limiter function

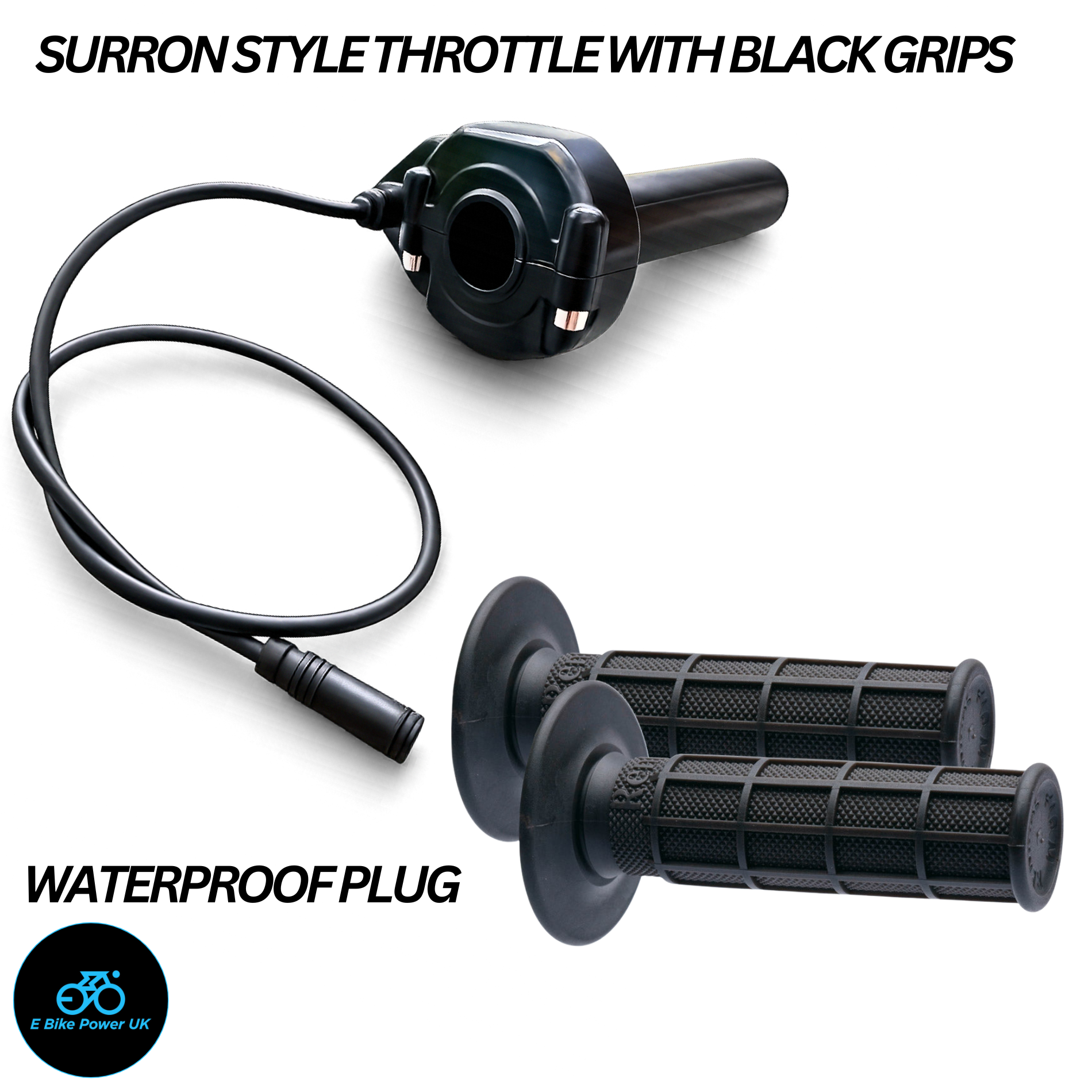

• Suron style full twist throttle with waterproof plug
• Black waffle grips

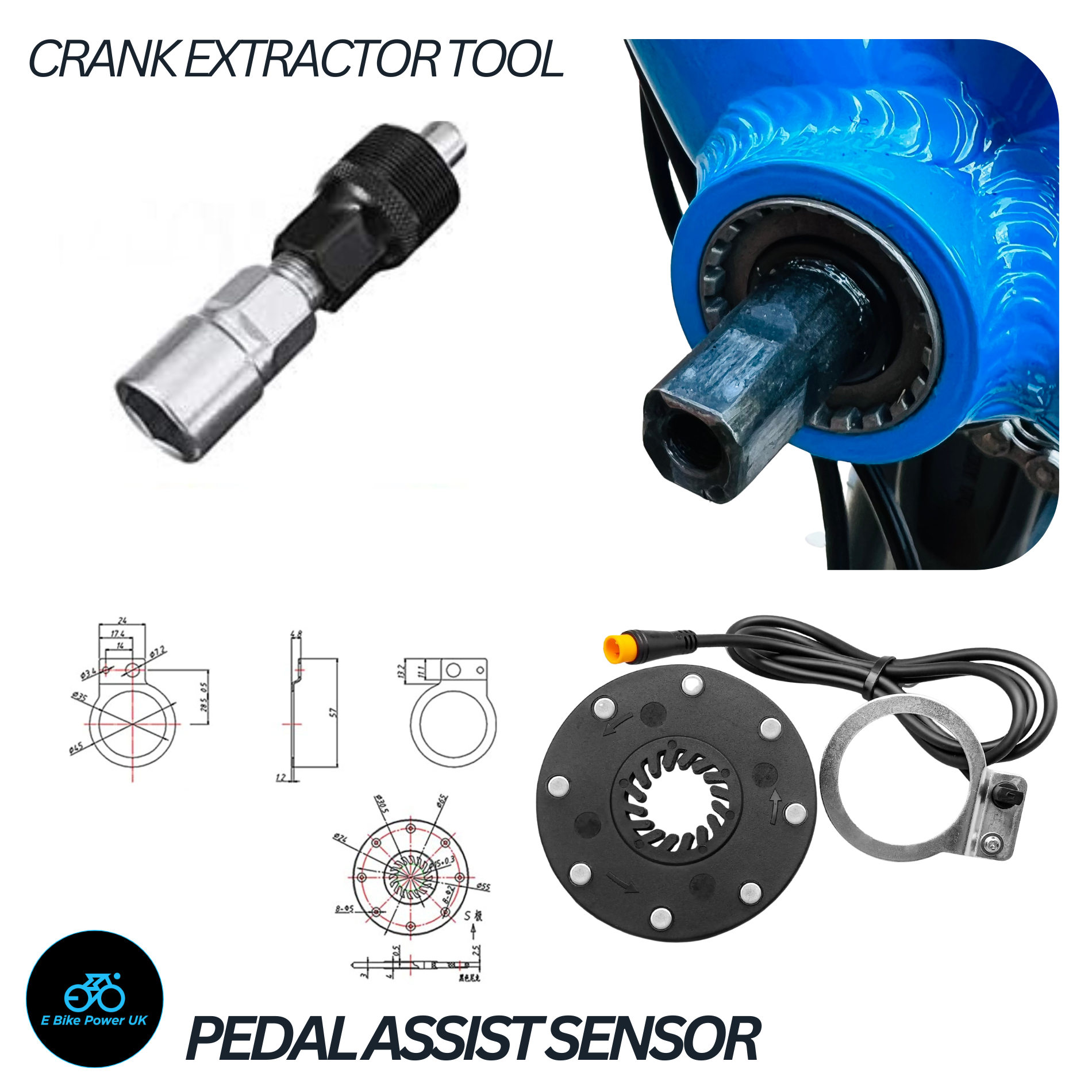

• Pedal assist sensor
• Double wall aluminium black MTX39 rim
• Black stainless steel spokes with stainless steel nipples
• Cable ties
• Crank removal tool
• Cassette removal tool
• 4 x stainless steel custom torque arms designed by E Bike Power UK®
• 2 x one-piece teardrop style torque arms
• 2 x two-piece torque arms
• 3-to-1 data cable with waterproof plugs for cleaner cable management

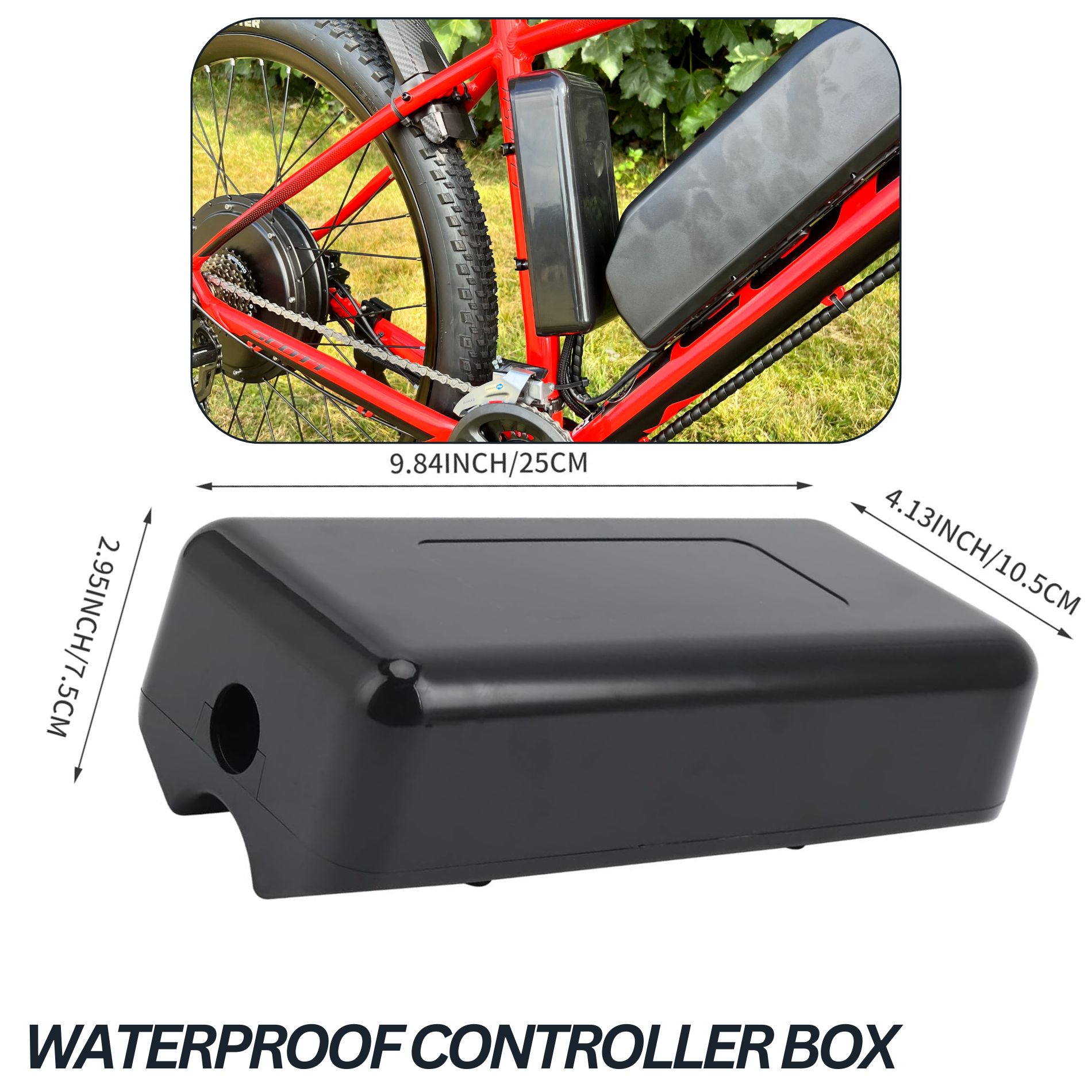

• Waterproof controller box
• Optional battery bundle depending on selected option

⚠️ Please note: Brake sensors are not included with this kit. If required, they can be purchased separately for £19.99.

👉 Click here to purchase brake sensors

🛡️ Custom Torque Arm System

This kit includes four stainless steel custom torque arms, designed by E Bike Power UK®.

You receive both styles so you can choose the best option depending on your bike’s dropout design:

• 2 x one-piece teardrop style torque arms
• 2 x two-piece torque arms

🛠️ Installation Tips

🔧 Make sure axle nuts and torque arms are fitted securely
🔧 Keep the motor cable away from the disc rotor
🔧 Check spoke tension after the first few rides
🔧 If the controller is placed inside the controller box, we recommend adding a few extra ventilation holes
🔧 Keep the motor phase cables away from the other cables, as they can get hot under heavy load
🔧 Ensure your frame and dropout spacing are suitable before ordering
🔧 Professional installation is recommended if you are not experienced with e-bike conversions

❓ FAQs

❓ Does this kit include brake sensors?
➡️ No. Brake sensors are optional and can be purchased separately for £19.99.

❓ Can I use throttle only?
➡️ Yes, throttle use is supported.

❓ What is the difference between M12 and M14?
➡️ The M12 version is for cassette setups using a Shimano HG style cassette body. The M14 version comes with a 7-speed freewheel pre-installed.

❓ Can this be limited?
➡️ Yes. The UKC1 Plus display limiter helps limit pedal assist to 25km/h / 15.5mph and throttle to around 6km/h.

🛡️ Warranty

• 3 months kit warranty
• 12 months battery warranty when purchased with a battery option

Warranty excludes misuse, water damage, wear and tear, incorrect installation, abuse, or unauthorised modifications.

⚖️ Legality

• This kit is supplied as a high-powered conversion kit.
• Out of the box, it is intended for off-road/private land use.
• The UKC1 Plus limiter can HELP limit the system to 25km/h / 15.5mph pedal assist.
• The rider is responsible for following local laws and regulations.

🚚 Shipping

• Orders are tested and dispatched as quickly as possible
• Fully tracked delivery
• Delivery usually takes 2–3 working days once dispatched
• Carriers may include DPD, UPS, Parcelforce, Royal Mail or similar

↩️ Returns

• 14-day return policy
• Item must be unused, complete, and returned in original packaging
• Buyer covers return shipping unless otherwise agreed

🤝 Need Help?

We’re here to support your DIY e-bike build. If you need help choosing the correct axle type, battery option, or setup, please contact us and we’ll be happy to help.
